1812 (146-784-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Hydraulic Lift Controls (1812) Parts Diagram

Garden Tractor

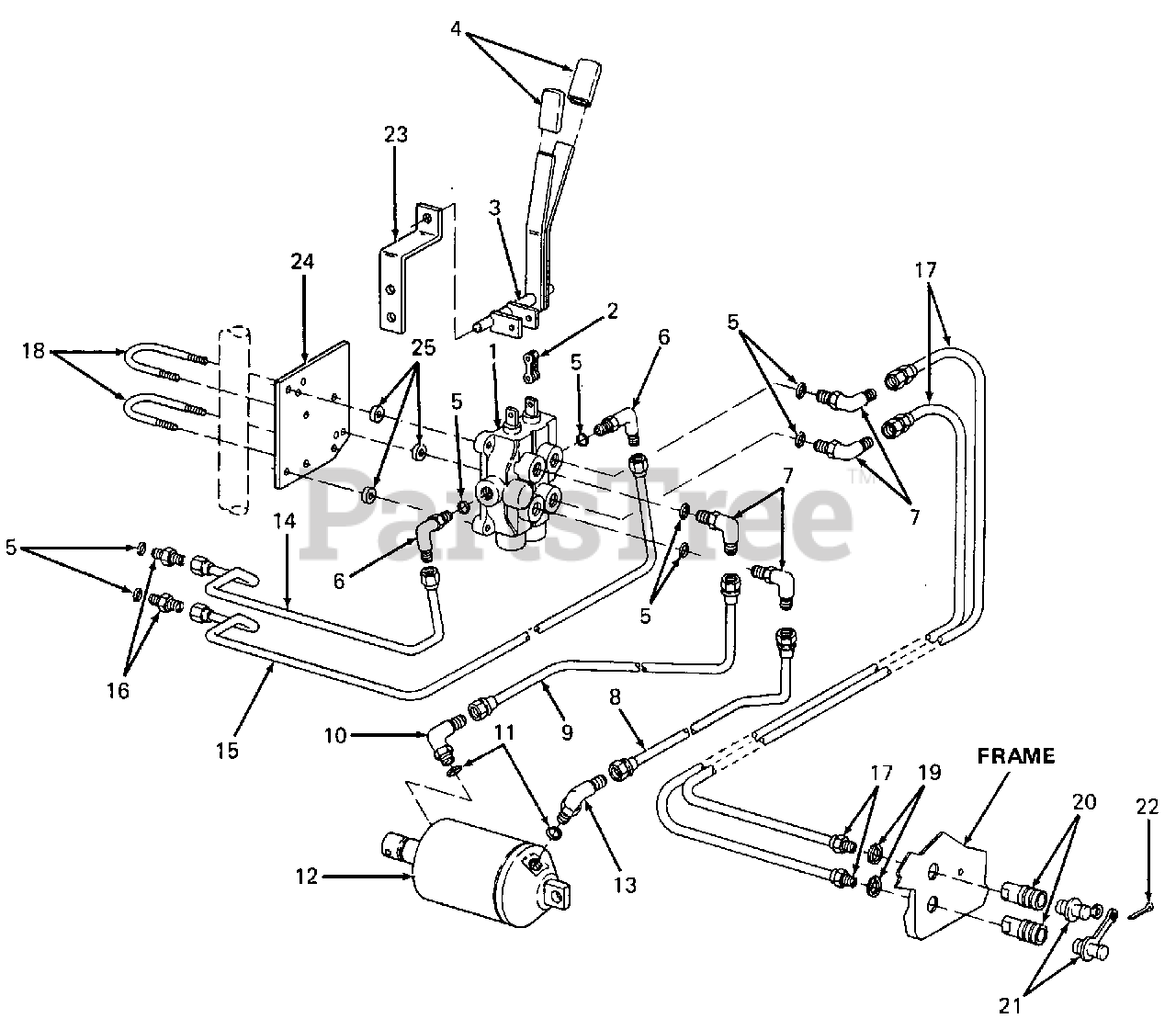

Hydraulic Lift Controls (1812) Parts Diagram

  • Title

1

Cub Cadet 717-3025

Valve Assy, 2 Spool Control

$

$

Not available

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.50 Lg

$5.49

$

In Stock, Qty 10

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

Cub Cadet 712-3434

Kit, Seal

$

$

Currently unavailable

Cub Cadet 759-3435

Kit, Spring Centering

$

$

Not available

2

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

3

Cub Cadet 703-0455

Handle Assy, 2 Spool Valve

$

$

Not available

4

Cub Cadet 720-3004

Grip

$

$

Currently unavailable

5

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0

6

Cub Cadet 727-3012

Elbow, 90 Degree Tube

$26.99

$

In Stock, only 4 left!

0

7

Cub Cadet 727-3003

Elbow, Reducer, 3/8 to 1/4

$

$

Not available

8

Cub Cadet 727-3031

Hose, Extending

$

$

Not available

9

Cub Cadet 727-3005

Hose, Retracting

$

$

Not available

10

Cub Cadet 727-3006

Elbow, 90 Degree w/O-Ring

$

$

Not available

11

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

12

Cub Cadet 717-3005

Cylinder, Hydraulic

Note: (For Component Parts see Breakdown under Hydraulic Cylinder)

$

$

Not available

13

Cub Cadet 727-3007

Elbow, 45 Degree w/O-Ring

$

$

Not available

14

Cub Cadet 727-3016

Tube Assy, Return

$121.99

$

In Stock, only 1 left!

0

15

Cub Cadet 727-3015

Tube Assy, Pressure

$

$

Not available

16

Cub Cadet 727-3002

Connector, 37 Degree Tube
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 727-3017

Hose, Pressure Supply

$

$

Not available

18

Cub Cadet 747-3016

Clamp

$

$

Not available

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

19

Cub Cadet 716-3014

Ring, External Retaining

$

$

Not available

20

Cub Cadet 727-3014

Coupling Body, Hydraulic

$106.99

$

In Stock, only 1 left!

0

21

Cub Cadet 731-3022

Plug, Protective

$20.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 714-3014

Pin, Cotter, 3/16 X 3/4 Lg

$

$

Not available

23

Cub Cadet 703-0186

Support, Valve Handler

$

$

Not available

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0

24

Cub Cadet 703-0170

Plate, Valve Support

$

$

Currently unavailable

25

Cub Cadet 750-3008

Spacer, .267 X .406 X .375 Lg

$

$

Currently unavailable
