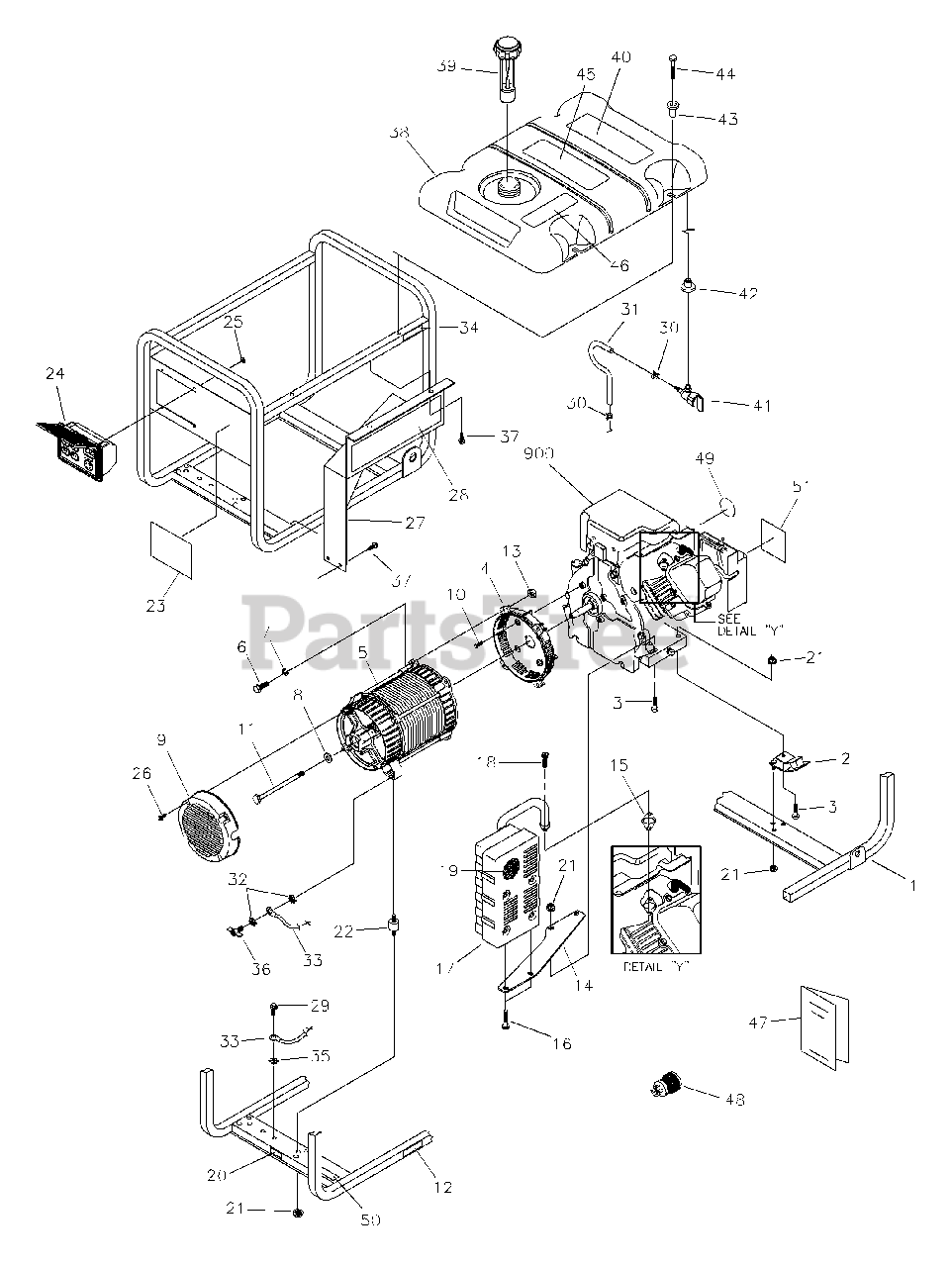

1812-1 - Craftsman 3,600 Watt Portable Generator Main Unit Parts Diagram

3,600 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton E192765GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70642GS

MOUNT, Vibration

$31.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 76222GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton ~NSP

ASSY, Alternator

Note: (See "Alternator")

$

$

Currently unavailable

6

Briggs & Stratton 43107GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 186347GS

COVER, Bearing Carrier
(Superseded to 195422GS)

$13.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 24823GS

SCREW

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692237

GASKET, Exhaust

$5.49

$

In Stock, only 3 left!

0

16

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 36781GS

SCREW

$1.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

22

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 191739GS

DECAL, Control Panel

$17.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 191743GS

ASSY, Control Panel
(Superseded to 191743AGS)

Note: (See "Control Panel")

$

$

Not available

25

Briggs & Stratton 189164GS

NUT

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton J191790GS

SHIELD, Heat
(Superseded to 191790GS)

$86.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 191753GS

DECAL, Heat Shield

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 48031CGS

CLAMP, Hose, Band
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

31

Briggs & Stratton 191795GS

HOSE, Fuel, Formed
(Superseded to 199358GS)

$

$

Not available

32

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 191435GS

DECAL, Fuel Shut Off

$8.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192751GS

ASSY, Tank, Fuel
(Superseded to 193645GS)

Note: (Includes Items 41 & 42)

$

$

Not available

39

Briggs & Stratton B4363GS

GAUGE, Fuel

$41.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

ASSY,Valve

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 192980GS

ASSY,Valve

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 188973GS

GROMMET, Tank

$

$

Not available

44

Briggs & Stratton 78831CGS

SCREW

$2.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 188333GS

DECAL, Fuel Level

$23.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 192788GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 43483GS

PLUG, 250V, 20Amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 191754GS

DECAL, Recoil

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B4901GS

DECAL, 1-800-4-MYHOME

$8.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 191740GS

DECAL, Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
