1812-1 - Craftsman 3,600 Watt Portable Generator Alternator Parts Diagram

3,600 Watt Portable Generator

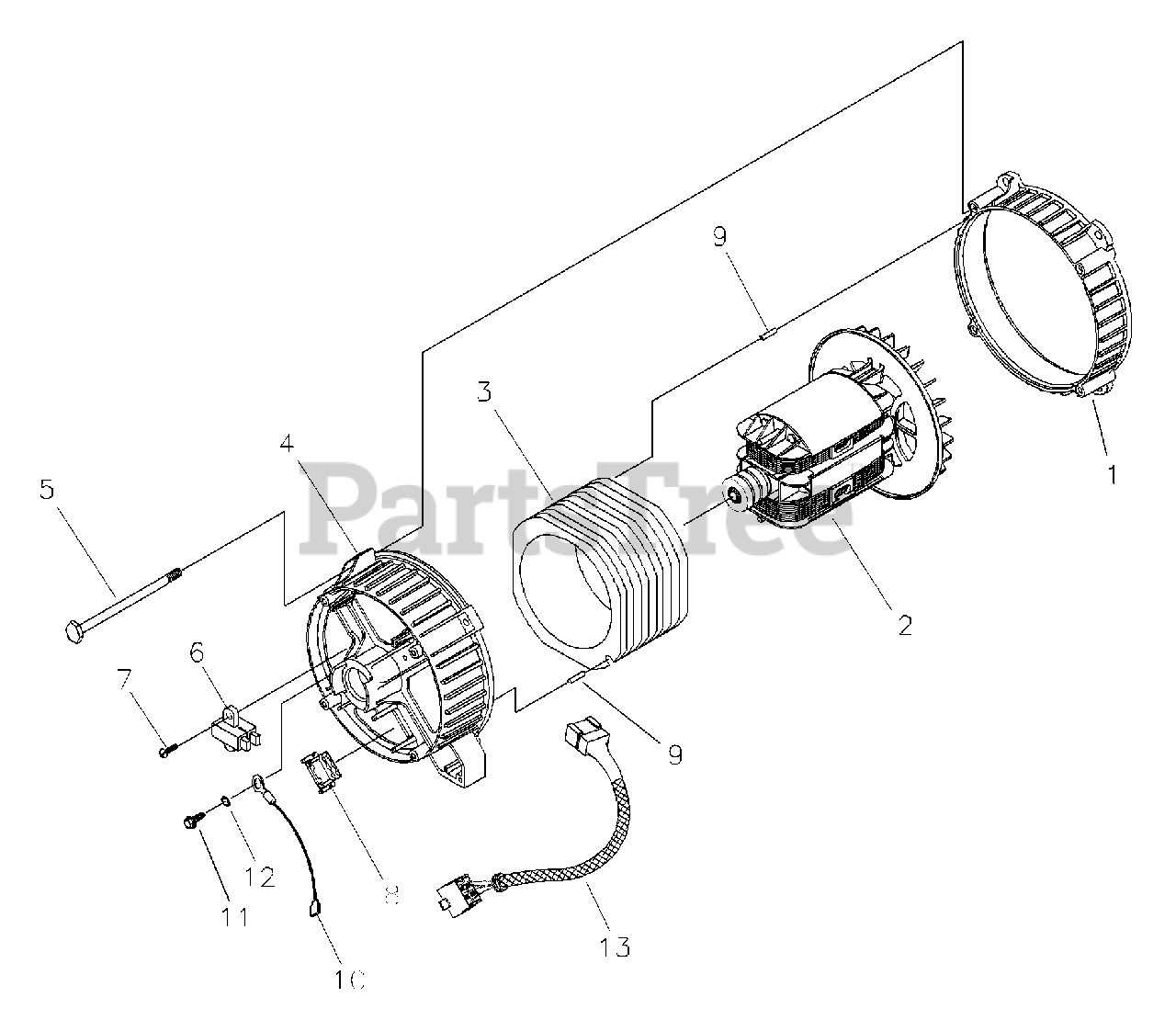

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 191685GS

ROTOR

$246.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 191686AGS

STATOR

$289.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 91825GS

ASSY, Holder, Rectifier/Brush

$54.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 66849GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 191051AGS

ASSY, Wire, Ground
(Superseded to 193428AGS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 190356GS

HARNESS, Wire, Power

$41.99

$

Usually ships in 2-12 days

0
