1811 (146-782-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Carburetor Parts Diagram

Garden Tractor

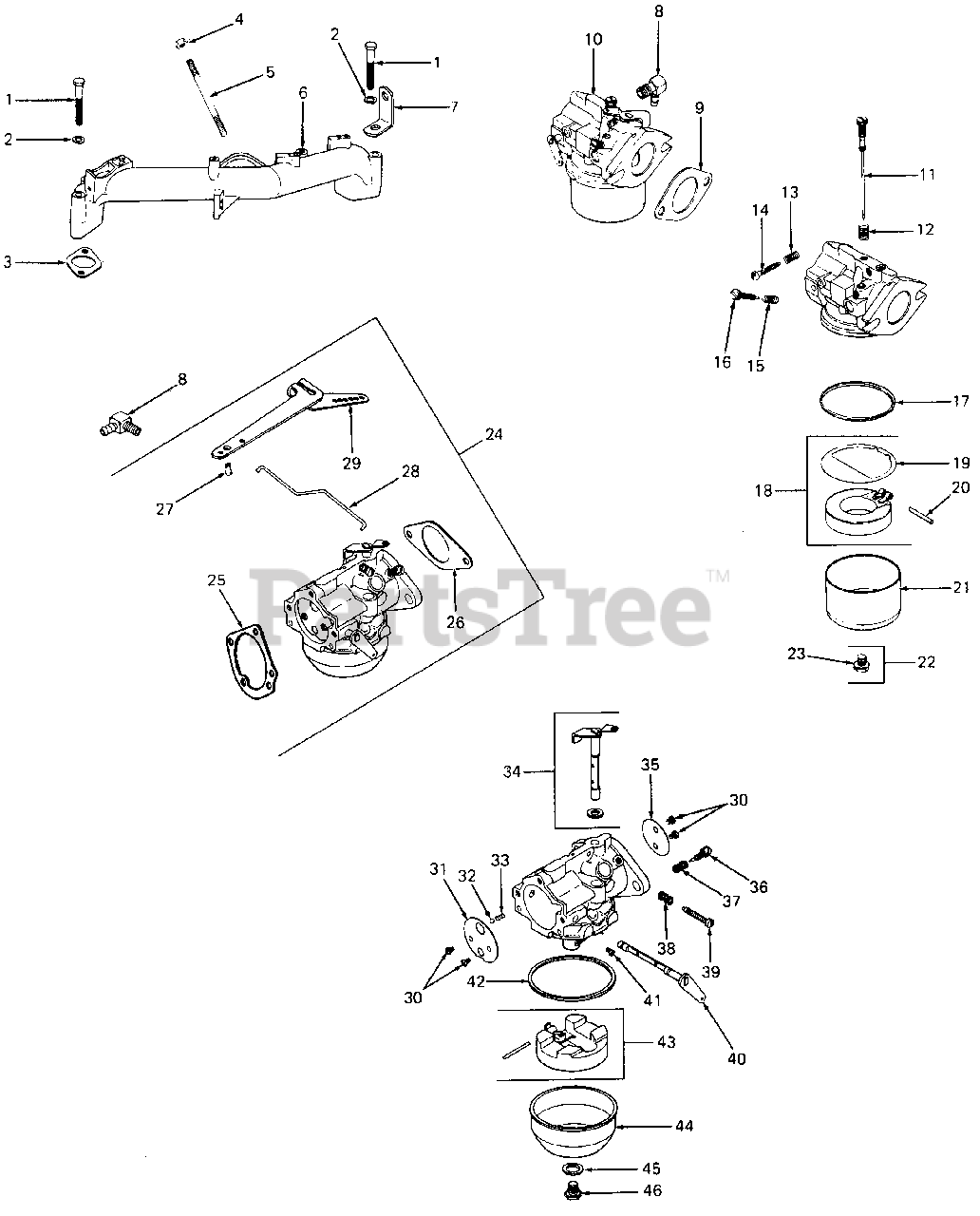

Carburetor Parts Diagram

  • Title

1

Cub Cadet KH-X-6-8

Screw, H.C., 5/16-18 X 2.75 Lg

$

$

Not available

2

Cub Cadet KH-X-21-1

Washer, Lock, 5/16

$

$

Not available

3

Cub Cadet KH-52-041-09

Gasket, Intake Manifold
(Superseded to KH-52-041-09-S)

$13.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-X-77-2

Nut, Hex Jam, 5/16-18

$

$

Not available

5

Cub Cadet KH-X-352-37

Stud, 5/16-18 X 1.0 Lg

$

$

Not available

6

Cub Cadet KH-52-164-10

Manifold, Intake

$

$

Not available

7

Cub Cadet KH-52-445-02

Strap, Lifting

$

$

Currently unavailable

8

Cub Cadet KH-25-155-02

Connector, 90

$

$

Not available

9

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-053-18

Carburetor Assembly

Note: (Includes Ref No. 11, 12, 13, 14, 15, 16, 17, 18, 20, 21 & 22)

$

$

Not available

11

Cub Cadet KH-52-103-01

Needle, Main Fuel

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

12

Cub Cadet KH-200383

Spring, Main Fuel

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

13

Cub Cadet KH-232555

Spring, Idle Speed

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

14

Cub Cadet KH-232556

Screw, Idle Speed Adj

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

15

Cub Cadet KH-200380

Spring, Idle Fuel

Note: (For Engines Built Before Serial No. 162950099-6)

$8.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-277210

Needle, Idle Fuel Adj

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

17

Cub Cadet KH-200375

Gasket, Bowl

Note: (For Engines Built Before Serial No. 162950099-6)

$7.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-25-757-03

Kit, Float
(Superseded to KH-25-757-03-S)

Note: (Includes Ref No. 19)

$

$

Not available

19

Cub Cadet KH-25-041-02

Gasket, Bowl Baffle

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

20

Cub Cadet KH-200376

Pin, Float Hinge

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

21

Cub Cadet KH-235448

Bowl, Fuel

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

22

Cub Cadet KH-47-100-06

Screw, Bowl Retainer
(Superseded to KH-47-100-06-S)

Note: (Includes Ref No. 23)

$

$

Not available

23

Cub Cadet KH-200372

Gasket, Bowl Retainer Screw

Note: (For Engines Built Before Serial No. 162950099-6)

$3.49

$

In Stock, only 1 left!

0

Cub Cadet KH-25-757-02

Kit, Carburetor Repair

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Not available

Cub Cadet KH-25-757-05

Kit, Throttle & Choke Repair

Note: (For Engines Built Before Serial No. 162950099-6)

$

$

Currently unavailable

24

Cub Cadet KH-52-853-04

Kit, Carburetor w/Linkage

Note: [Includes Ref No. 25, 26, 27 (Qty 2), 28, 29, 30 (Qty 4), 31 thru 46]

$

$

Not available

25

Cub Cadet KH-277069

Gasket, Elbow
(Superseded to KH-25-041-06)

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

26

Cub Cadet KH-271030

Gasket, Carburetor

Note: (For Engines Built After Serial No. 162950098-6)

$7.49

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-158-07

Bushing, Linkage Retaining
(Superseded to KH-25-158-11)

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

28

Cub Cadet KH-52-079-05

Linkage, Governor
(Superseded to KH-82-755-07)

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

29

Cub Cadet KH-52-186-06

Arm, Governor

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

30

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

31

Cub Cadet KH-25-146-03

Plate, Choke

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

32

Cub Cadet KH-25-194-01

Ball, Choke Friction

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

33

Cub Cadet KH-25-089-03

Spring, Choke Friction

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

34

Cub Cadet KH-52-144-16

Shaft, Throttle w/Lever & Seal

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

35

Cub Cadet KH-25-146-02

Plate, Throttle

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

36

Cub Cadet KH-25-368-01

Needle, Idle Fuel Adj

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

37

Cub Cadet KH-25-089-02

Spring, Idle Fuel

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

38

Cub Cadet KH-25-089-04

Spring, Idle Speed

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

39

Cub Cadet KH-25-086-26

Screw, Idle Speed Adj

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

40

Cub Cadet KH-52-090-13

Lever, Choke

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

41

Cub Cadet KH-52-337-03

Jet, Main

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

42

Cub Cadet KH-25-041-04

Gasket, Bowl

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

43

Cub Cadet KH-25-757-09

Kit, Float

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

44

Cub Cadet KH-25-104-01

Bowl, Fuel

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

45

Cub Cadet KH-25-041-03

Gasket, Bowl Retainer Screw

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

46

Cub Cadet KH-25-100-05

Screw, Bowl Retainer
(Superseded to KH-12-086-05)

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

Cub Cadet KH-25-757-08

Kit, Carburetor Repair
(Superseded to KH-25-757-11)

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available

Cub Cadet KH-52-755-74

Kit, High Altitude

Note: (For Engines Built After Serial No. 162950098-6)

$

$

Not available
