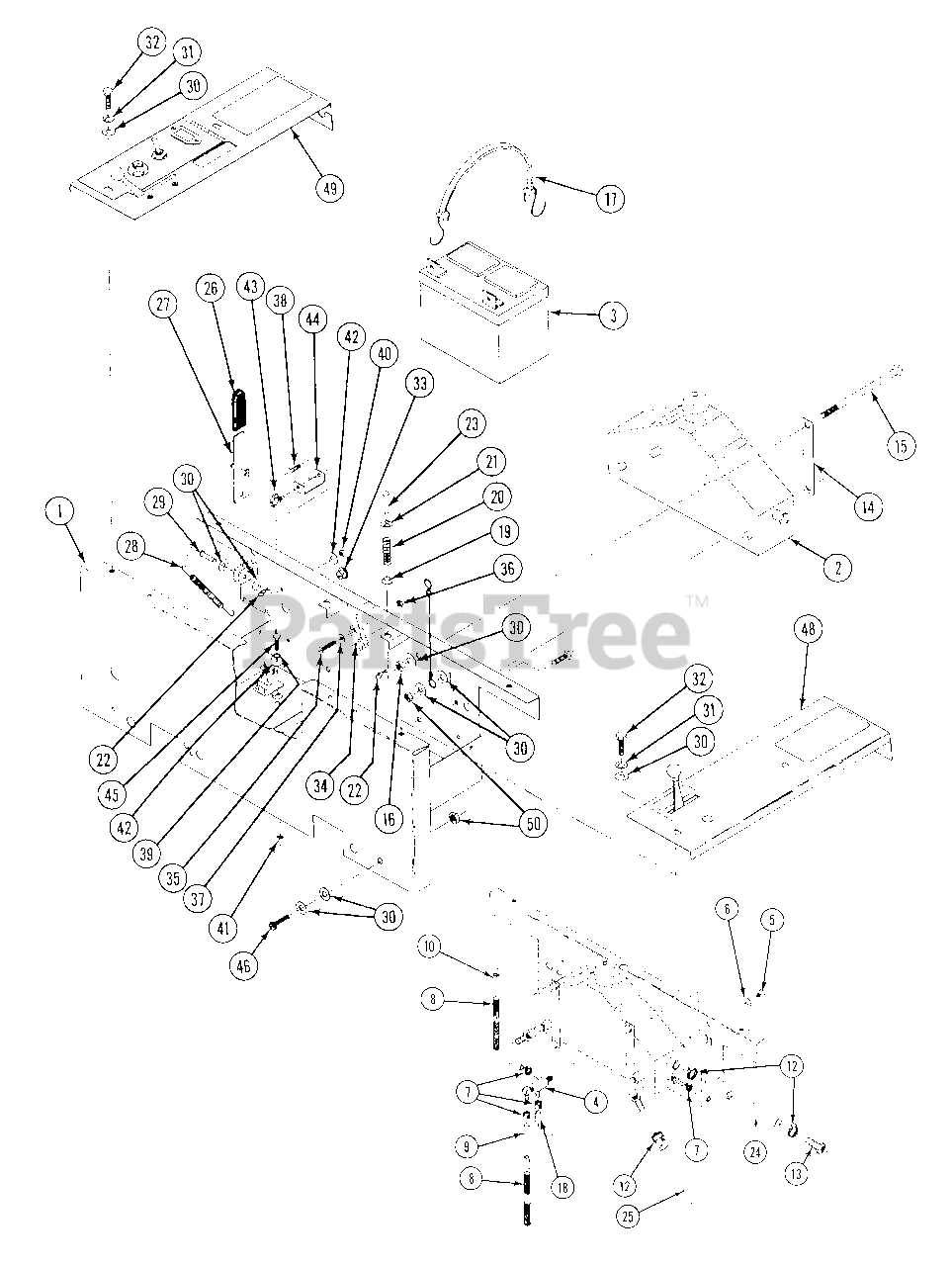

1810 - Snapper Zero-Turn Mower, Unistat Drive, 18hp Seat Support Assembly Parts, 1810 & 2010 Parts Diagram

Zero-Turn Mower, Unistat Drive, 18hp

Seat Support Assembly Parts, 1810 & 2010 Parts Diagram

  • Title
1

Snapper 7079686

SEAT SUPPORT WELDMENT

$

$

Currently unavailable

2

Snapper 7062253

OIL TANK ASSEMBLY

Note: Was 62011

$

$

Currently unavailable

3

Snapper 7079482

BATTERY

$

$

Not available

4

Snapper 7062030

BRAKE VALVE ASSEMBLY

$

$

Currently unavailable

5

Snapper 7091546

LOCKWASHER, INTERNAL STAR: 5/8
(Superseded to 1960547SM)

Note: Was 79940

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7090537

NUT, HX: 5/8-11
(Superseded to 703912)

Note: Was 79937

$3.49

$

In Stock, Qty 5

0

7

Snapper 7015617

CLAMP, HOSE: 1/4 ID

Note: Was 79569

$

$

Currently unavailable

8

Snapper 7062029

SHIELD, CABLE

$

$

Currently unavailable

9

Snapper 7062025

HOSE, RIGHT BRAKE
(Superseded to 7062025YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7062026

HOSE, LEFT BRAKE

$

$

Currently unavailable

?11

Snapper 7079958

HOSE BARB: 1/4 X 1/8 NPMT

$

$

Currently unavailable

12

Snapper 7079952

CLAMP, HOSE: 3/4 ID

$

$

Currently unavailable

13

Snapper 7079965

HOSE BARB, 3/4 X 7/8 SAE PORT

$

$

Currently unavailable

14

Snapper 7079976

OIL TANK STRAPS

$

$

Currently unavailable

15

Snapper 7079957

CAPSCREW, HX HD: 3/8-16 X 5 GR 5

$

$

Currently unavailable

16

Snapper 7091299

LOCKNUT, NYLOCK: 3/8-16
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7079956

STRAP, 12 IN. RUBBER TIE DOWN

$

$

Currently unavailable

18

Snapper 67027

HOSE, BRAKE RETURN

$

$

Currently unavailable

19

Snapper 79544

BUSHING, NYLON SEAT SPRING

$

$

Currently unavailable

20

Snapper 7079211

SPRING, COMPRESSION
(Superseded to 7079211YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7079093

BUSHING, STEEL SEAT SPRING

$

$

Currently unavailable

22

Snapper 7091593

RUE PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

23

Snapper 7029841

PIN, CLEVIS: 5/16 X 1-3/4
(Superseded to 704029)

Note: Was 79298

$4.49

$

In Stock, only 3 left!

0

24

Snapper 7062024

HOSE, UNISTAT RETURN

$

$

Currently unavailable

25

Snapper 7062023

HOSE, UNISTAT INLET

$

$

Currently unavailable

26

Snapper 7079970

GRIP, HANDLE

$

$

Currently unavailable

27

Snapper 7062016

BRAKE HANDLE WELDMENT

$

$

Currently unavailable

28

Snapper 7079233

SPRING, EXTENSION
(Superseded to 7079233YP)

$10.99

$

Usually ships in 2-12 days

0

29

Snapper 7073953

PIN, CLEVIS: 5/16 X 1
(Superseded to 7073953YP)

Note: Was 79322

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7090188

FLAT WASHER: 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7027168

CAPSCREW, HX HD: 5/16-18 X 1 GR 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0

33

Snapper 7079191

BUSHING, 7/8 PLASTIC

$

$

Not available

34

Snapper 7079194

SWITCH, SEAT

$

$

Not available

35

Snapper 7079281

SCREW, MACH: 6-32 X 1

$

$

Not available

36

Snapper 7079310

LOCKNUT, NYLOCK: 6-32

$

$

Currently unavailable

37

Snapper 7079278

LOCKWASHER, INTERNAL STAR: NO.6

$

$

Currently unavailable

38

Snapper 7077761

CAPSCREW, HX HD: 1/4-20 X 1 GR 5
(Superseded to 7077761YP)

Note: Was 79265

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7090052

LOCKWASHER, SPLT SPRNG: 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

40

Snapper 7091705

LOCKNUT, STOVER: 1/4-20
(Superseded to 704319)

Note: Was 79585

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7076978

LOCKNUT, NYLOCK: 1/4-20
(Superseded to 703232)

Note: Was 79260 (Now 76978 + 90372)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7091294

FLAT WASHER: 1/4
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7079854

ROSEBUD CLIP: 1/2
(Superseded to 7079854YP)

Note: Was 79962

$3.99

$

Usually ships in 2-12 days

0

44

Snapper 7062093

STAND-OFF

$

$

Currently unavailable

45

Snapper 7079584

CAPSCREW, HX HD: 1/4-20 X 3/4 GR 5
(Superseded to 7079584YP)

$6.49

$

Usually ships in 2-12 days

0

46

Snapper 7062161

CAPSCREW, SKT HD: 5/16-18 X 1 GR 8

$

$

Currently unavailable

?47

Snapper 7027168

CAPSCREW, HX HD: 5/16-18 X 1 GR 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0

48

FENDER CAP ASSEMBLY, LH

$

$

Not available

49

FENDER CAP ASSEMBLY, RH

$

$

Not available

50

Snapper 7091298

LOCKNUT, NYLOCK: 5/16-18
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0
