1810 - Snapper Zero-Turn Mower, Unistat Drive, 18hp Engine Assembly Parts Parts Diagram

Zero-Turn Mower, Unistat Drive, 18hp

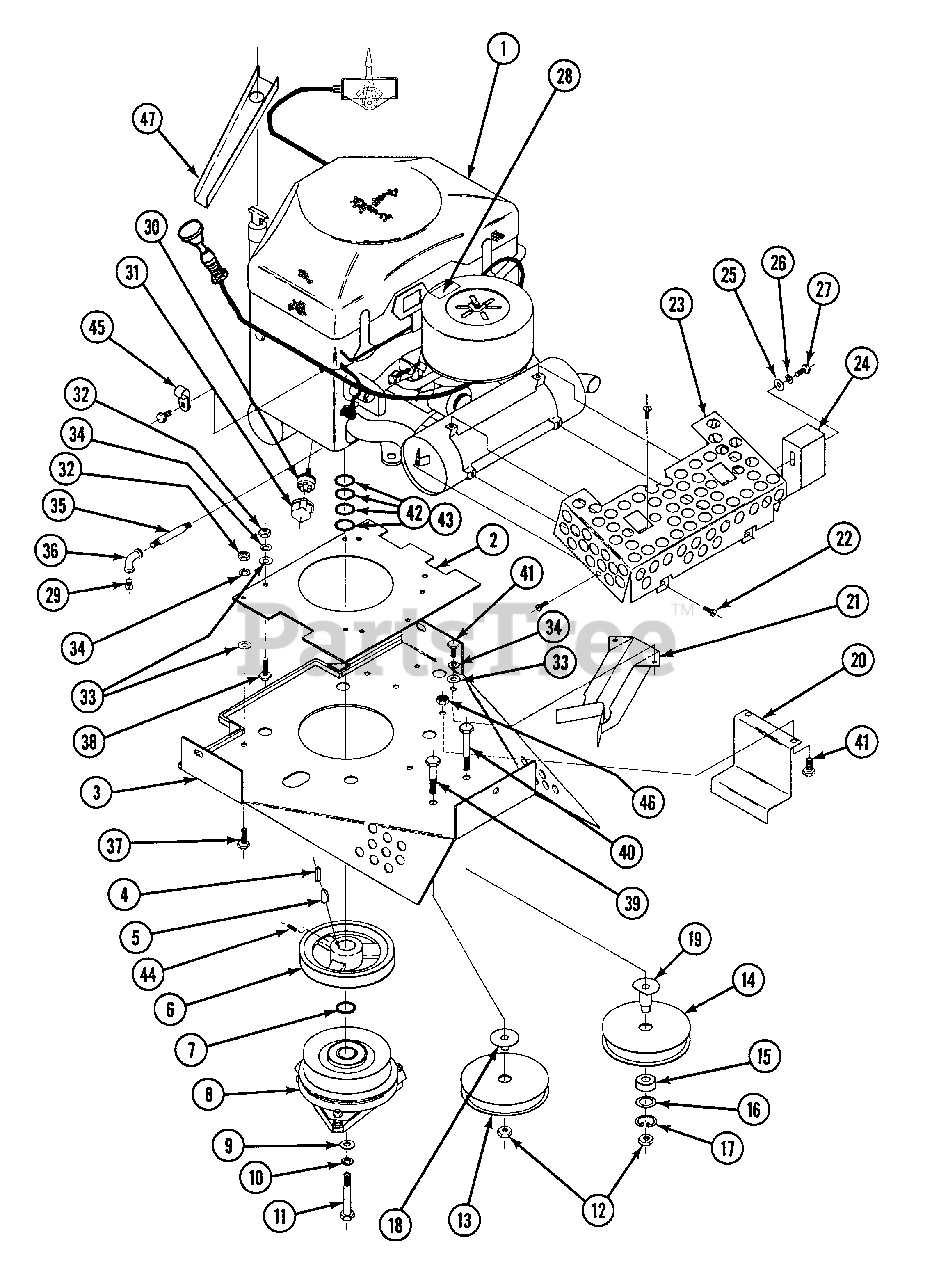

Engine Assembly Parts Parts Diagram

  • Title

1

* 18 HP KOHLER, VERICAL SHAFT ENGINE

$

$

Not available

1

* 20 HP KOHLER, VERICAL SHAFT ENGINE

$

$

Not available

2

Snapper 7062097

MOTOR MOUNT PLATE

$

$

Currently unavailable

3

Snapper 7062090

MOTOR MOUNT WELDMENT

$

$

Currently unavailable

4

Snapper 7079000

KEY, 1/4 SQ. X 1 (18HP ENGINE)
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 7091978

KEY, WOODRUFF: 1/4 X 3/4 (20HP ENGINE)
(Superseded to 7091978YP)

Note: Was 79159

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7079332

PULLEY, 1" BORE (18 HP ENGINE)
(Superseded to 7079332YP)

$92.99

$

In Stock, only 1 left!

0

6

Snapper 7079423

PULLEY, 1-1/8" BORE (20 HP ENGINE)
(Superseded to 7079423YP)

$98.99

$

Usually ships in 2-12 days

0

7

Snapper 7079020

WASHER, 1" I.D. X 1/8" THK

$

$

Not available

8

Snapper 7079446

CLUTCH, ELECTRIC, 1" BORE
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

9

Snapper 7079022

WASHER, 15/32 I.D.

$

$

Not available

10

Snapper 7091301

LOCKWASHER, SPLT SPRNG: 7/16
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7023388

CAPSCREW, HX HD: 7/16-20 X 3 GR. 5

Note: Was 79314

$

$

Not available

12

Snapper 7079277

LOCKNUT, NYLOCK: 1/2-13

$

$

Not available

13

Snapper 7062079

IDLER ASSEMBLY, FLAT
(Superseded to 7062079YP)

$125.99

$

Usually ships in 2-12 days

0

14

Snapper 7062174

FLAT IDLER 5" DIA.
(Superseded to 7062174YP)

$103.99

$

Usually ships in 2-12 days

0

15

Snapper 7062035

BEARING, NO.6203-2RS
(Superseded to 7062035YP)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7062051

WASHER, SEAL
(Superseded to 7062051YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7062036

SNAP RING, 40 MM BORE
(Superseded to 7062036YP)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7062080

BUSHING, SHORT
(Superseded to 7062080YP)

$25.99

$

Usually ships in 2-12 days

0

19

Snapper 7062092

BUSHING, LONG
(Superseded to 7062092YP)

$74.99

$

Usually ships in 2-12 days

0

20

Snapper 7079996

CLUTCH STOP BRACKET (EARLY MODELS)
(Superseded to 7079996YP)

$27.99

$

Usually ships in 2-12 days

0

21

Snapper 7062022

CLUTCH STOP BRACKET (LATE MODELS)
(Superseded to 7062022YP)

$66.99

$

Usually ships in 2-12 days

0

22

Snapper 7079424

SCREW, SHEET METAL: NO.8 X 1/2
(Superseded to 7079424YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7062052

MUFFLER GUARD

$

$

Not available

24

Snapper 7062091

DEFLECTOR WELDMENT

$

$

Currently unavailable

25

Snapper 7091294

FLAT WASHER, 1/4
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7090052

LOCKWASHER, SPLT SPRNG: 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7090072

CAPSCREW, HX HD: 1/4-20 X 5/8 GR 5
(Superseded to 001X38MA)

Note: Was 79405

$4.49

$

In Stock, Qty 10

0

28

Snapper 7079237

DECAL, "PERIODICALLY CLEAN"
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

29

Snapper 7079367

PLUG, PIPE: 3/8

$

$

Not available

30

Snapper 7079546

SWITCH, OIL PRESSURE DUAL CIRCUIT

$

$

Currently unavailable

31

Snapper 7079557

BOOT, OIL PRESSURE SWITCH

$

$

Currently unavailable

32

Snapper 7090789

NUT, HEX: 5/16-24 GRADE 5

Note: Was 79324

$

$

Not available

33

Snapper 7090188

FLAT WASHER: 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7062165

NIPPLE, 3/8 X 2-1/2 SCH. 40 BLACK

$

$

Currently unavailable

36

Snapper 7079210

ELBOW, 3/8, 90D, SCH. 40 CAST IRON

$

$

Currently unavailable

37

Snapper 7091609

CAPSCREW, HX HD: 5/16-24 X 1-1/2 GR 5
(Superseded to 7091609SM)

Note: Was 79325

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7090238

CAPSCREW, HX HD: 5/16-24 X 1 GR 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

39

Snapper 7090543

CAPSCREW, HX HD: 1/2-13 X 2 GR 5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

40

Snapper 7062162

CAPSCREW, HX HD: 1/2-13 X 2-3/4 GR 5

$

$

Currently unavailable

41

Snapper 7076934

CAPSCREW, HX HD: 5/16-18 X 3/4 GR 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7079020

WASHER, 1" I.D. (18 HP ENGINE)

$

$

Not available

43

Snapper 7079426

WASHER, 1-1/8" I.D. (20 HP ENGINE)

$

$

Currently unavailable

44

Snapper 7079823

SETSCREW, SKT HD: 5/16-18 X 3/8
(Superseded to 7079823YP)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7062187

NYLON LOOP CLAMP, 1/2

$

$

Currently unavailable

46

Snapper 7091298

LOCKNUT, NYLOCK: 5/16-18
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7062230

OIL DEFLECTOR

$

$

Currently unavailable

Snapper 7079934

DRIVE BELT, A128 WITH KEVLAR CORD
(Superseded to 7079934YP)

$79.99

$

Usually ships in 2-12 days

0
