1810 (146-682-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Front Axle & Connections Parts Diagram

Garden Tractor

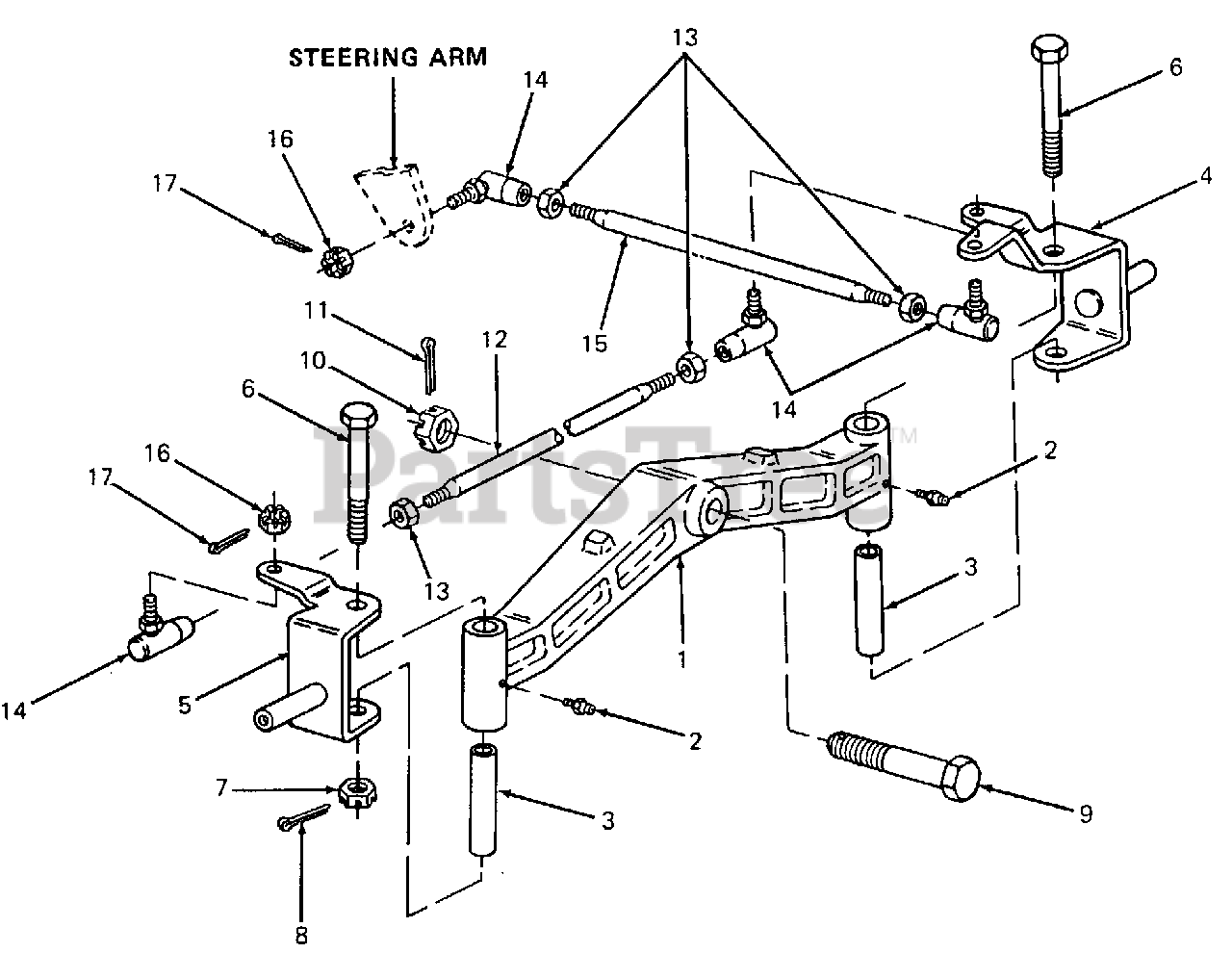

Front Axle & Connections Parts Diagram

  • Title

1

Cub Cadet 759-3270

Axle, Front

Note: [Includes Ref No. 2 (Qty 3)]

Variations

Cub Cadet 759-3270-0637

FRONT AXLE - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 750-3002

Spacer, Steering Knuckle
(Superseded to 950-3002)

$

$

Not available

4

Cub Cadet 703-0083

Knuckle, Steering - LH
(Superseded to 703-0083-0637)

Variations

Cub Cadet 703-0083-0637

Knuckle Assembly, LH - POWDER BLACK (0637)

$154.99

$

Usually ships in 3-6 days

0

$154.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-0085

Knuckle, Steering - RH
(Superseded to 703-0085-0637)

Variations

Cub Cadet 703-0085-0637

Knuckle Assembly, RH - POWDER BLACK (0637)

$153.99

$

Usually ships in 3-6 days

0

$153.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3020

Bolt, Hex, 1/2-20 X 5.25 Lg GR5

$

$

Not available

7

Cub Cadet 712-3012

Nut, Hex Castle, 1/2-20 GR5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-0111

Pin, Cotter, 3/32 Dia X 1.0 Lg

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 710-3019

Bolt, Hex, 3/4-10 X 5.25 Lg GR5

$

$

Not available

10

Cub Cadet 712-3011

Nut, Hex Castle, 3/4-10 GR5

$

$

Not available

11

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia X 1.5 Lg
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-3018

Rod, Tie

$

$

Not available

13

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

14

Cub Cadet 723-3000

Ball Joint
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-3000

Link, Drag

$

$

Not available

16

Cub Cadet 712-3002

Nut, Hex Castle, 3/8-24 GR5
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

17

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0
