1810-0 - Briggs & Stratton 10kW Home Standby Generator Enclosure Parts Diagram

10kW Home Standby Generator

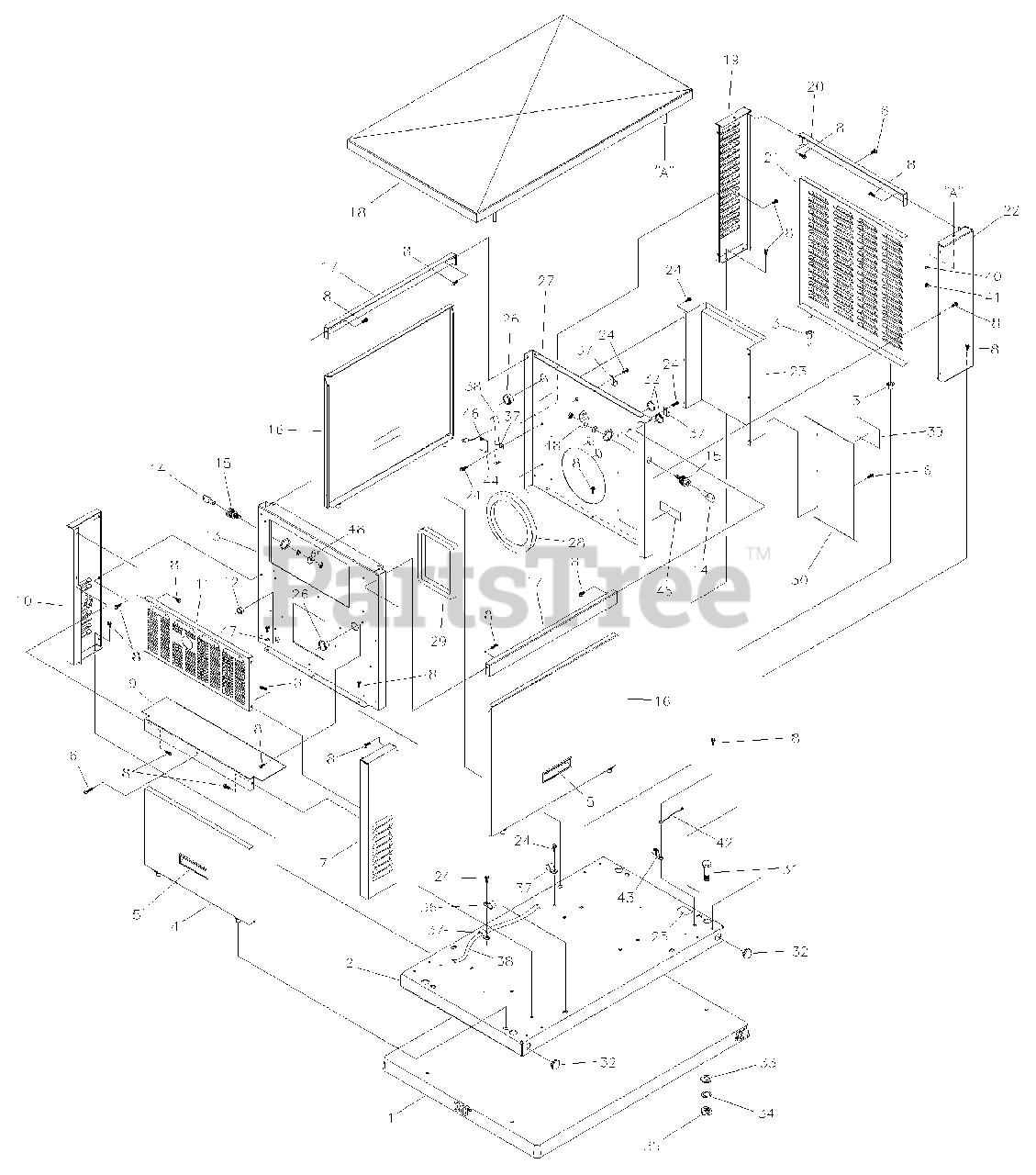

Enclosure Parts Diagram

  • Title

1

Briggs & Stratton 186564GS

PAD, Foundation Base w/ Holes
(Superseded to 186104GS)

$278.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton H185972GS

BASE, Mounting

$566.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 186061GS

BUSHING, Stem

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191410GS

ASSY, Door,Alt., SRV

Note: (Includes 2 of item 3, 1 of item 5)

$154.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186049GS

HANDLE, Door, Recessed Pull

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 189792GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191408GS

ASSY, Corner, RH, SRV

Note: (Incl. insul.)

$224.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4300GS

BOLT, Swag
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

9

Briggs & Stratton H185968GS

BAFFLE, Horizontal,Alt. Side

$178.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 191409GS

ASSY, Corner, LH, SRV

Note: (Incl. insul.)

$201.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton H185965GS

PANEL, Muffler Air Out

$224.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186582GS

BUSHING, Snap

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton H185966GS

BULKHEAD,Alternator Side

$154.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B5053GS

KEY, Lock

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 186172GS

ASSY, Lock/Doors

$102.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 191406GS

ASSY, Door, SRV

Note: (Includes insulation, 2 of item 3, 1 of item 5)

$111.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton H186046GS

RAIL, Support Upper Front/Back

$103.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton H187234GS

ROOF, with Insulation

$387.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton H185963GS

CORNER, Engine Air Inlet Right

$217.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton H186047GS

RAIL, Support Upper Engine Side

$89.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton H185969GS

DOOR, Engine Air Inlet

$267.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton H185964GS

CORNER, Engine, Left Side

$193.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton H187235GS

BAFFLE, with Insulation

$59.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton H185967GS

BULKHEAD, Engine Side

$341.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186065GS

SEAL, Foam Engine Air Inlet
(Superseded to 770801)

$122.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4889GS

SEAL, Foam Alternator Air Inlet

$

$

Not available

30

Briggs & Stratton H186760GS

COVER, Control Panel

$116.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 29745GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 185976GS

PLUG, Hole

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 22131GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22241GS

NUT

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 187060GS

CLAMP, Nylon
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 186202GS

CLAMP, Nylon

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 186277GS

HARNESS,Wire, Engine

$287.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B5082GS

DECAL, Danger High Voltage
(Superseded to B5082AGS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186790AGS

WIRE, Ground,To Control Panel

$17.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186345GS

LUG, Ground

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 186642GS

DECAL, LP/Natural Gas
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 186827GS

DECAL,Terminal Strip
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 28739AGS

WRAP,Tie

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 26850GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 186174GS

CAMBAR, Lock

$23.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 187008GS

KIT, Door Seal

Note: Part Not Illustrated

$29.99

$

Usually ships in 2-12 days

0
