181-304E033 - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Ace Hardware) Parts Parts Diagram

Walk-Behind Mower, Electric

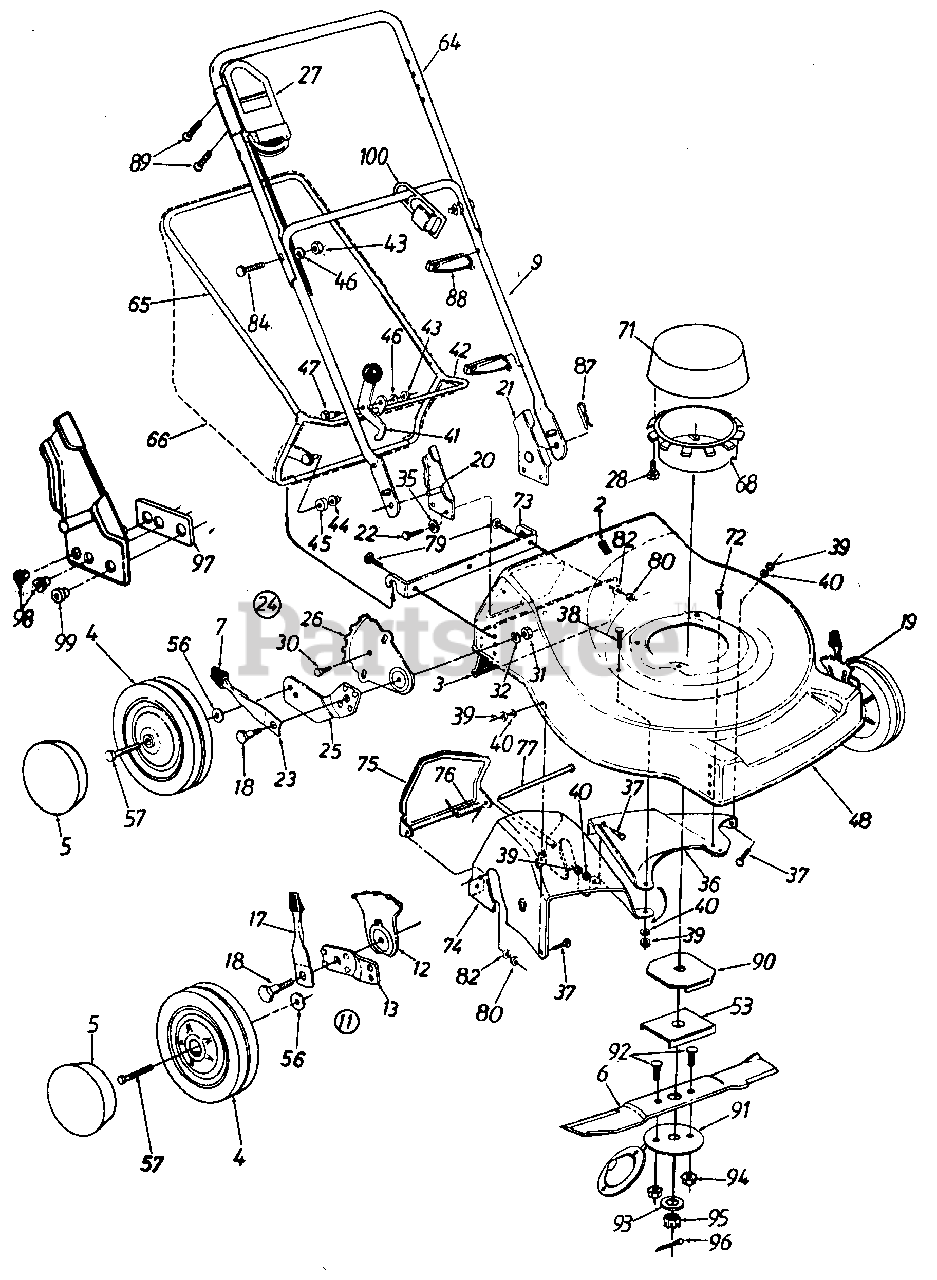

Parts Parts Diagram

  • Title

MTD 747-0748

Control Handle Ass'y.

$

$

Not available

2

MTD 731-0564

Plug

$

$

Not available

3

MTD 731-0665

Rear Flap Ass'y.

$

$

Not available

4

MTD 734-1697

Wheel Ass'y. Comp.

$

$

Not available

5

MTD 720-0251

Hub Cap

$

$

Not available

6

MTD 742-0553

20" Blade

$

$

Not available

7

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

9

MTD 749-0504C

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

11

MTD 14578

Front Height Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

12

MTD 15261A

Front Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

13

MTD 15262B

Front Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

17

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

18

MTD 738-0507B

Shld. Bolt .50" Dia. x .375

$4.49

$

In Stock, only 4 left!

0

19

MTD 14579

Front Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

20

MTD 818-60008

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

21

MTD 818-60009

Handle Brkt. Ass'y.-L.H.

$

$

Not available

22

MTD 710-0588

Hex Wash. Hd. Tap Scr. 1/4-20 x 1 " Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

23

MTD 732-0417A

Spring Lever

$

$

Not available

24

MTD 16106

Rear Height Adj. Ass'y.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y.-L.H.

Note: (Not Shown)

$

$

Not available

25

MTD 14765

Rear Pivot Bar-R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Rear Pivot Bar-L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

26

MTD 14764C

Rear Index Plate

$8.49

$

Usually ships in 3-6 days

0

27

MTD 818-60000

Cord and Switch Ass'y.- Complete

$

$

Not available

28

MTD 710-1128

Screw #10-16 x .75" Lg.

$

$

Not available

30

MTD 710-0892

Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

31

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

32

MTD 736-0356

Bell-Wash. 3/8" I.D.
(Superseded to 936-0356)

$

$

Not available

35

MTD 736-3020

Fl-Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

36

MTD 13405A

Rear Chute Baffle-L.H.

$

$

Not available

37

MTD 710-0167

Carr. Bolt 1/4-20 x 50n Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

38

MTD 710-0206

Hex Bolt 1/4-20 x .88n Lg.

$4.49

$

Usually ships in 3-6 days

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

40

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 13435

Cam Lever Grip Ass'y.

$

$

Not available

42

MTD 13924

Grass Catcher Lower Frame

$

$

Not available

43

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

45

MTD 731-0430

Plastic Roller

$

$

Not available

46

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 738-0140

Shld. Bolt .437" Dia. x .180"

$5.99

$

In Stock, Qty 15

0

48

MTD 16108

20" Deck Ass'y.

Variations

MTD 16108-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16108-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

53

MTD 731-1218

Blade Adapter Insulator

$

$

Not available

56

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

57

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

64

MTD 749-0831

Upper Handle

$

$

Currently unavailable

65

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

66

MTD 764-0170B

Grass Bag w/Flip Top

$

$

Not available

MTD 764-0171B

Grass Bag w/o Flip Top
(Superseded to 964-0171B)

$

$

Not available

68

MTD 731-1215

Motor Cover Bottom

$

$

Not available

71

MTD 731-1214

Motor Cover Top

$

$

Not available

72

MTD 710-0642

Hex Self-Tap Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

73

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

74

MTD 14235

Rear Chute Baffle-R.H.

$

$

Not available

75

MTD 13407

Chute Door

$

$

Not available

76

MTD 732-0346

Torsion Spring

$

$

Not available

77

MTD 738-0386

Hinge Pin

$

$

Not available

79

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

80

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

82

MTD 736-0211

Fl-Wash. .281" I.D. x 1.25"

$6.99

$

In Stock, Qty 7

0

84

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

87

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

88

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

89

MTD 710-1150

Self Tap Scr. #7 x 1" Lg.

$

$

Not available

90

MTD 748-0343

Blade Adapter

$

$

Not available

91

MTD 731-1217

Blade Insulator

$

$

Not available

92

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 736-0462

Fl-Wash. .516" I.D. x 1.5" (H.T.)

$

$

Not available

94

MTD 712-0437

Hex Keps Nut 5/16-18 Thd.

$

$

Not available

95

MTD 712-0401

Slotted Hex Nut 1/2-20 Thd.

$

$

Currently unavailable

96

MTD 714-0228

Cotter Pin 1" Lg.

$

$

Not available

97

MTD 731-1251

Insulator Strip

$

$

Currently unavailable

98

MTD 731-1252

Insulator Shield

$

$

Currently unavailable

99

MTD 731-1219

Insulafor Shield

$

$

Not available

100

MTD 725-0899

Cord Restraint

$

$

Not available
