181-304E033 - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Ace Hardware) Parts Parts Diagram

Walk-Behind Mower, Electric

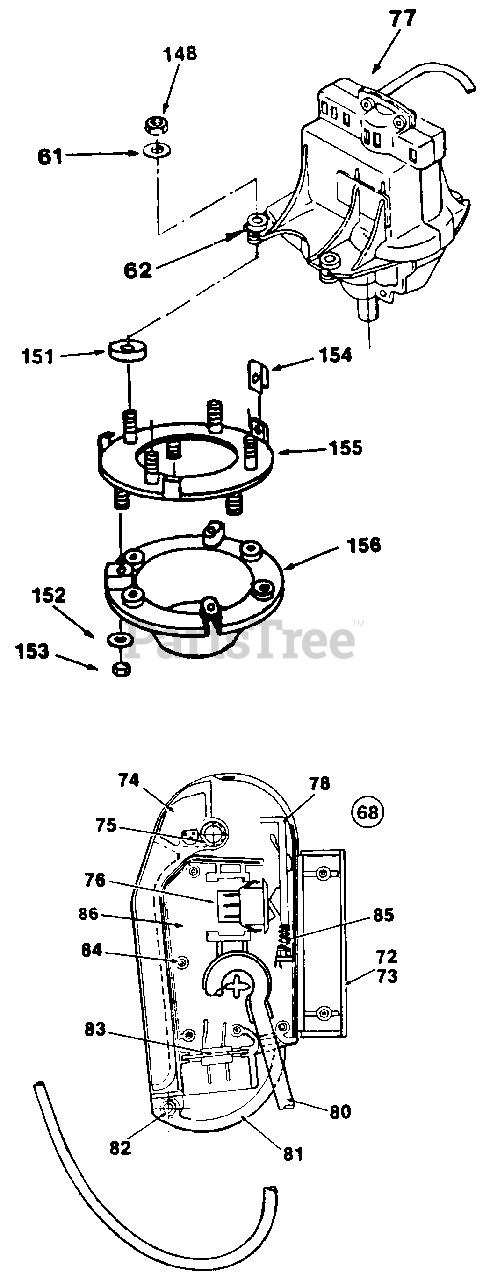

Parts Parts Diagram

  • Title

61

MTD 736-3090

Fl-Wash. .26" I.D. x .72" O.D.

$6.99

$

In Stock, Qty 11

0

62

MTD 731-1216

Motor Housing Insulator

$

$

Not available

68

MTD 818-60000

Cord & Switch Box (Complete)

$

$

Not available

72

MTD 731-1208

Housing-Upper Half

$

$

Not available

73

MTD 731-1209

Housing-Lower Half

Note: (Not Shown)

$

$

Not available

74

MTD 731-1210

Handle-Switch Actuator

$

$

Not available

75

MTD 732-0679

Spring-Switch Handle

$

$

Not available

76

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

77

MTD 818-60153

Motor & Switch Ass'y.

$

$

Currently unavailable

78

MTD 731-1198

Latch

$

$

Not available

80

MTD 818-60001

Cord Ass'y.

Note: (Incl. Ref. #83)

$

$

Not available

81

MTD 731-1211

Retainer Plug

$

$

Not available

82

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

83

MTD 729-0304

Plug Ass'y.
(Superseded to 929-0304)

$

$

Not available

84

MTD 710-1147

Screw #6-32 x .5" Lg.

$

$

Not available

85

MTD 732-0681

Latch Spring

$

$

Not available

86

MTD 818-60002

Jumper Wire

Note: (Not Shown)

$

$

Currently unavailable

148

MTD 712-0324

Nylon Top L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

151

MTD 731-1175

Spacer

$

$

Not available

152

MTD 736-0461

Fl-Wash. 5/16" I.D. x .75" O.D.

$

$

Not available

153

MTD 712-0429

Nylon Top L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

154

MTD 712-0410

Clip

$

$

Not available

155

MTD 818-60155

Motor Mount Plate Ass'y.

$

$

Currently unavailable

156

MTD 731-1177

Motor Shield

$

$

Currently unavailable
