181-222A000 - MTD Walk-Behind Mower, Electric (1991) Motor & Switch Assembly Parts Diagram

Walk-Behind Mower, Electric

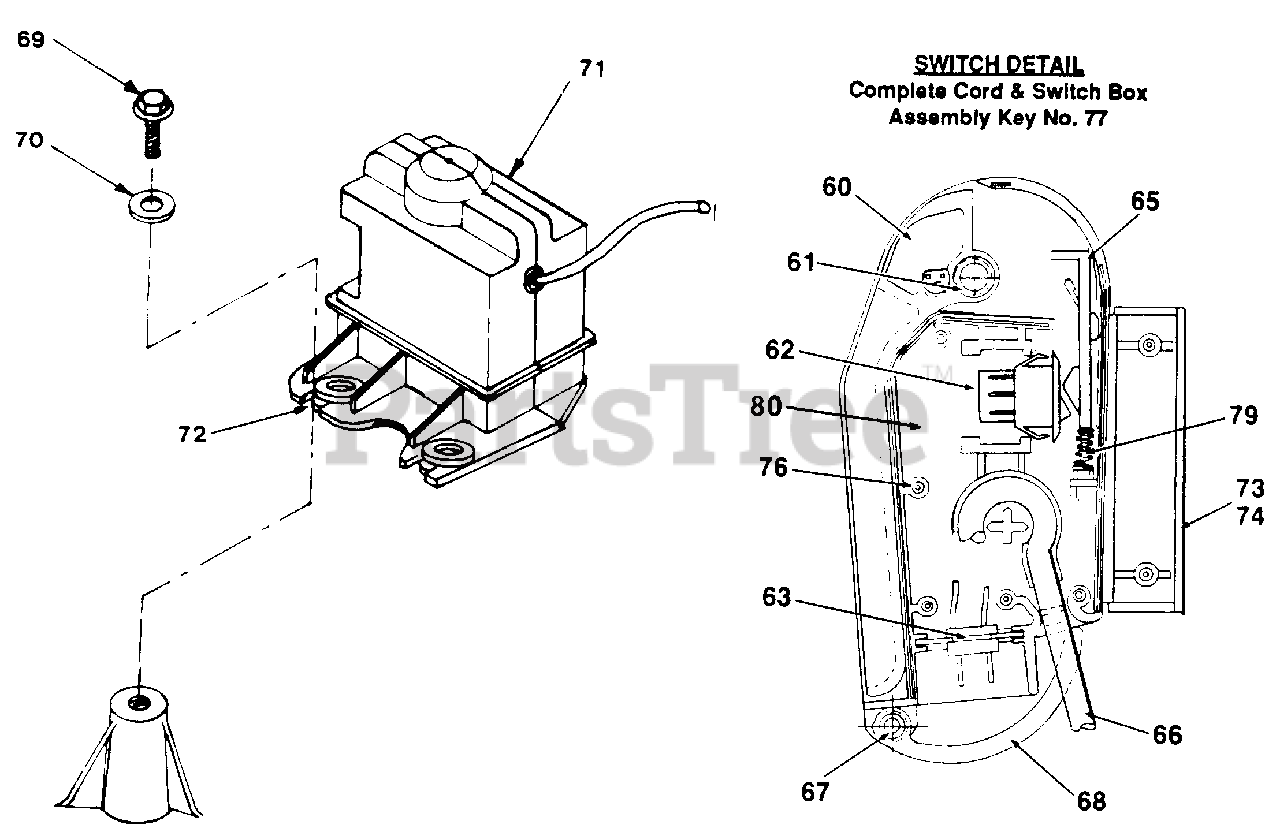

Motor & Switch Assembly Parts Diagram

  • Title
60

MTD 731-1210

Handle-Switch

$

$

Not available

61

MTD 732-0679

Spring

$

$

Not available

62

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

63

MTD 729-0304

Plug Assembly
(Superseded to 929-0304)

$

$

Not available

65

MTD 731-1198

Latch

$

$

Not available

66

MTD 818-60001

Cord Assy.

Note: (Includes #63)

$

$

Not available

67

MTD 732-0680

Spring - Plug Ret.
(Superseded to 932-0680)

$

$

Not available

68

MTD 731-1211

Plug Retainer

$

$

Not available

69

MTD 710-1108

Bolt, Motor Mount

$

$

Not available

70

MTD 736-3090

Washer-1/4" ID x 3/4" OD x 1/16" Thick

$6.99

$

In Stock, Qty 11

0

71

MTD 818-60121

Motor & Switch Assy. (Complete)

$

$

Currently unavailable

72

MTD 731-1216

Insulator, Motor Housing

Note: (Part ot Ref. No. 56)

$

$

Not available

73

MTD 731-1208

Housing - Upper Half

$

$

Not available

74

MTD 731-1209

Housing - Lower Han

Note: (Not Shown)

$

$

Not available

76

MTD 710-1147

Screw - Switch Box

Note: (Not Shown)

$

$

Not available

MTD 818-60000

Cord & Switch Box (Complete)

$

$

Not available

79

MTD 732-0681

Latch Spring

$

$

Not available

80

MTD 818-60002

Jumper Wire

Note: (Not Shown)

$

$

Currently unavailable
