181-014J000 - MTD Walk-Behind Mower, Electric (1991) Parts Parts Diagram

Walk-Behind Mower, Electric

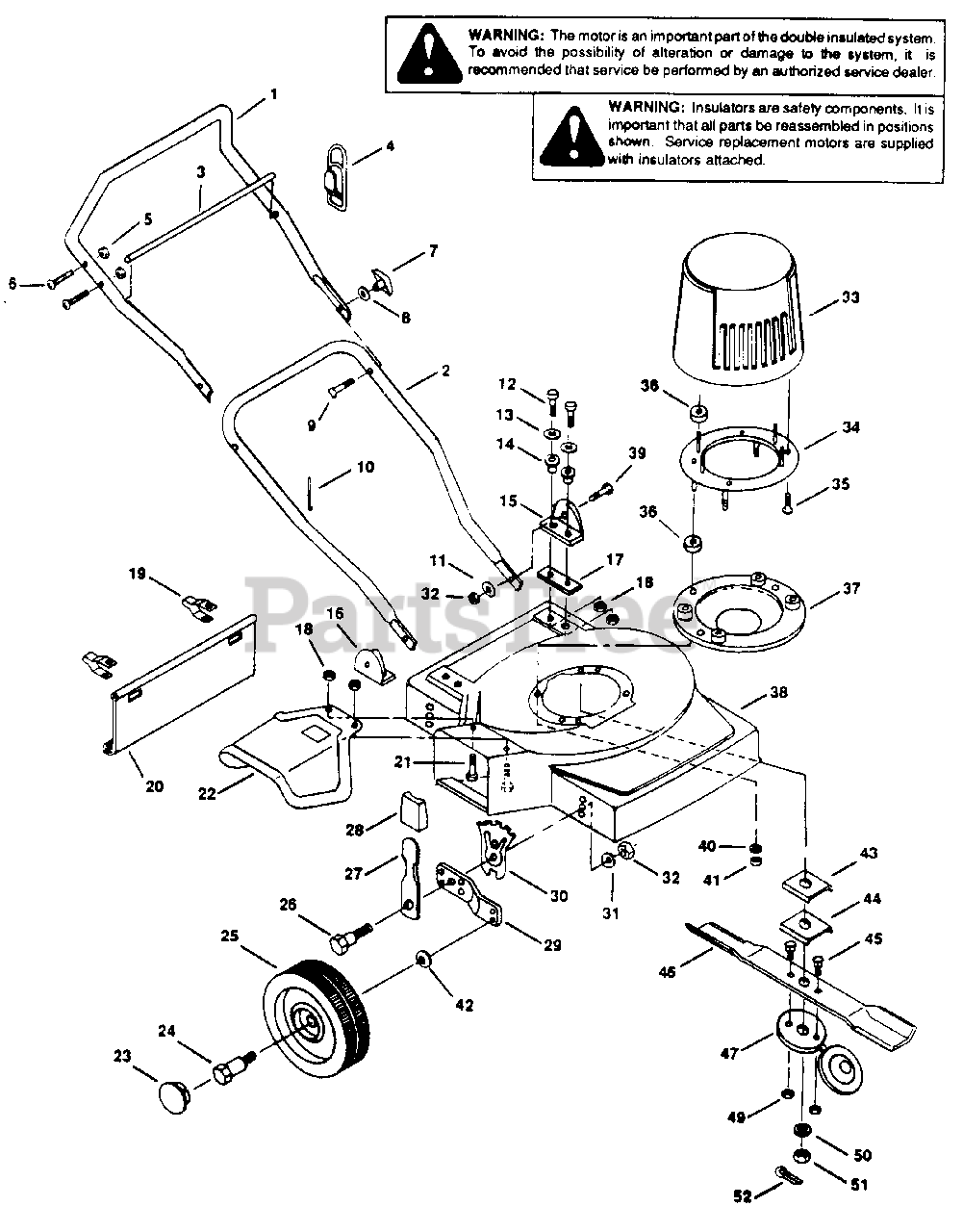

Parts Parts Diagram

  • Title

1

MTD 749-0876

Upper Handle

$

$

Not available

2

MTD 749-0845

Lower Handle

$

$

Not available

3

MTD 747-0795

Cord Control Rod

$

$

Not available

4

MTD 725-1590

Cord Minder

$

$

Not available

5

MTD 712-0161

Lock Nut #10-24

$4.49

$

In Stock, only 1 left!

0

6

MTD 710-1171

Mach. Screw #10-24 x 1-1/8"

$

$

Not available

7

MTD 720-0241

Knob- Handle
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

8

MTD 736-0486

Curved Washer 5/16" I.D.

$

$

Not available

9

MTD 710-1152

Saddle Bolt 5/16-18 x 2

$

$

Not available

10

MTD 726-0300

Plastic Tie

$

$

Currently unavailable

11

MTD 736-0485

Flat Washer 3/8" I.D

$

$

Currently unavailable

12

MTD 710-0206

Hex Bolt 1/4-20 x 7/8"

$4.49

$

Usually ships in 3-6 days

0

13

MTD 736-3090

Flat Washer 1/4" I D.

$6.99

$

In Stock, only 1 left!

0

14

MTD 731-1219

Insulator - Handle Bracket

$

$

Not available

15

MTD 782-3019

LH Handle Bracket

$

$

Currently unavailable

16

MTD 782-3018

RH Hardle Bracket

$

$

Not available

17

MTD 721-0278

Insulator Strip

$

$

Not available

18

MTD 712-0324

Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

19

MTD 17098

Clip - Trail Shield
(Superseded to 17098P)

$

$

Not available

20

MTD 731-1027

Trail Shield

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x 3/4"

$4.49

$

In Stock, Qty 20+

0

22

MTD 731-1238

Safety Chute Guard

$

$

Currently unavailable

23

MTD 720-0251

Hub Cap

$

$

Not available

24

MTD 738-0102

Wheel Bolt

$9.99

$

In Stock, Qty 10

0

25

MTD 634-0011

Front Wheel - 6"

$

$

Not available

MTD 634-0012

Rear Wheel - 7"

$

$

Not available

26

MTD 738-0507B

Pivot Bolt - Adjuster

$4.49

$

In Stock, only 4 left!

0

27

MTD 732-0404

Lever- Adjuster
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 720-0190

Knob - Adjuster
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

29

MTD 15262B

Pivot Arm - Adjuster

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

30

MTD 15261A

Plate - Height Adjuster
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

31

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

Note: (Larger)

$

$

Not available

32

MTD 712-0430

Hex Nut 3/8-16 Thd.
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

33

MTD 731-1239

Motor Cover (Gray)

$

$

Not available

34

MTD 682-9000

Plate Assembly

$

$

Currently unavailable

35

MTD 710-1128

Tapping Screw #10 x 3/4

$

$

Not available

36

MTD 731-1175

Spacer - Motor Mounting

$

$

Not available

37

MTD 731-1174

Shield

$

$

Currently unavailable

38

MTD 682-0004

Deck Ass'y. -16" Steel

$

$

Currently unavailable

39

MTD 710-0216

Hex Bolt 3/8-16 x 3/4"

$4.49

$

In Stock, Qty 16

0

40

MTD 736-0461

Flat Washer 5/16" I.D.

$

$

Not available

41

MTD 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0105

Bell Washer (Small)

$4.49

$

In Stock, Qty 20+

0

43

MTD 748-0343

Adapter - Blade Mounting

$

$

Not available

44

MTD 731-1218

Insulator - Blade Adapter

$

$

Not available

45

MTD 710-0451

Carriage Bolt 5/16-18 x 3/4

$4.49

$

In Stock, Qty 20+

0

46

MTD 742-0566

Blade -16" Electric

$

$

Currently unavailable

47

MTD 731-1217

Insulator- Blade

$

$

Not available

49

MTD 712-0434

Keps Nuts 5/16-18 Thd.

$

$

Not available

50

MTD 736-0462

Washer

Note: (Heat Treated Special)

$

$

Not available

51

MTD 712-0401

Slotted Nut 1/2-20 Thd.

$

$

Currently unavailable

52

MTD 714-0228

Coner Pin (Stainless Steel)

$

$

Not available

MTD 770-7182F

Owner's Manual

Note: (Not Shown)

$

$

Currently unavailable
