18090 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) REWIND STARTER NO. 590519 Parts Diagram

Walk-Behind Mower

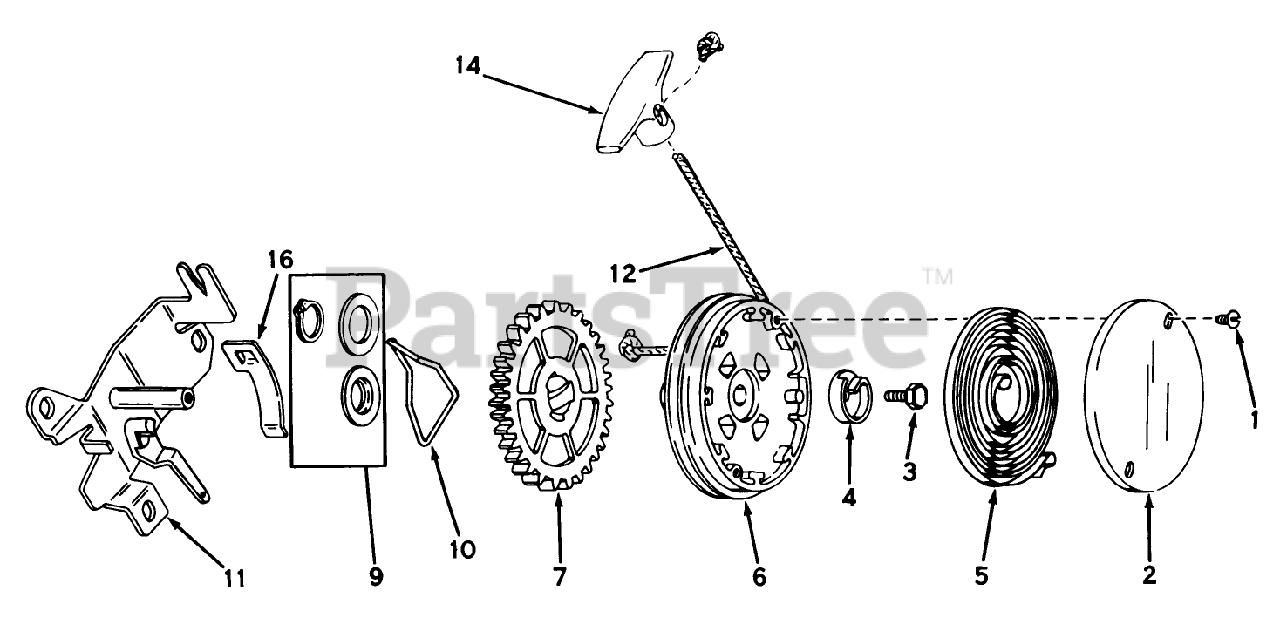

REWIND STARTER NO. 590519 Parts Diagram

  • Title
1

Toro 590477

Screw

$

$

Currently unavailable

2

Toro 590431

Cover, Spring

$

$

Currently unavailable

3

Toro 590472

Screw, Hex Washer Head

$

$

Currently unavailable

4

Toro 590432

Hub Spring

$

$

Currently unavailable

5

Toro 590433

Spring, Rewind

$

$

Currently unavailable

6

Toro 590434A

Pulley Assy. (Incl. No. 9)

$

$

Currently unavailable

7

$

$

Currently unavailable

9

Toro 590470

Kit, Thrust Wash. & Snap Rg.

$

$

Currently unavailable

10

Toro 590438

Brake

$

$

Currently unavailable

11

Toro 590520

Bracket Assy., Mounting

$

$

Currently unavailable

12

Toro 590451a

Rope-Starter

$

$

Currently unavailable

14

Toro 590452

Handle-Starter

$

$

Currently unavailable

16

Toro 590446

Clip Rope

$

$

Currently unavailable
