18090 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

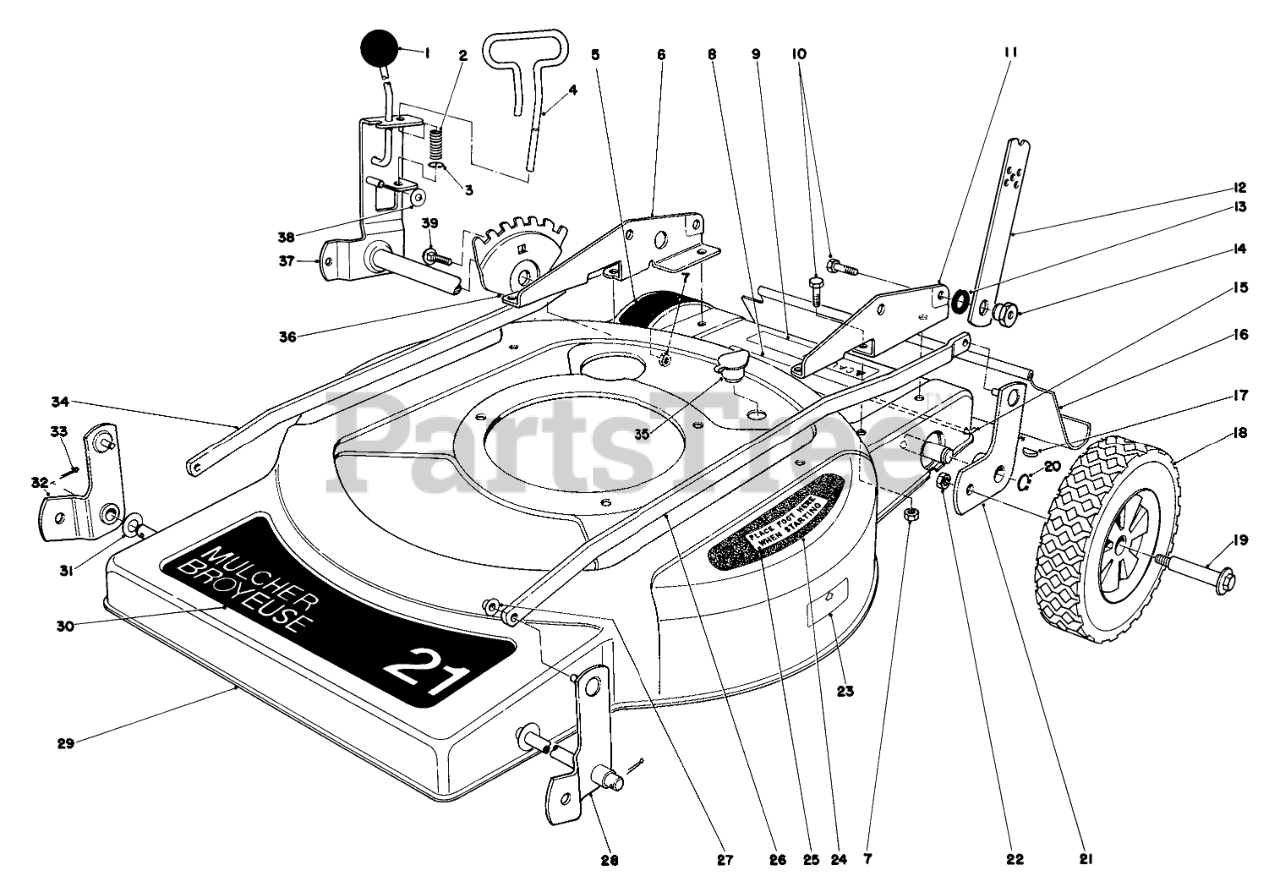

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$13.99

$

Usually ships in 3-6 days

0

2

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

3

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

4

Toro 38-2350

STOP ROD

$

$

Not available

5

Toro 37-9880

Decal Height of Cut

$

$

Not available

6

Toro 38-2260

Bracket Handle R.H.

$

$

Not available

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

8

Toro 37-9870

Decal Caution

$

$

Not available

9

Toro 36-6590

Caution Decal

$

$

Not available

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

11

Toro 38-2250

Bracket-Handle R.H.

$

$

Not available

12

Toro 27-7080

HANDLE LATCH

$

$

Not available

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

14

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

15

Toro 33-3204

SHIELD ROD

$

$

Not available

16

Toro 33-5560

SHIELD - TRAILING

$94.99

$

Usually ships in 3-6 days

0

17

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

20

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

21

Toro 38-7390

Pivot Arm

$

$

Not available

22

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 36-5920

Decal Step

$

$

Not available

24

Toro 36-0410

PAD STEP

$

$

Not available

25

Toro 36-2820

Decal Step Pad

$

$

Not available

26

Toro 36-5060

Spanner Link L.H.

$

$

Not available

27

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

28

Toro 38-2320

LH FRT PIVOT ARM WA

$131.99

$

Usually ships in 3-6 days

0

29

Toro 38-2310

Housing

$

$

Not available

30

Toro 38-4420

Decal-Front Deck

$

$

Not available

31

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

32

Toro 38-2330

Pivot Arm

$

$

Not available

33

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

34

Toro 36-0370

Spanner Link R.H.

$

$

Not available

35

Toro 6-4500

WASHOUT PLUG

$

$

Not available

36

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

37

Toro 38-7400

Pivot Arm Bracket

$

$

Not available

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 37-7190

Carriage Bolt

$

$

Not available

Toro 8-5619

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
