18090 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

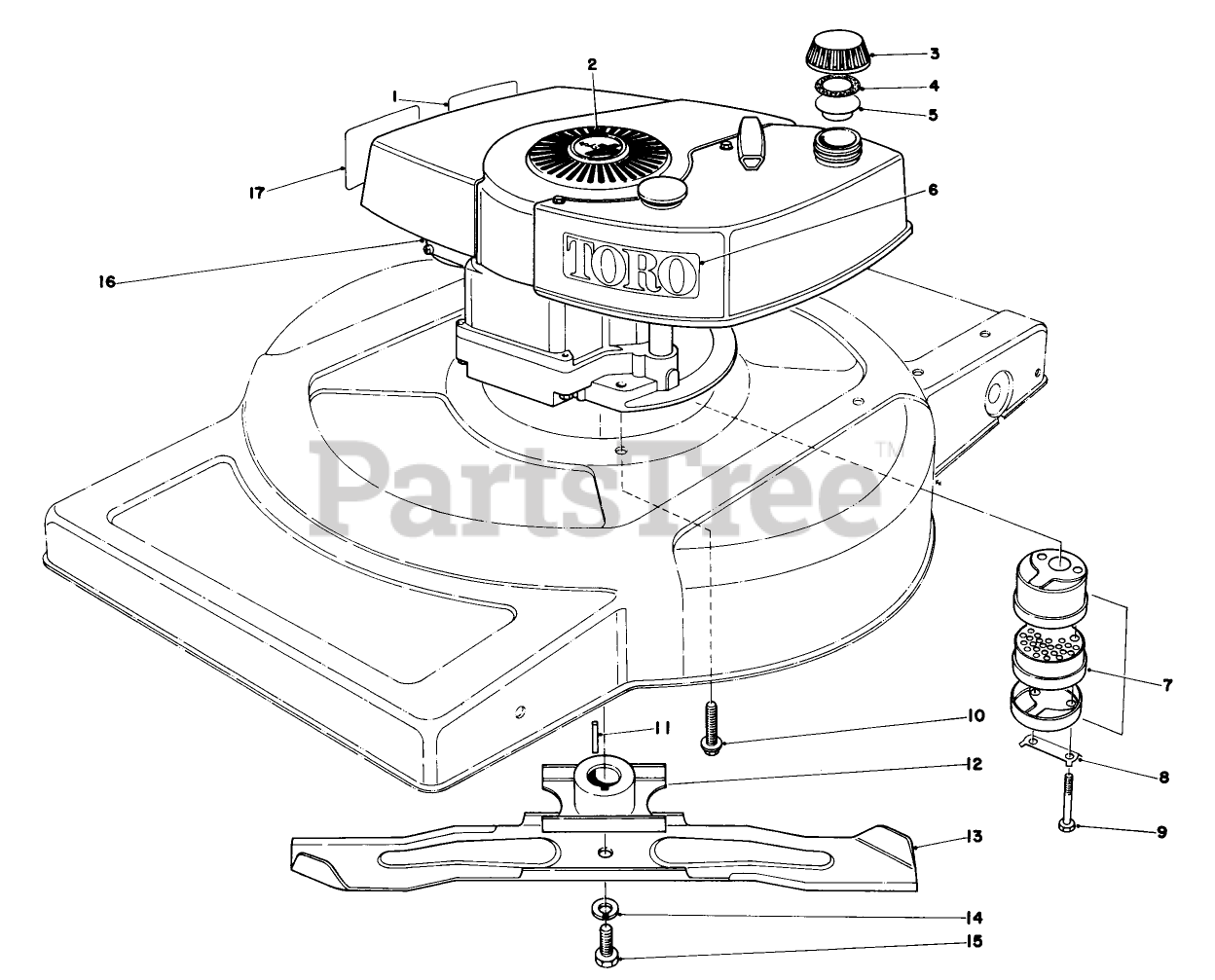

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-1600

Decal Maintenance

$

$

Not available

2

Toro 38-1481

Plug Button

$

$

Not available

3

Toro 27-7871

Gas Cap (Incl. Ref. #4 & 5)
(Superseded to 42-0682)

$

$

Not available

4

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

5

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

6

Toro 26-7730

Decal Toro

$

$

Not available

7

Toro 5-4769

Muffler Assy. (Incl. Ref. #8 & 9

$62.99

$

Usually ships in 3-6 days

0

8

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 7-0036

KEY-SQUARE

$

$

Not available

12

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

13

Toro 36-8220

Blade
(Superseded to 11-6319)

$82.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 23-0080

BLADE SCREW

$

$

Not available

16

Toro 221-622

Engine

$

$

Currently unavailable

17

Toro 37-1580

Decal-Maintenan

$

$

Not available
