18085 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

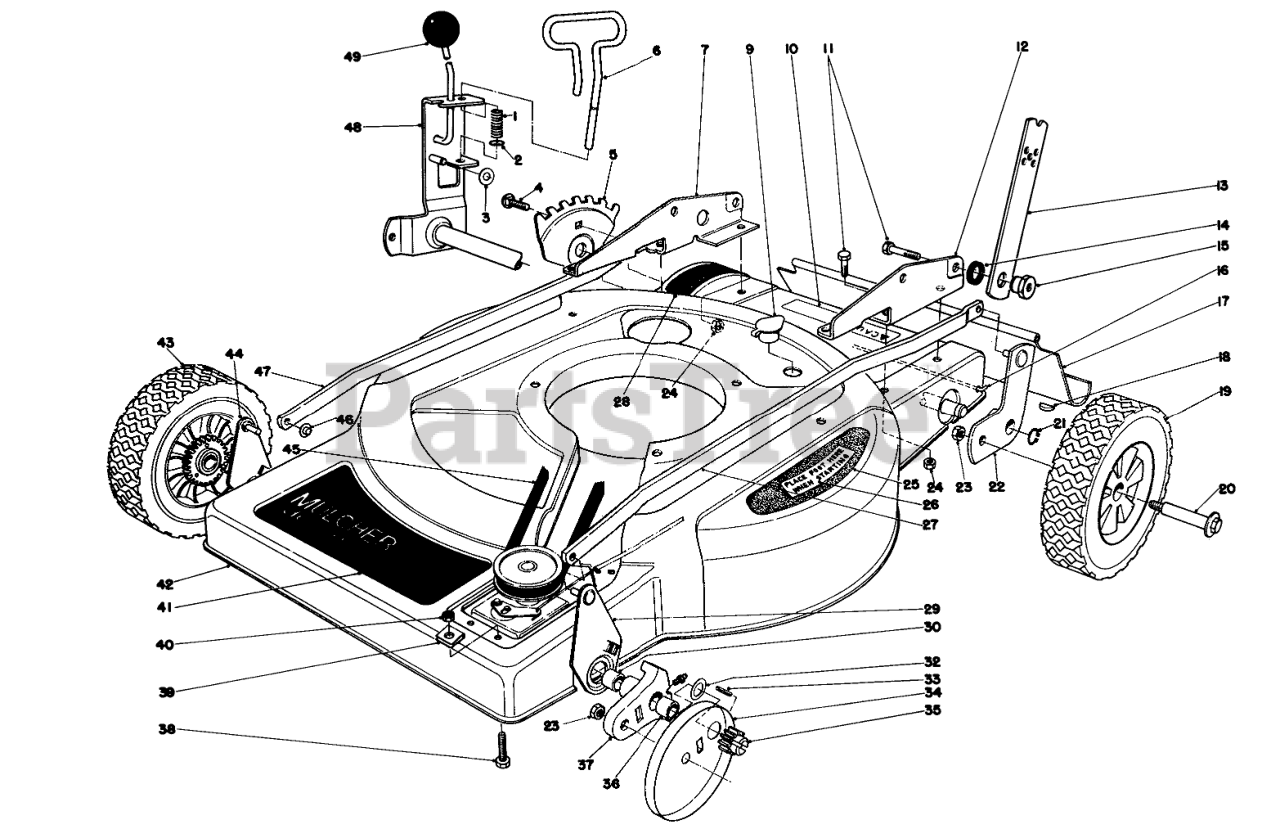

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

2

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 37-7190

Carriage Bolt

$

$

Not available

5

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

6

Toro 38-2350

STOP ROD

$

$

Not available

7

Toro 38-2260

Bracket Handle R.H.

$

$

Not available

9

Toro 6-4500

WASHOUT PLUG

$

$

Not available

10

Toro 36-6590

Caution Decal

$

$

Not available

11

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 38-2250

Bracket-Handle R.H.

$

$

Not available

13

Toro 27-7080

HANDLE LATCH

$

$

Not available

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

15

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

16

Toro 33-3204

SHIELD ROD

$

$

Not available

17

Toro 33-5560

SHIELD - TRAILING

$99.99

$

Usually ships in 3-6 days

0

18

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

19

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 2 left!

0

21

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

22

Toro 38-7390

Pivot Arm

$

$

Not available

23

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

24

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

25

Toro 36-0410

PAD STEP

$

$

Not available

26

Toro 36-2820

Decal Step Pad

$

$

Not available

27

Toro 36-5060

Spanner Link L.H.

$

$

Not available

28

Toro 36-0030

Decal Height of Cut

$

$

Not available

29

Toro 38-2420

Link Pivot Arm L.H.
(Superseded to 36-2620)

$

$

Not available

30

Toro 256-206

BUSHING

$1.99

$

Usually ships in 3-6 days

0

32

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

33

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

34

Toro 18-9820

WHEEL COVER

$

$

Not available

35

Toro 18-9690

Pinion
(Superseded to 99-2532)

$16.99

$

Usually ships in 3-6 days

0

36

Toro 256-1

BUSHING

$31.99

$

In Stock, only 2 left!

0

37

Toro 38-2220

Pivot Arm (Incl. Ref. #30 & 36)

$134.99

$

Usually ships in 3-6 days

0

38

Toro 3-7281

SCREW

$

$

Not available

39

Toro 37-7370

SPEED NUT

$

$

Not available

40

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

41

Toro 36-0120

Decal-Front Deck
(Superseded to 44-0490)

$

$

Not available

42

Toro 38-2210

Housing

$

$

Not available

43

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

44

Toro 38-2430

Link Pivot Arm R.H.
(Superseded to 36-2620)

$

$

Not available

45

Toro 5-4505

V BELT

$24.99

$

Usually ships in 3-6 days

0

46

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, only 4 left!

0

47

Toro 36-0370

Spanner Link R.H.

$

$

Not available

48

Toro 38-7400

Pivot Arm Bracket

$

$

Not available

49

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

Toro 8-3559

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
