18085 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

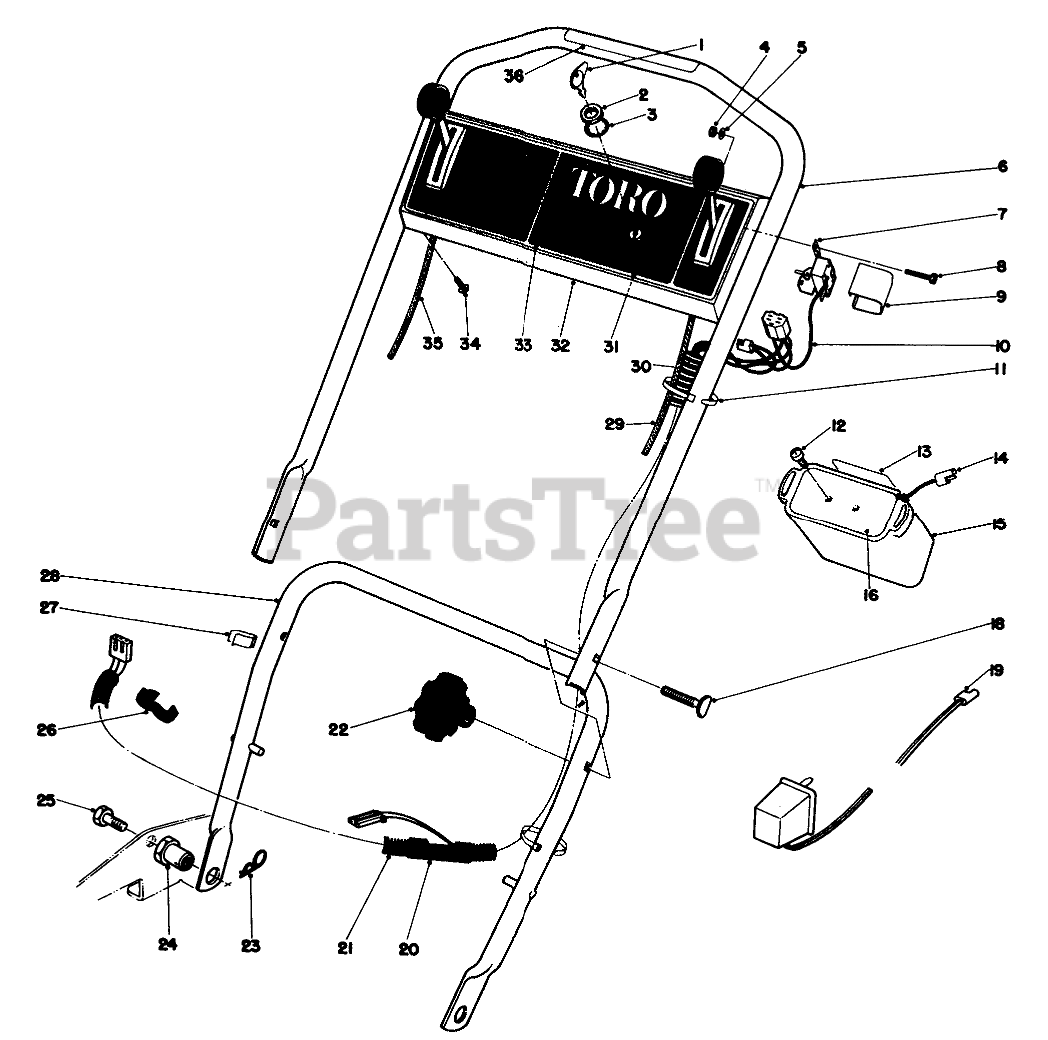

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

3

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

4

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

5

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 36-0110

UPPER HANDLE

$

$

Not available

7

Toro 249760

Safety Switch

$

$

Currently unavailable

8

Toro 3290-124

SCREW-HH

$

$

Not available

9

Toro 25-1590

Cover Switch

$

$

Not available

10

Toro 39-2650

Wiring Harness

$

$

Not available

11

Toro 3290

216 Washer

$

$

Currently unavailable

12

Toro 32104-29

10-190X1/2 PAN HD SCR

$

$

Not available

13

Toro 36-5380

Decal

$

$

Not available

14

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

15

Toro 39-0640

Battery Case

$

$

Not available

16

Toro 39-0630

BATTERY COVER

$

$

Not available

18

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

19

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

20

Toro 2412-49

Breakout Fitting

$

$

Not available

21

Toro 25-5660

Cover Wiring Harness Lower

$

$

Not available

22

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

23

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

24

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

25

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

26

Toro 2412-48

RING FITTING

$

$

Not available

27

Toro 218-466

CLIP

$

$

Not available

28

Toro 38-2450

LOWER HANDLE ASM

$209.99

$

Usually ships in 3-6 days

0

29

Toro 33-2566

Traction Control
(Superseded to 46-6040)

$

$

Not available

30

Toro 39-3450

Cover-Wiring Harness Upper

$

$

Not available

31

Toro 23-0660

Switch Starter (Incl. Ref. #1-3)

$23.99

$

In Stock, only 1 left!

0

32

Toro 38-1190

Control Plate

$

$

Not available

33

Toro 38-2190

Decal Control Plate

$

$

Not available

34

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

35

Toro 36-3272

Throttle Control
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

36

Toro 40-4540

Decal-Instruction

$

$

Not available

Toro 38-4180

Battery Assembly (Incl. Ref. #12, 13, 15 & 16)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
