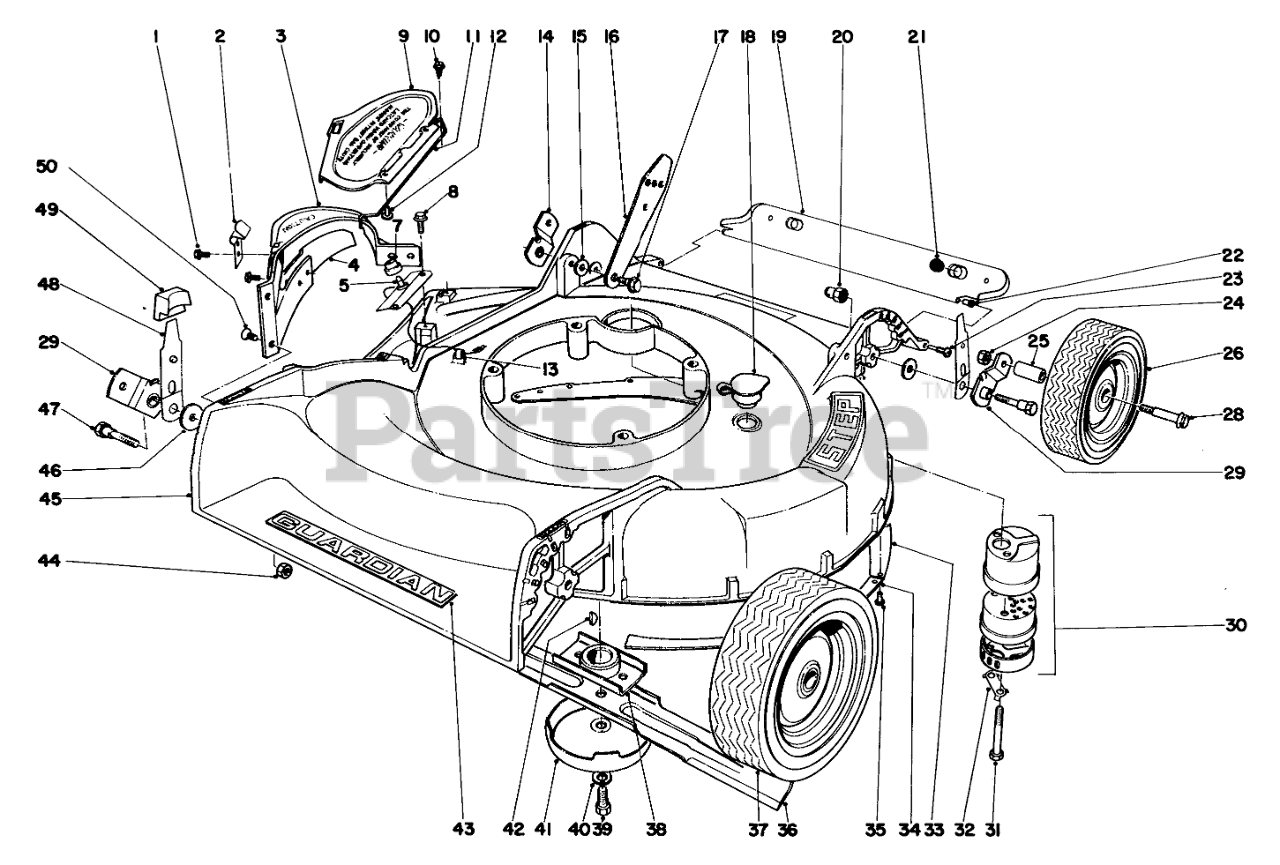

18070 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1972) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32140-91

Screw

$

$

Currently unavailable

2

Toro 12-1170

Latch

$

$

Not available

3

Toro 12-1160

Deflector (Incl. Ref. Nos. 1-4)

$

$

Currently unavailable

4

Toro 10-8960

DefIector Bar

$

$

Currently unavailable

5

Toro 12-4940

Deflector Switch & Wire (Incl. Ref. No. 7)

$

$

Not available

7

Toro 12-4930

Boot Switch

$

$

Not available

8

Toro 32140-91

Screw

$

$

Currently unavailable

9

Toro 8-5760

Deflector Cover (Incl. Ref. Nos. 11 & 12)

$

$

Currently unavailable

10

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

11

Toro 8-5250

Hinge Pin

$

$

Currently unavailable

12

Toro 3295-22

Rivet

$

$

Currently unavailable

13

Toro 2412-9

Clip

$

$

Currently unavailable

14

Toro 8-4260

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

16

Toro 8-6910

Handle Latch
(Superseded to 43-1550)

$

$

Not available

17

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

18

Toro 6-4500

WASHOUT PLUG

$

$

Not available

19

Toro 8-6070

Rear Safety Shielf (Incl. Ref. Nos. 21 & 22)

$

$

Not available

20

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

21

Toro 5-6450

SKID BUTTON

$

$

Not available

22

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

23

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

24

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

25

Toro 3-2664

Bushing

$

$

Not available

26

Toro 8-5880

Wheel Assembly

$

$

Not available

28

Toro 3-2652

Bolt

$

$

Not available

29

Toro 8-4280

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

30

Toro 54769

Muffler (Incl. Ref. Nos. 31 & 32)

$

$

Currently unavailable

31

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

32

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

33

Toro 8-5540

Main Skirt

$

$

Not available

34

Toro 8-5560

Secondary Skirt

$

$

Currently unavailable

35

Toro 32144-12

Screw

$

$

Not available

36

Toro 8-5240

Blade
(Superseded to 8-5240-03)

$

$

Not available

37

Toro 8-5890

Wheel Assembly

$

$

Not available

38

Toro 8-5380

BLADE RETAINER WA

$

$

Not available

39

Toro 3-5246

SPECIAL SCREW

$

$

Not available

40

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

41

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

42

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

43

Toro 12-5020

Emblem

$

$

Currently unavailable

44

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

45

Toro 5-2859

Housing (Incl. Ref. Nos. 33, 34, 35)

$

$

Currently unavailable

46

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

47

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

48

Toro 8-3840

Spring Arm
(Superseded to 23-0400)

$

$

Not available

49

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 20+

0

50

Toro 11-3010

Screw

$

$

Not available

Toro 11-9350

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
