18060 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY MODEL 18015 Parts Diagram

Walk-Behind Mower

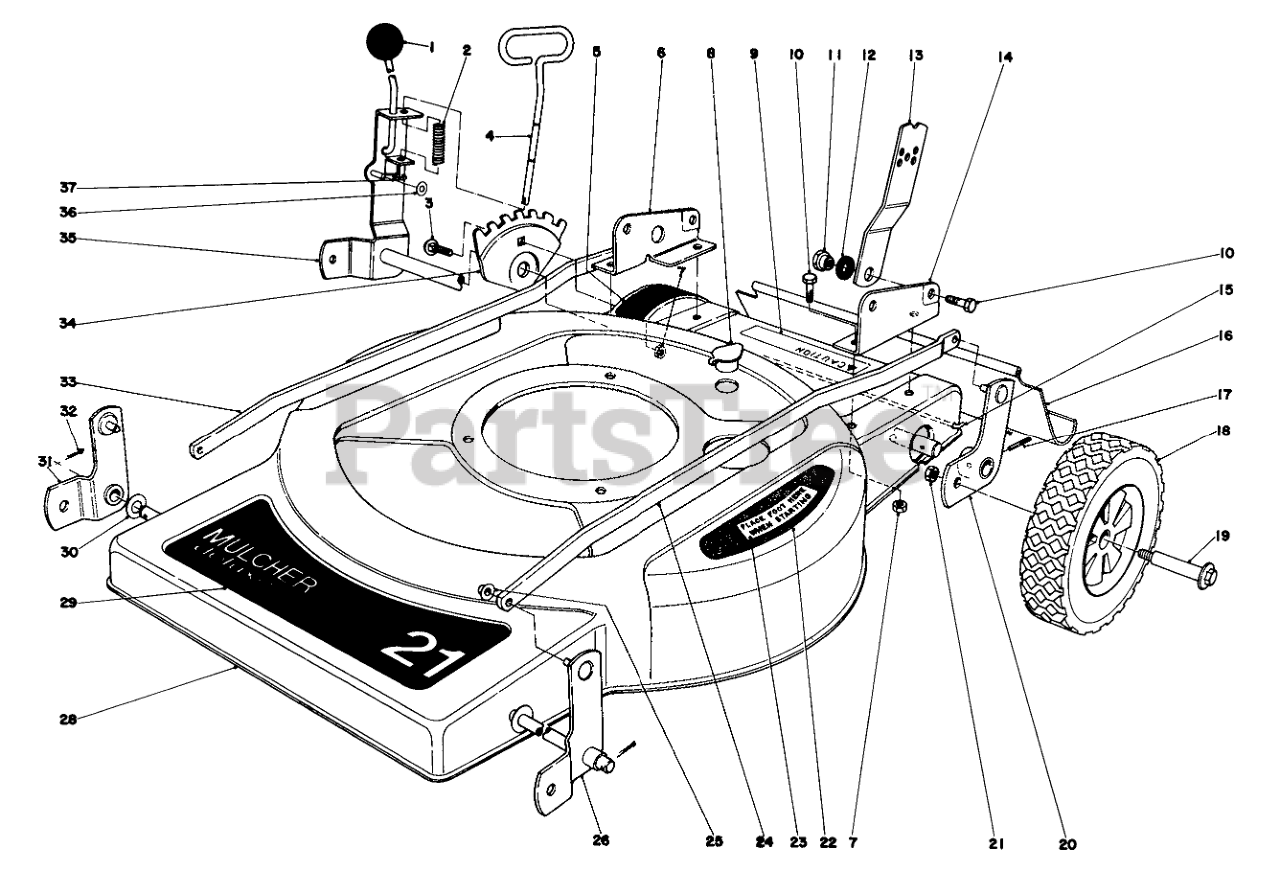

HOUSING ASSEMBLY MODEL 18015 Parts Diagram

  • Title

1

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

2

Toro 36-0280

Spring Compression

$

$

Currently unavailable

3

Toro 37-7190

Carriage Bolt

$

$

Not available

4

Toro 36-3930

Rod Stop

$

$

Not available

5

Toro 36-0030

Decal Height of Cut

$

$

Not available

6

Toro 36-0260

Bracket Handle R.H.

$

$

Currently unavailable

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

8

Toro 64500

Plug Washout

$

$

Currently unavailable

9

Toro 364590

Caution Decal

$

$

Currently unavailable

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 274520

Pivot Nut

$

$

Currently unavailable

12

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

13

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

14

Toro 36-0240

Bracket Handle L.H.

$

$

Currently unavailable

15

Toro 33-3204

SHIELD ROD

$

$

Not available

16

Toro 33-5560

SHIELD - TRAILING

$82.99

$

Usually ships in 3-6 days

0

17

Toro 37-1460

Pin-Special

$

$

Not available

18

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

20

Toro 36-0330

Pivot Arm Rear L.H.

$

$

Currently unavailable

21

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 36-0410

PAD STEP

$

$

Not available

23

Toro 36-2820

Decal Step Pad

$

$

Not available

24

Toro 36-5060

Spanner Link L.H.

$

$

Not available

25

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

26

Toro 36-0490

Pivot Arm Assembly L.H.

$

$

Not available

28

Toro 36-0190

Housing

$

$

Currently unavailable

29

Toro 364690

Backing Plate

$

$

Currently unavailable

30

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

31

Toro 36-0480

Pivot Arm Assembly R.H.

$

$

Not available

32

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Toro 36-0370

Spanner Link R.H.

$

$

Not available

34

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

35

Toro 36-3940

Pivot Arm Bracket

$

$

Not available

36

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 32120-18

E-RING

$1.49

$

In Stock, only 3 left!

0
