1806 (148-640-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Creeper Drive Parts Diagram

Garden Tractor

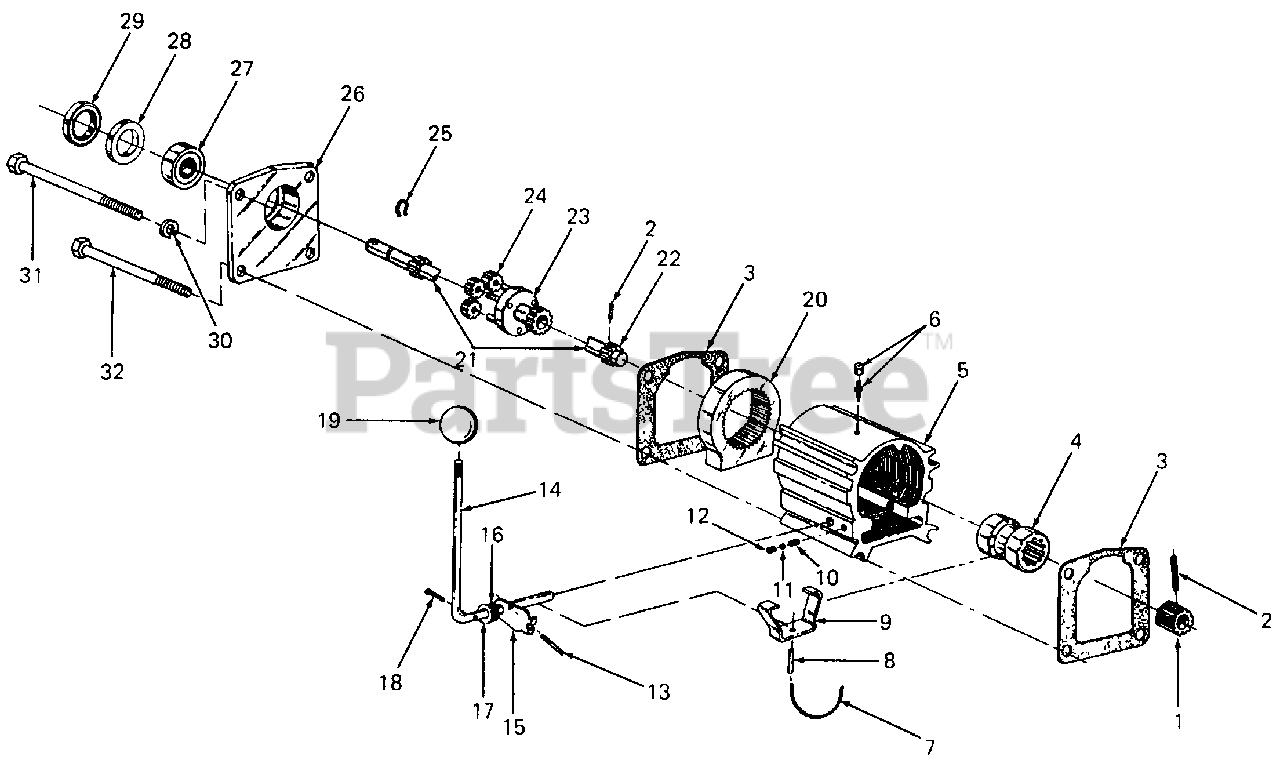

Creeper Drive Parts Diagram

  • Title

1

Cub Cadet 703-1061

Coupling, Driven

$

$

Not available

2

Cub Cadet 715-3011

Pin, Spiral Spring, 1/4 Dia X 7/8Lg

$

$

Not available

3

Cub Cadet 721-3019

Gasket
(Superseded to 721-3019A)

$

$

Not available

4

Cub Cadet 717-3020

Collar, Shifter

$

$

Not available

5

Cub Cadet 717-3226

Housing, Creeper

$

$

Not available

6

Cub Cadet 723-3021

Breather

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 727-3030

Wire, .062 Dia X 4.0 Lg

$

$

Currently unavailable

8

Cub Cadet 715-0248

Pin, Roll, 3/16 Dia X 3/4 Lg

$

$

Not available

9

Cub Cadet 703-0409

Yoke, Shift

$

$

Not available

10

Cub Cadet 732-0863

Spring, Detent
(Superseded to 932-0863)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 741-0862

Ball, Detent

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0421

Screw, Set, 5/16-18 X 1/4 Lg

$

$

Not available

13

Cub Cadet 715-3034

Pin, Roll, 3/16 Dia X 1-5/8 Lg

$

$

Not available

14

Cub Cadet 711-3213

Lever, Shift

$

$

Not available

15

Cub Cadet 703-1094

Plate, Detent

$

$

Not available

16

Cub Cadet 721-3008

O-Ring, 3/8 OD X .06 Thk

$

$

Not available

17

Cub Cadet 736-0117

Washer, Flat, .385 X .62 X .03 Thk
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 714-3010

Pin, Cotter, 3/32 Dia X 5/8 Lg

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 720-3008

Knob
(Superseded to 00012118)

$

$

Not available

20

Cub Cadet 717-3230

Race, Planetary

$

$

Not available

21

Cub Cadet 711-3074

Shaft, Input
(Superseded to 711-3074A)

$

$

Not available

22

Cub Cadet 717-3019

Coupling, Direct Drive

$

$

Not available

23

Cub Cadet 717-3242

Carrier Assy, Planet

$

$

Not available

24

Cub Cadet 717-3022

Gear, Planet - 12T

$

$

Not available

25

Cub Cadet 716-3006

Ring, Snap, 5/8 Dia

$

$

Not available

26

Cub Cadet 717-3246

Plate, Front

$

$

Not available

27

Cub Cadet 741-0155

Bearing, Ball
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

28

Cub Cadet 750-3047

Spacer, Shaft, 1.25 X 1.50 X .325 Thk

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 721-0193

Seal, Oil

$

$

Currently unavailable

30

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0615

Screw, Hex Cap, 3/8-16 X 5.0 Lg

$

$

Not available

32

Cub Cadet 710-0693

Screw, Hex Cap, 3/8-16 X 4.5 Lg

$14.99

$

In Stock, only 2 left!

0

Cub Cadet 737-0223

Grease, Benalene, 14 oz bag
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0
