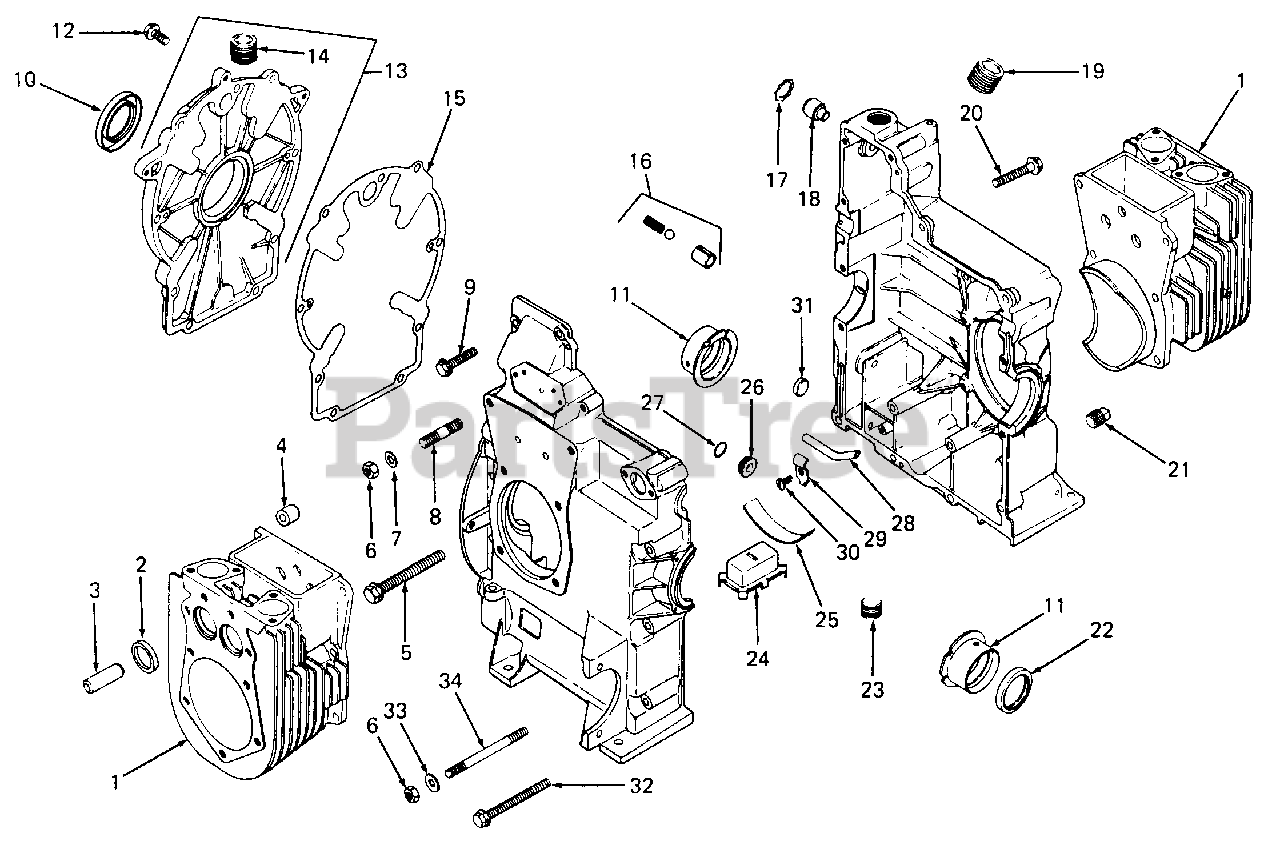

1806 (148-640-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Crankcase Parts Diagram

Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-52-522-71

Short Block

$

$

Not available

Cub Cadet KH-24506

Engine, Complete

$

$

Not available

1

Kit, Cylinder

Note: See Service Bulletin CC194

$

$

Not available

2

Cub Cadet KH-230265

Insert, Valve Seat

$

$

Not available

3

Cub Cadet KH-52-316-06

Guide, Valve
(Superseded to KH-52-316-08)

$

$

Not available

4

Cub Cadet KH-52-158-04

Bushing, Locating

$

$

Not available

5

Cub Cadet KH-25-086-13

Screw, Hex Flange, 3/8-16 X 3.62 Lg

$

$

Not available

6

Cub Cadet KH-X-82-2

Nut, Hex, 5/16-18

$

$

Not available

7

Cub Cadet KH-52-468-12

Washer, Flat

$

$

Not available

8

Cub Cadet KH-52-072-12

Stud, Step, 5/16-18 X .75, 3/8-16 X .62, 2.0 Lg

$

$

Not available

9

Cub Cadet KH-25-086-10

Screw, Hex Flange, 5/16-18 X 1.5 Lg

$

$

Not available

10

Cub Cadet KH-X-583-5

Seal, Rear Oil

$

$

Not available

11

Cub Cadet KH-52-030-10

Bearing, Sleeve (Std)
(Superseded to KH-52-030-10-S)

$120.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-030-11

Bearing, Sleeve (.010)
(Superseded to KH-52-030-11-S)

$240.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-030-12

Bearing, Sleeve (.020)

$

$

Not available

12

Cub Cadet KH-X-802-9

Screw, Wash Hd, 5/16-18 X 1.0 Lg

$

$

Not available

13

Cub Cadet KH-52-755-56

Kit, Closure Plate

Note: (Includes Ref No. 14)

$

$

Not available

14

Cub Cadet KH-X-75-23

Plug, Hex Ctsk, 1/8 NPTF
(Superseded to KH-25-139-60-S)

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-52-041-15

Gasket, Closure Plate
(Superseded to KH-52-041-15-S)

Note: (NOTE: To Be Used on Engines with Serial No. Before 162670865-6)

$13.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-52-755-50

Kit, Oil Relief

$

$

Not available

17

Cub Cadet KH-X-269-43

Ring, Retaining

$

$

Not available

18

Cub Cadet KH-52-078-05

Shaft, Governor

$

$

Not available

19

Cub Cadet KH-52-139-07

Plug, Pipe, 1/16 X 27 NPTF

$

$

Not available

20

Cub Cadet KH-25-086-12

Screw, Hex Flange, 5/16-18 X 2.0 Lg

$

$

Not available

21

Cub Cadet KH-52-139-02

Plug, Bottom Drain, 3/8

$

$

Not available

22

Cub Cadet KH-52-032-10

Seal, Front Oil
(Superseded to KH-52-032-10-S)

$23.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-X-75-32

Plug, Hex Ctsk, 3/8 NPTF
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-52-095-03

Housing, Oil Pickup

$

$

Not available

25

Cub Cadet KH-52-237-02

Clamp, Spring

$

$

Not available

26

Cub Cadet KH-52-139-08

Plug, 3/4 OD

$

$

Not available

27

Cub Cadet KH-52-141-02

O-Ring

$

$

Not available

28

Cub Cadet KH-52-123-10

Tube, Oil Pickup

$

$

Not available

29

Cub Cadet KH-52-237-05

Clamp, Tube

$

$

Not available

30

Cub Cadet KH-X-67-64

Screw, Hex Wash Hd, #10-32 X 7/16 Lg

$

$

Not available

31

Cub Cadet KH-X-702-15

Plug, Cup, 5/16
(Superseded to KH-25-139-46-S)

$2.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-25-086-11

Screw, Hex Flange, 5/16-18 X 3.5 Lg

$

$

Not available

33

Cub Cadet KH-41-468-01

Washer, Plain

$

$

Not available

34

Cub Cadet KH-X-352-33

Stud, 5/16-18 X 4.12 Lg

$

$

Not available
