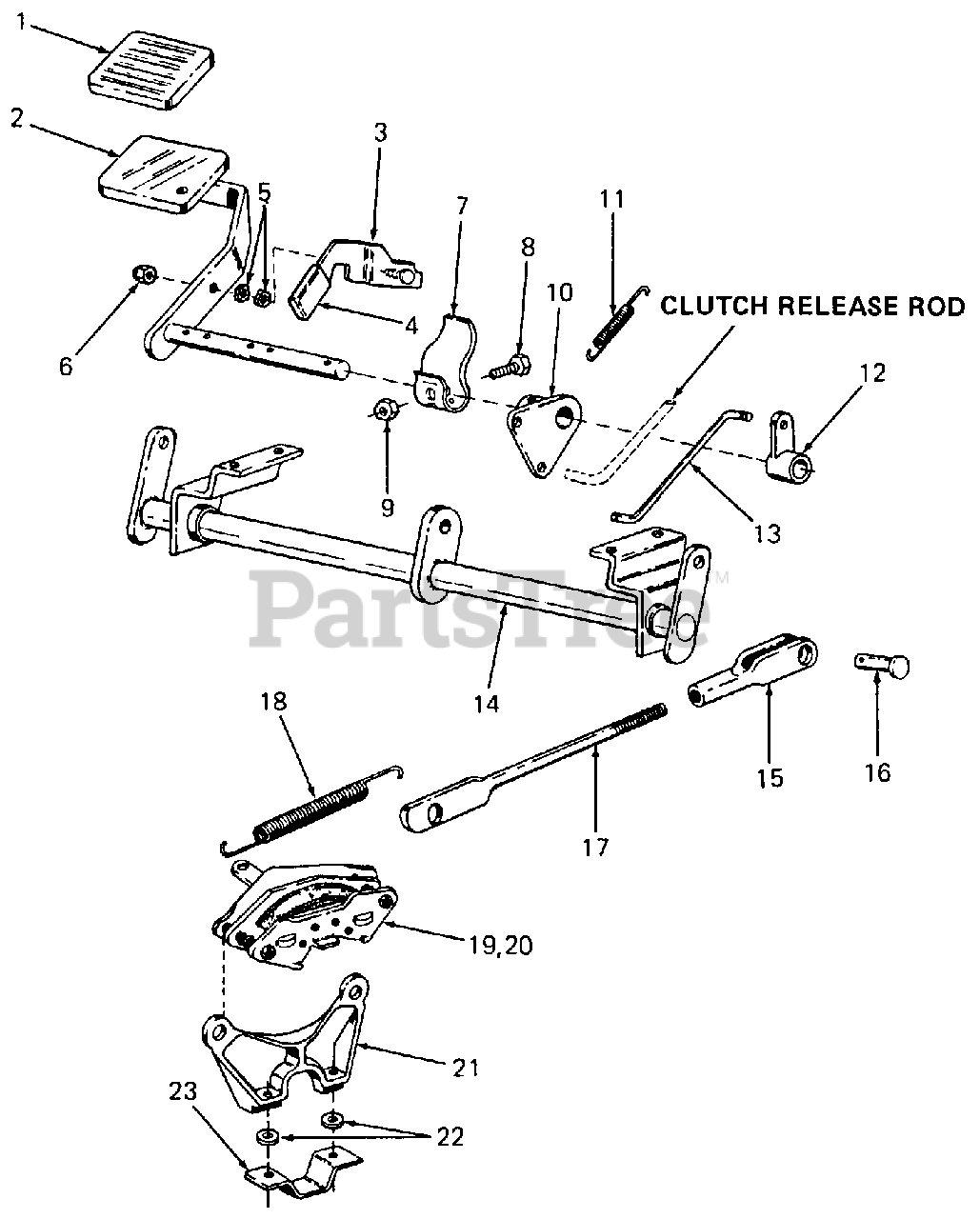

1806 (148-640-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Brakes & Connections Parts Diagram

Garden Tractor

Brakes & Connections Parts Diagram

  • Title

1

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$19.99

$

In Stock, Qty 9

0

2

Cub Cadet 703-0845

Pedal Assy, Brake & Clutch

$

$

Currently unavailable

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, only 4 left!

0

3

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

5

Cub Cadet 736-3001

Washer, Wave, 1/4 Dia

$

$

Not available

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 732-3039

Spring, Switch Operating

$

$

Not available

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, only 4 left!

0

Cub Cadet 726-3000

Nut, Speed

$

$

Not available

8

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet 703-0211

Arm, Brake & Clutch
(Superseded to 703-1871-0637)

Variations

Cub Cadet 703-0211-0637

USE 703-1871-0637 ARM-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, only 4 left!

0

11

Cub Cadet 732-3015

Spring, Brake Return
(Superseded to 932-3015)

$12.99

$

In Stock, Qty 11

0

12

Cub Cadet 703-0900

Lever, Brake

Variations

Cub Cadet 703-0900-0498

LEVER ASSEMBLY-BRAKE - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, only 4 left!

0

13

Cub Cadet 747-3096

Rod, Brake Lever

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 703-0903

Shaft Assy, Brake

$

$

Not available

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, Lock, 5/16 Dia
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 719-3013

Clevis, Adjustment

$28.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-3010

Pin, Clevis, 3/8 Dia X 1.0 Lg
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 711-3130

Rod, Brake

$

$

Not available

18

Cub Cadet 732-0260

Spring, Extension
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

19

Cub Cadet 759-3423

Brake Kit, LH - Caliper

$

$

Not available

20

Cub Cadet 759-3424

Brake Kit, RH - Caliper

$

$

Not available

21

Cub Cadet 719-3061

Bracket, Brake Mounting

$

$

Not available

22

Cub Cadet 736-3010

Washer, Flat, .406 X .812 X .134 Thk

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 703-0222

Bracket, Caliper Flange Mounting

$

$

Not available

Cub Cadet 710-3125

Bolt, Hex Patch Lock, 3/8-16 X 1.25 Lg GR8

$

$

Not available
