18017 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE TECUMSEH MODEL TVS 90-43007A Parts Diagram

Walk-Behind Mower

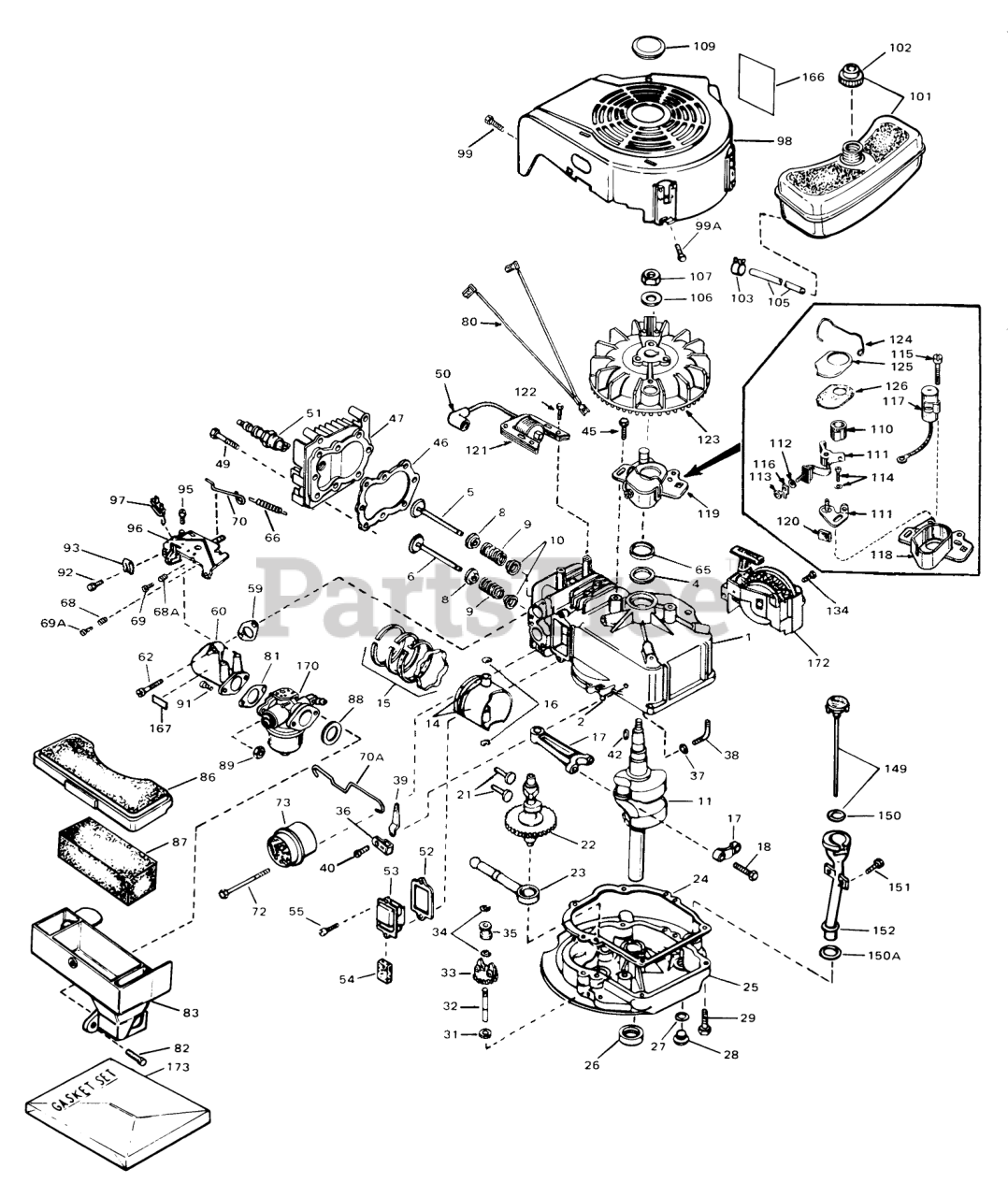

ENGINE TECUMSEH MODEL TVS 90-43007A Parts Diagram

  • Title

1

Tecumseh 34444

Cylinder Assembly (Incl. Nos. 2 & 4)
(Superseded to 36470A)

$135.99

$

Usually ships in 3-12 days

0

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 29314A

Valve, Intake (Std.)(Incl. Nos. 8, 9 & 10)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315B

Valve, Intake (1/32" Oversize)(Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Nos. 8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize)(Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

8

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 34430

Crankshaft
(Superseded to 37449)

$

$

Not available

14

Tecumseh 32538A

Piston, Pin & Ring Assembly (Std.) (Incl. Nos. 15 & 16)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548A

Piston, Pin & Ring Assy. (.010 Oversize) (Incl. Nos. 15 & 16)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549A

Piston, Pin & Ring Assy. (.020 Oversize) (Incl. Nos. 15 & 16)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assembly, Connecting (Incl. No. 18)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set part no. 33238B

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 30594B

Flange Assembly Mounting (Incl. Nos. 26, 27, 28 & 32)
(Superseded to 37644)

$81.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set part no. 33238B

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

29

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. No. 31)

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 30589

Rod, Governor (Incl. No. 37)

$5.49

$

In Stock, only 1 left!

0

39

Tecumseh 31383

Lever, Governor
(Superseded to 31383A)

$1.99

$

In Stock, only 3 left!

0

40

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

42

Tecumseh 610995

682488 LB GRASS HI-

$1.49

$

In Stock, only 4 left!

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates items included in Gasket Set part no. 33238B

$16.99

$

In Stock, only 1 left!

0

47

Tecumseh 34335

2025A67 ADD.ASSEMBL
(Superseded to 36474)

$33.99

$

Usually ships in 3-12 days

0

49

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

51

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 17

0

52

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set part no. 33238B

$7.49

$

In Stock, only 2 left!

0

53

Tecumseh 31337

Breather Assembly (Incl. Nos. 52 & 54)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

54

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

55

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

59

Tecumseh 32649

Gasket, Intake
(Superseded to 32649A)

Note: Indicates items included in Gasket Set part no. 33238B

$2.99

$

In Stock, Qty 18

0

60

Tecumseh 31384

Pipe, Intake
(Superseded to 31384A)

$21.99

$

In Stock, only 2 left!

0

62

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

65

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

66

Tecumseh 31361

Spring Governor

$1.99

$

Usually ships in 3-12 days

0

68

Tecumseh 33802

61709/GIL1515A/95-5
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

68A

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

69

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

69A

Tecumseh 650777

Screw
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

70

Tecumseh 34337

2035A67 ADD.ASSEMBL

$1.99

$

In Stock, only 1 left!

0

70A

Tecumseh 34336

Link-Throttle
(Superseded to 34336A)

$1.99

$

Usually ships in 3-12 days

0

72

Tecumseh 650795

Screw

$1.99

$

In Stock, only 2 left!

0

73

Tecumseh 27181A

Muffler Kit (Incl. No. 72)
(Superseded to 27181C)

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 34432

Wire Ground

$3.49

$

Usually ships in 3-12 days

0

81

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33238B

$2.99

$

In Stock, Qty 11

0

82

Tecumseh 650806

Screw

$1.99

$

Usually ships in 3-12 days

0

83

Tecumseh 34339

Body, Air Cleaner

$9.49

$

Usually ships in 3-12 days

0

86

Tecumseh 34341

Cover Air Cleaner
(Superseded to 34341B)

$5.49

$

In Stock, only 2 left!

0

87

Tecumseh 34340

Filter-Air Cleaner

$4.99

$

In Stock, only 1 left!

0

88

Tecumseh 34338

Gasket-Cleaner, Air

Note: Indicates items included in Gasket Set part no. 33238B

$1.99

$

In Stock, Qty 5

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

91

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

92

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

93

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

95

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

96

Tecumseh 33131A

Control Assy.,Speed (Incl. Nos. 68, 68A, 69, 69A & 97)

$33.99

$

Usually ships in 3-12 days

0

97

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 3 left!

0

98

Tecumseh 34345

Housing, Blower

$

$

Currently unavailable

99

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

99A

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 32170A

Tank Assy., Fuel (Incl. No. 102)
(Superseded to 37947)

$

$

Not available

102

Tecumseh 32387A

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

103

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

105

Tecumseh 34357

Fuel Line
(Superseded to 29774)

$34.99

$

In Stock, Qty 6

0

106

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

109

Tecumseh 34113

Plug, Screen

$3.99

$

Usually ships in 3-12 days

0

110

Tecumseh 30992

Cam-Breaker

$

$

Not available

111

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

112

Tecumseh 610385

Washer

$

$

Not available

113

Tecumseh 610408

DECAL

$

$

Currently unavailable

114

Tecumseh 29181

Breaker Screw

$

$

Not available

115

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

116

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

117

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 10

0

118

Tecumseh 611008

Stator Plate
(Superseded to 611006)

$

$

Not available

119

Tecumseh 611006

Stator Plate Assy. (Incl. Nos. 111 thru 118, 120 & 124)

$

$

Not available

120

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

121

Tecumseh 34431

Lamination
(Superseded to 730207)

$62.99

$

In Stock, only 2 left!

0

122

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

123

Tecumseh 611007

FIywheel
(Superseded to 611046A)

$94.99

$

Usually ships in 3-12 days

0

124

Tecumseh 30551

Spring Breaker Box

$

$

Not available

125

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

126

Tecumseh 610955

Gasket-Dust Cover

$

$

Not available

134

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

149

Tecumseh 34281

Dipstick, Oil (Incl. No. 150)(Twist Lock)
(Superseded to 34267)

$11.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

150A

Tecumseh 34265

Gasket

$2.49

$

In Stock, only 1 left!

0

151

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

152

Tecumseh 34264

Tube-Oil Fill

$9.49

$

Usually ships in 3-12 days

0

166

Tecumseh 34374

Decal, Instruction
(Superseded to 36261)

$

$

Not available

167

Tecumseh 34144

Decal-Primer

$

$

Not available

170

Tecumseh 632046

Carburetor (Incl. No. 81)
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

172

Tecumseh 590531

Starter-Sidemount
(Superseded to 590532)

$87.99

$

In Stock, only 2 left!

0

173

Tecumseh 33238B

Gasket Set
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0
