18017 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE TECUMSEH MODEL TVS 90-43007 Parts Diagram

Walk-Behind Mower

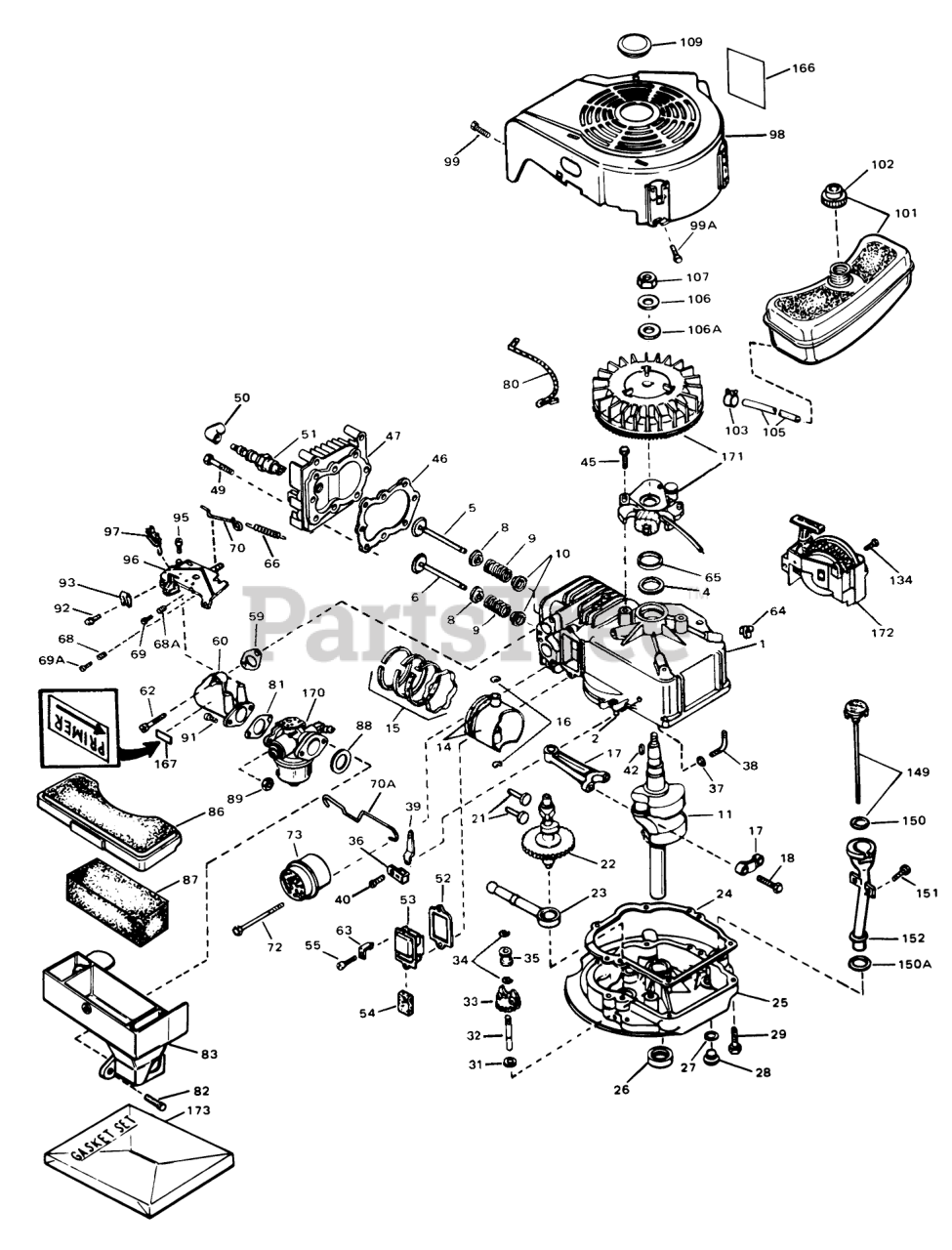

ENGINE TECUMSEH MODEL TVS 90-43007 Parts Diagram

  • Title

1

Tecumseh 32537B

Cylinder Assembly (Incl. Ref. #2 & 4)
(Superseded to 32537C)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 29183

OIL SEAL

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Std.) (Incl. Ref. #8, 9 & 10)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315B

Valve, lntake (1 /32" Oversize) (Incl. Ref. #8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Std.) (Incl. Ref. #8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Ref. #8, 9, & 10)
(Superseded to 29315C)

$

$

Not available

8

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 34233A

Crankshaft

$

$

Currently unavailable

14

Tecumseh 32538A

Piston, Pin & Ring Assy. (Std.) (Incl. Ref. #15 & 16)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548A

Piston, Pin & Ring Assy. (.010 Oversize) (Incl. Ref. #15& 16)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549A

Piston, Pin & Ring Assy. (.020 Oversize) (Incl. Ref. #15&16)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assembly Connecting (Incl. Ref. #18)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

26750A Gasket, Mounting Flange

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

25

Tecumseh 30594B

Flange Assy., Mounting (Incl. Ref. #26, 27, 28 & 32)
(Superseded to 37644)

$81.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

27

28833 Gasket, Oil Drain Plug

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

28

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

29

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assy., Gov. (Incl. Ref. #31)

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 30589

Rod, Governor (Incl. Ref. #37)

$5.49

$

In Stock, only 1 left!

0

39

Tecumseh 31383

Lever, Governor
(Superseded to 31383A)

$1.99

$

In Stock, only 3 left!

0

40

Tecumseh 650648

Screw, Hex Washer Hd.

$

$

Currently unavailable

42

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 650489

Screw

$

$

Not available

46

29953B Gasket, Cylinder Head

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

47

Tecumseh 34335

2025A67 ADD.ASSEMBL
(Superseded to 36474)

$33.99

$

Usually ships in 3-12 days

0

49

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

51

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 17

0

52

31619 Gasket, Breather

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

53

Tecumseh 31337

Breather Assembly (Incl. Ref. #52 & 54)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

54

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

55

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

59

32649 Gasket, Intake Pipe

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

60

Tecumseh 31384

Pipe, Intake
(Superseded to 31384A)

$21.99

$

In Stock, only 2 left!

0

62

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

63

Tecumseh 30593

Retainer Clip

$1.99

$

In Stock, only 1 left!

0

64

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

65

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

66

Tecumseh 31361

Spring Governor

$1.99

$

Usually ships in 3-12 days

0

68

Tecumseh 33802

61709/GIL1515A/95-5
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

68A

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

69

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

69A

Tecumseh 650777

Screw
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

70

Tecumseh 34337

2035A67 ADD.ASSEMBL

$1.99

$

In Stock, only 1 left!

0

70A

Tecumseh 34336

Link-Throttle
(Superseded to 34336A)

$1.99

$

Usually ships in 3-12 days

0

72

Tecumseh 650795

Screw

$1.99

$

In Stock, only 2 left!

0

73

Tecumseh 27181A

Muffler Kit (Incl. Ref. #72)
(Superseded to 27181C)

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 34231

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

81

26756 Gasket, Carburetor

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

82

Tecumseh 650806

Screw

$1.99

$

Usually ships in 3-12 days

0

83

Tecumseh 34339

Body, Air Cleaner

$9.49

$

Usually ships in 3-12 days

0

86

Tecumseh 34341

Cover Air Cleaner
(Superseded to 34341B)

$5.49

$

In Stock, only 2 left!

0

87

Tecumseh 34340

Filter-Air Cleaner

$4.99

$

In Stock, only 1 left!

0

88

34338 Gasket, Air Cleaner

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

91

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

92

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

93

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

95

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

96

Tecumseh 33131A

Control Assy., Speed (Incl. Ref. #68, 68A, 69, 69A & 97)

$33.99

$

Usually ships in 3-12 days

0

97

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 3 left!

0

98

Tecumseh 34345

Housing, Blower

$

$

Currently unavailable

99

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

99A

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 32170A

Tank Assy., Fuel (Incl. Ref. #102)
(Superseded to 37947)

$

$

Not available

102

Tecumseh 32387A

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

103

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

105

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

106

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

106A

Tecumseh 650791

Washer Flat

$0.99

$

In Stock, only 3 left!

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

109

Tecumseh 34113

Plug, Screen

$3.99

$

Usually ships in 3-12 days

0

134

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

149

Tecumseh 34281

Dipstick, Oil (Incl. Ref. #150) (Twist Lock)
(Superseded to 34267)

$11.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

150A

Tecumseh 34265

Gasket

$2.49

$

In Stock, only 1 left!

0

151

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

152

Tecumseh 34264

Tube-Oil Fill

$9.49

$

Usually ships in 3-12 days

0

166

Tecumseh 34346

Decal-Instruction
(Superseded to 36261)

$

$

Not available

167

Tecumseh 34363

Decal, Instruction

$

$

Currently unavailable

170

Tecumseh 632046

Carbu retor (Incl. Ref. #81)
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

171

Tecumseh 610793A

Magneto

$

$

Currently unavailable

172

Tecumseh 590531

Starter-Sidemount
(Superseded to 590532)

$87.99

$

In Stock, only 2 left!

0

173

Tecumseh 33238B

Gasket Set
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!
