18017 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

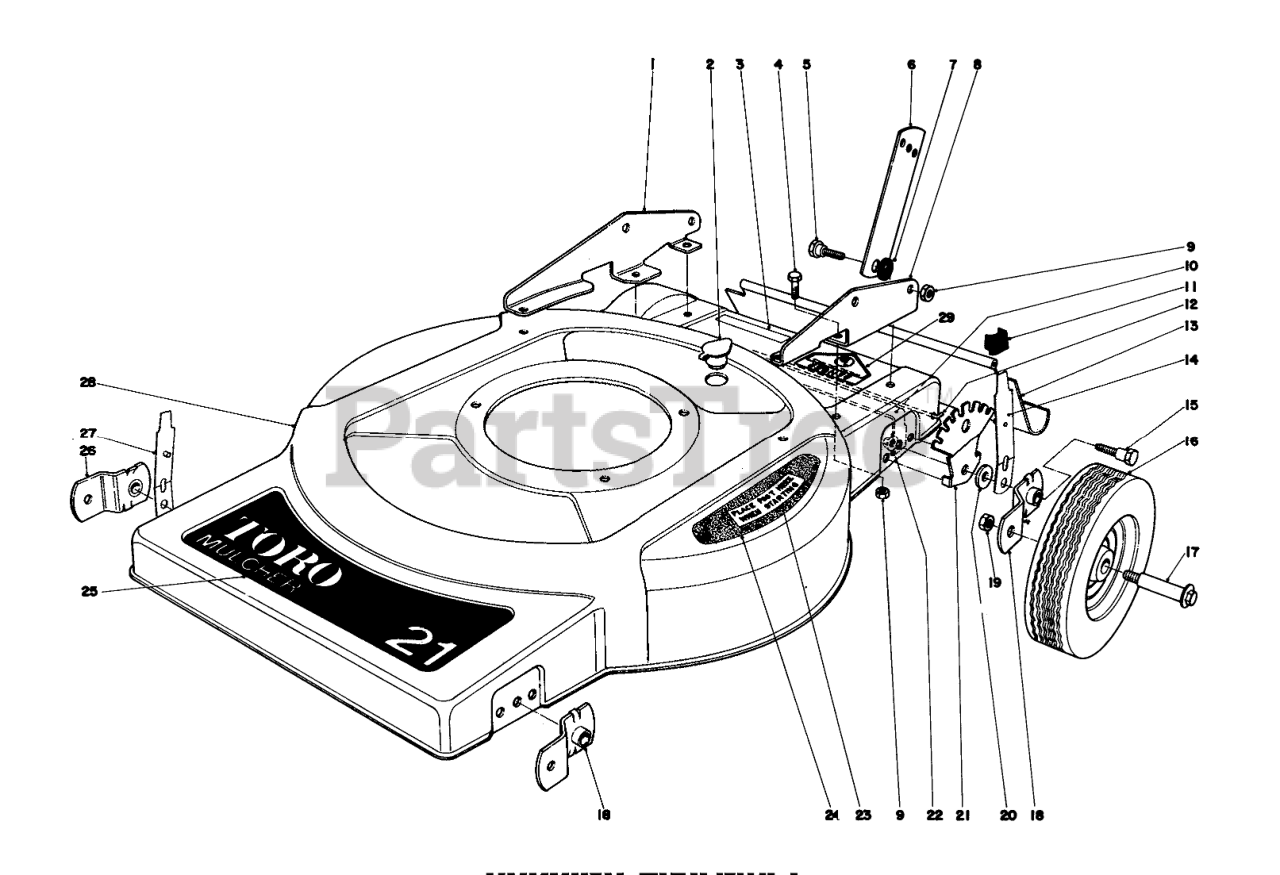

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 38-4830

Bracket Handle R.H.

$

$

Not available

2

Toro 6-4500

WASHOUT PLUG

$

$

Not available

3

Toro 40-4540

Decal-Instruction

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

6

Toro 36-6630

Handle Latch

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

8

Toro 38-4840

Bracket Handle L.H.

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 36-6830

DECK SUPPORT

$

$

Not available

11

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

12

Toro 33-3204

SHIELD ROD

$

$

Not available

13

Toro 33-5560

SHIELD - TRAILING

$94.99

$

Usually ships in 3-6 days

0

14

Toro 27-7240

SPRING ARM ASM

$

$

Not available

15

Toro 36-6670

PIVOT SCREW

$

$

Not available

16

Toro 17-4120

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

21

Toro 36-6780

Quadrant

$

$

Not available

22

Toro 32128-30

NUT

$3.49

$

Usually ships in 3-6 days

0

23

Toro 36-2820

Decal Step Pad

$

$

Not available

24

Toro 36-0410

PAD STEP

$

$

Not available

25

Toro 36-0500

Decal-Front Deck

$

$

Not available

26

Toro 23-9120

PIVOT ARM ASM B

$

$

Not available

27

Toro 25-8000

SPRING ARM ASM

$

$

Not available

28

Toro 38-4900

Housing

$

$

Not available

29

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0
