18010 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY (MODEL 18005) Parts Diagram

Walk-Behind Mower

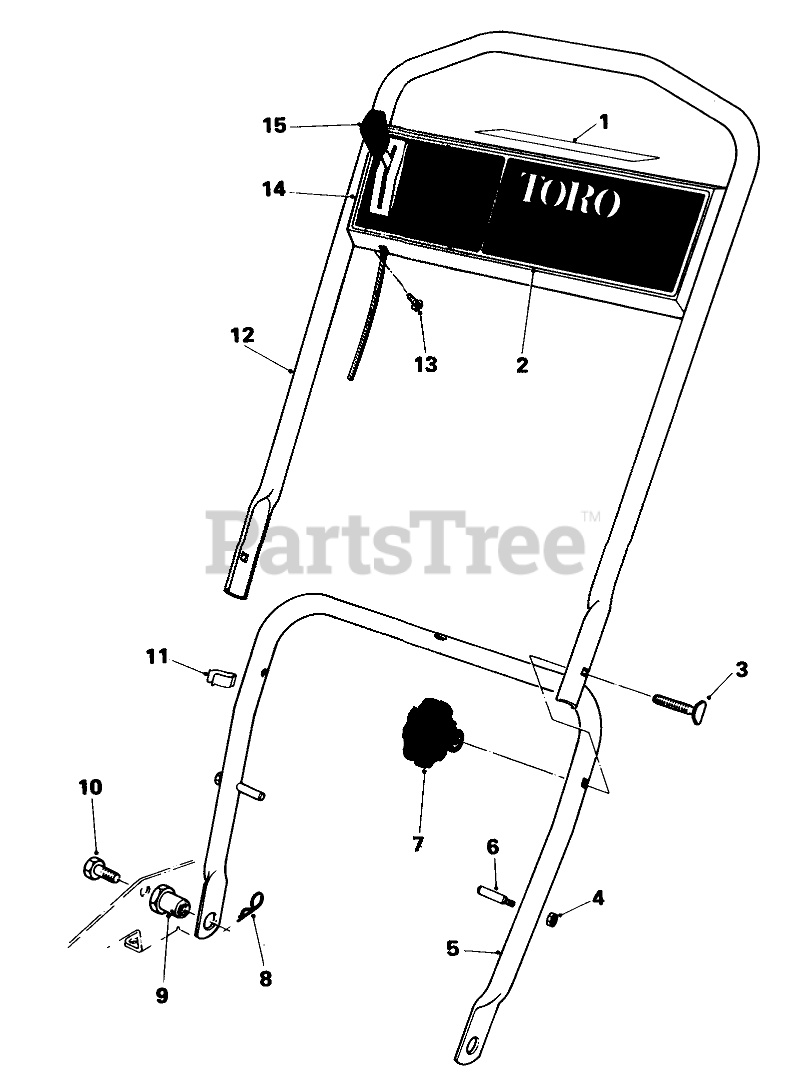

HANDLE ASSEMBLY (MODEL 18005) Parts Diagram

  • Title

1

Toro 40-4540

Decal-Instruction

$

$

Not available

2

Toro 42-1280

Decal-Control Plate

$

$

Not available

3

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

4

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 42-0600

Handle-Lower
(Superseded to 44-0700)

$212.99

$

Usually ships in 3-6 days

0

6

Toro 17-9380

HANDLE PIN

$

$

Not available

7

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

8

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

9

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Toro 218-466

CLIP

$

$

Not available

12

Toro 36-0110

UPPER HANDLE

$

$

Not available

13

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 39-6621

Control Plate

$

$

Not available

15

Toro 39-5870

Throttle Control
(Superseded to 46-6020)

$

$

Not available
