18005 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY MODEL 18010 Parts Diagram

Walk-Behind Mower

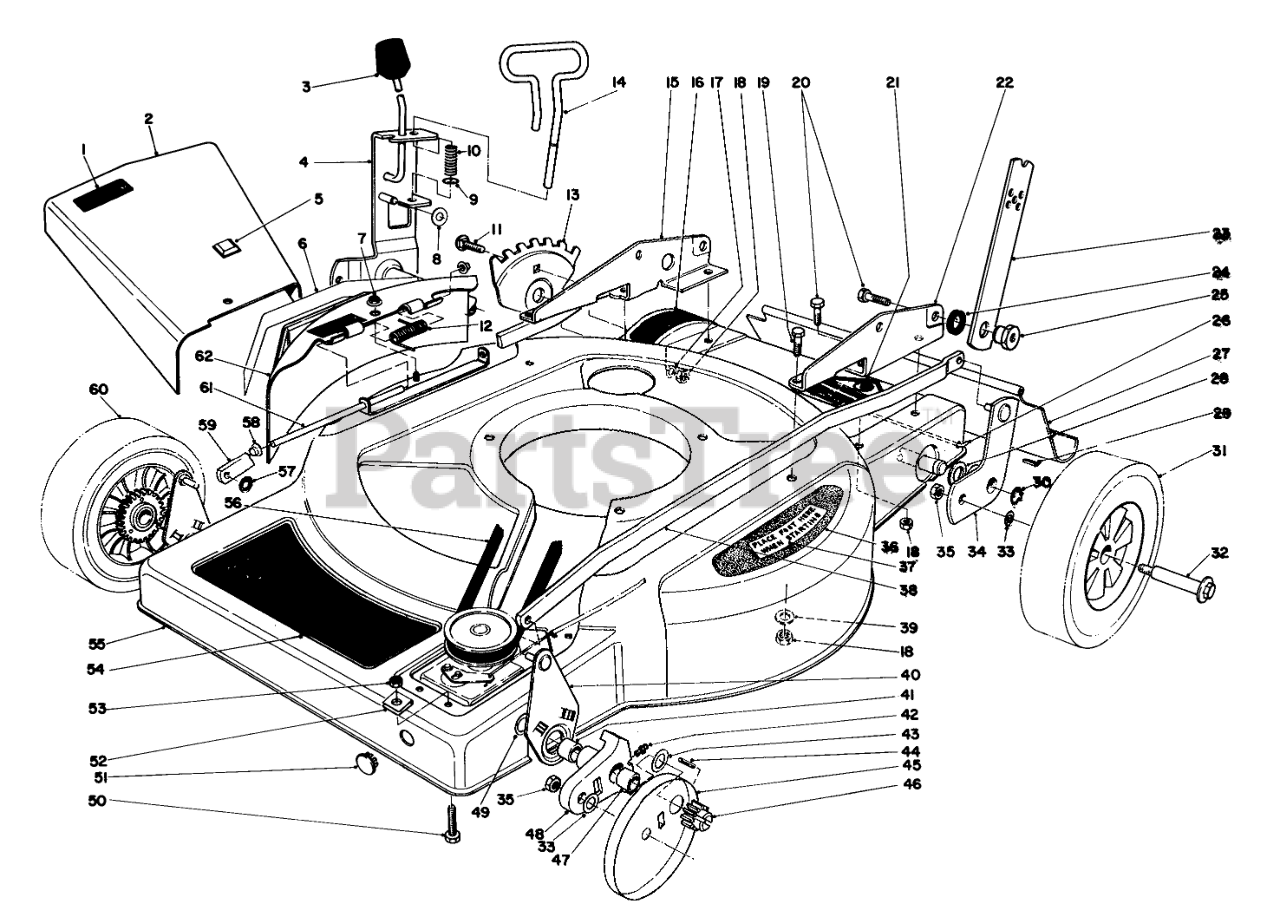

HOUSING ASSEMBLY MODEL 18010 Parts Diagram

  • Title
1

Toro 42-1390

Decal-Danger
(Superseded to 39-5770)

$8.99

$

In Stock, Qty 8

0

2

Toro 11-1639

Deflector-Grass (Incl. Ref. #1 & 5)

$

$

Not available

3

$33.99

$

Usually ships in 3-6 days

0

4

Toro 43-8500

Pivot Arm

$

$

Not available

5

Toro 237-134

Bumper

$

$

Not available

6

Toro 42-1300

Decal-Cover

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32120-18

E-RING

$1.49

$

In Stock, only 3 left!

0

10

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

11

Toro 37-7190

Carriage Bolt

$

$

Not available

12

Toro 42-2990

Spring

$

$

Not available

13

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

14

Toro 38-2350

STOP ROD

$

$

Not available

15

Toro 38-2260

Bracket Handle R.H.

$

$

Not available

16

Toro 36-0030

Decal Height of Cut

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

19

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

21

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

22

Toro 38-2250

Bracket-Handle R.H.

$

$

Not available

23

Toro 27-7080

HANDLE LATCH

$

$

Not available

24

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

26

Toro 33-3204

SHIELD ROD

$

$

Not available

27

Toro 33-5560

SHIELD - TRAILING

$94.99

$

Usually ships in 3-6 days

0

28

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

29

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 17

0

30

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 19

0

31

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

32

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

34

Toro 38-7390

Pivot Arm

$

$

Not available

35

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

36

Toro 36-0410

PAD STEP

$

$

Not available

37

Toro 36-2820

Decal Step Pad

$

$

Not available

38

Toro 36-5060

Spanner Link L.H.

$

$

Not available

39

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 36-2620

PIVOT ARM LINK WA

$

$

Not available

41

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

42

Toro 302-18

FITTING-GREASE

$4.49

$

Usually ships in 3-6 days

0

43

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

44

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

45

Toro 18-9820

WHEEL COVER

$

$

Not available

46

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

47

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

48

Toro 38-2220

Pivot Arm Assembly (Incl. Ref. #41, 42 & 47)

$128.99

$

Usually ships in 3-6 days

0

49

Toro 32112-8

SHAFT RETAINER

$

$

Not available

50

Toro 3-7281

SCREW

$

$

Not available

51

Toro 2410-52

Hole Plug

$

$

Not available

52

Toro 37-7370

SPEED NUT

$

$

Not available

53

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

54

Toro 44-0490

DECK DECAL

$

$

Not available

55

Toro 11-2759

Housing (Incl. Ref. #16, 21 & 36-37)

$

$

Not available

56

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

57

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

58

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

59

Toro 36-0370

Spanner Link R.H.

$

$

Not available

60

Toro 11-1419

WHL/GEAR/TIRE PKG

$

$

Not available

61

Toro 36-6350

DEFLECTOR PIVOT ROD

$

$

Not available

62

Toro 40-9970

Mulcher Cover

$

$

Not available

Toro 11-2259

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
