18005 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY MODEL 18010 Parts Diagram

Walk-Behind Mower

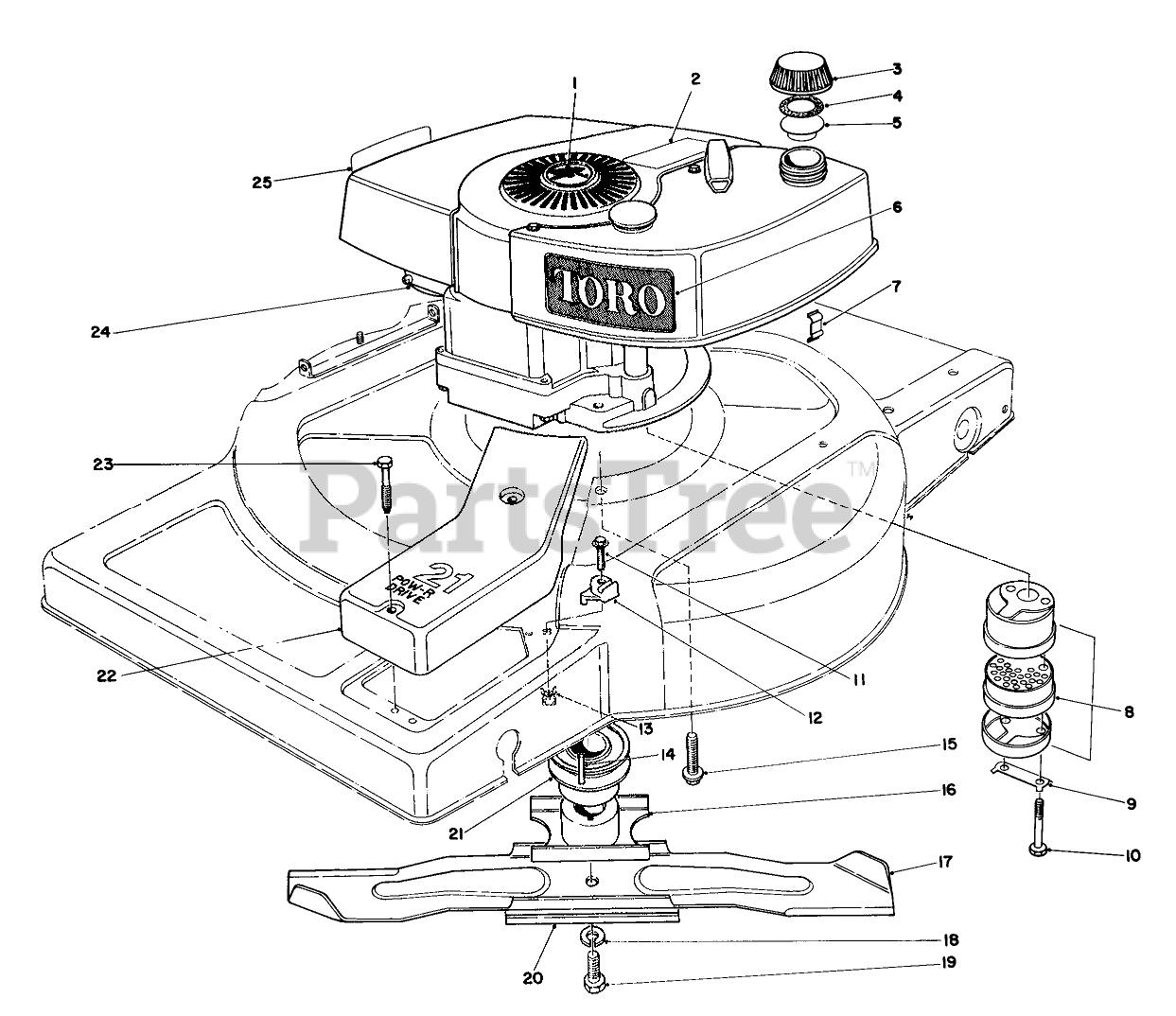

ENGINE ASSEMBLY MODEL 18010 Parts Diagram

  • Title

1

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

2

Toro 25-1050

Decal Lockout

$

$

Not available

3

Toro 27-7870

Gas Cap (Incl. Ref. #4 & 5)
(Superseded to 42-0682)

$

$

Not available

4

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

5

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

6

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

7

Toro 2210-247

Clip Conduit

$

$

Not available

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #9 & 10)

$62.99

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrester Muffler Assembly (Optional)

Note: Not illustrated

$

$

Not available

9

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 38-6400

CABLE BOSS

$

$

Not available

13

Toro 32115-2

SPEED NUT

$

$

Not available

14

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

15

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

16

Toro 42-4240

BLADE RETAINER WA

$

$

Not available

17

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

19

Toro 3-5246

SPECIAL SCREW

$

$

Not available

20

Toro 46-2980

Stiffener-Blade
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

21

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

22

Toro 36-0390

COVER BELT

$

$

Not available

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

24

Toro 221-722

Engine

$

$

Currently unavailable

25

Toro 37-1580

Decal-Maintenan

$

$

Not available
