1800 SUPER - Poulan Chainsaw HANDLES & HOUSING Parts Diagram

Chainsaw

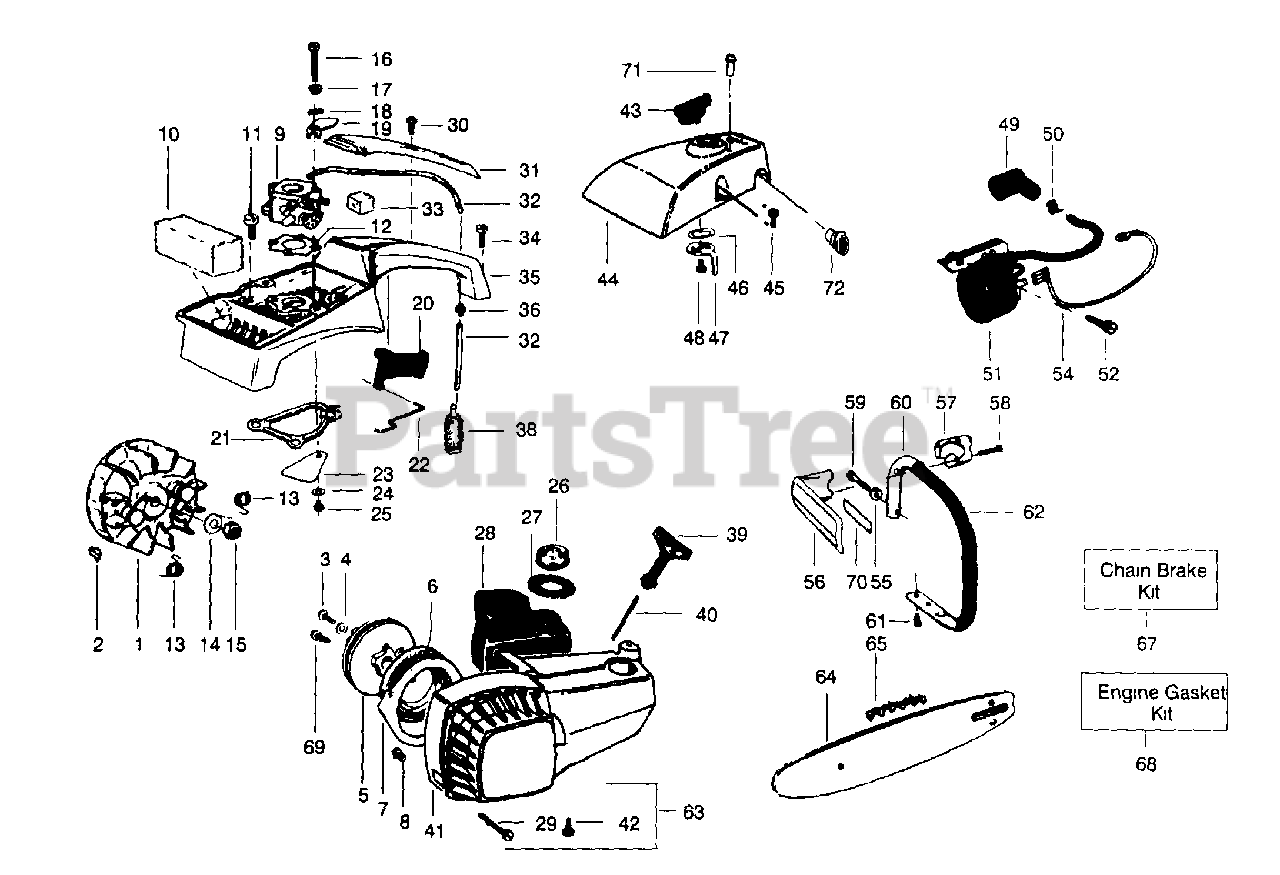

HANDLES & HOUSING Parts Diagram

  • Title

1

Poulan 530047198

Flywheel Ass'y

Note: (Incl. 13)

$

$

Not available

2

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530015036

Pulley Retaining Screw
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

4

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Poulan 530069288

Starter Pulley

$

$

Not available

6

Poulan 530042023

Starter Spring
(Superseded to 545008007)

$

$

Not available

7

Poulan 530038312

Air Baffle - T 4

$

$

Not available

8

Poulan 530001726

Screw - T 4

$

$

Not available

9

Carburetor Kit

Note: See "Carburetor Assembly" illustration and parts list. For type of carburetor

$

$

Not available

10

Poulan 530023791

Air Filter

$

$

Not available

11

Poulan 530015242

Screw

$

$

Not available

12

Poulan 530019045

Carburetor Gasket

$

$

Not available

13

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

14

Poulan 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 530015245

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530023865

Spacer

$

$

Not available

18

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

19

Poulan 530023805

Choke Shutter

$

$

Not available

20

Poulan 530029826

Throttle Trigger

$3.99

$

In Stock, Qty 6

0

21

Poulan 530019236

Gasket
(Superseded to 530019252)

$

$

Not available

22

Poulan 530026606

Throttle Wire

$

$

Not available

23

Reed Valve

$

$

Not available

23

Poulan 530023366

Reed Valve

Note: T 1, 2 & 3

$

$

Not available

23

Poulan 530036331

Reed Valve

Note: T 4

$

$

Not available

24

Washer

$

$

Not available

24

Poulan 530023367

Washer

Note: T 1, 2 & 3

$

$

Not available

24

Poulan 530036332

Washer

Note: T 4

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

26

Poulan 530014347

Fuel Cap Ass'y

$9.49

$

In Stock, Qty 15

0

27

Poulan 530019093

Seat

$

$

Not available

28

Poulan 530010775

Fuel Tank Ass'y

Note: (Incl 26, 27 & 38)

$

$

Not available

29

Screw

Note: See Service Ret. 4

$

$

Not available

30

Poulan 530015247

Screw

$

$

Not available

31

Handle Cover

$

$

Not available

31

Poulan 530023774

Handle Cover

Note: T 1

$

$

Not available

31

Poulan 530024967

Handle Cover

Note: T 2, 3 & 4

$8.99

$

Usually ships in 3-10 days

0

32

Poulan 530069216

Fuel Line

$11.99

$

In Stock, Qty 20+

0

33

Poulan 530023373

Throttle Wire Boot

$

$

Not available

34

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

35

Handle & Carb Hsg

$

$

Not available

35

Poulan 530069848

Handle & Carb Hsg

Note: T 1, 2 & 3

$

$

Not available

35

Poulan 530037774

Handle & Carb Hsg

Note: T 4

$

$

Not available

36

Poulan 530023877

Fuel Line Fitting

$5.99

$

In Stock, only 4 left!

0

38

Poulan 530014362

Fuel Pick-Up Ass'y
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

39

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

40

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

41

Poulan 530069602

Fan Hsg Lt

Note: See Service Ref. 4

$

$

Not available

42

Poulan 530015650

Screw

$

$

Not available

43

Poulan 530023807

Choke Knob

$2.49

$

In Stock, only 2 left!

0

44

Carb Cover

$

$

Not available

44

Poulan 530023775

Carb Cover
(Superseded to 530071304)

Note: T 1, T 2 & T 3

$

$

Not available

44

Poulan 530038161

Carb Cover

Note: T 4

$

$

Not available

45

Poulan 530015168

Screw

$

$

Not available

46

Poulan 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 530023806

Choke lever

$

$

Not available

48

Poulan 530015407

Screw

$

$

Not available

49

Poulan 507475326

Spark Plug Boot

$

$

Not available

50

Poulan 507475326

Spark Plug Connector

$

$

Not available

51

Poulan 530069202

Ignition Module Kit

$

$

Not available

52

Poulan 530015816

Screw

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530039116

Switch Lead

Note: See Service Ref. 1

$

$

Not available

55

Poulan 530015151

Washer

$

$

Not available

56

Poulan 530024091

Handguard

$

$

Not available

57

Poulan 530024049

Handguard Cap

$

$

Not available

58

Poulan 530015509

Screw

$3.99

$

In Stock, only 2 left!

0

59

Poulan 530001648

Screw

$

$

Not available

60

Poulan 530010991

Handlebar
(Superseded to 530022351)

$

$

Not available

61

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

62

Poulan 530027847

Grip

$

$

Not available

63

Poulan 530069286

Fan Hsg. Screw Kit

Note: (Incl 29 & 42 this page & 9, page 1)

$

$

Not available

64

Guide Bar

$

$

Not available

64

Poulan 952044365

Guide Bar

Note: 10"

$

$

Not available

64

Poulan 952044366

Guide Bar

Note: 12"

$

$

Not available

64

Poulan 952044368

Guide Bar

Note: 14"

$

$

Not available

64

Poulan 952044370

Guide Bar

Note: 16"

$

$

Not available

65

Chain

$

$

Not available

65

Poulan 952051207

Chain

Note: 10"

$

$

Not available

65

Poulan 952051208

Chain
(Superseded to 530051375)

Note: 12"

$40.99

$

Usually ships in 3-10 days

0

65

Poulan 952051209

Chain
(Superseded to 581562101)

Note: 14"

$20.99

$

Usually ships in 3-10 days

0

65

Poulan 952051211

Chain
(Superseded to 581562201)

Note: 16"

$22.99

$

In Stock, only 3 left!

0

67

Poulan 952069394

Chain Brake Kit

$27.99

$

Usually ships in 3-10 days

0

68

Poulan 530069401

Engine Gasket Kit

Note: Incl. items 12, 21, 27 & 33; and From "Internal Power Unit" illustration and parts list items 11, 12, 15, 16 & 44.

$

$

Not available

69

Poulan 530016080

Rope Retain Screw

$6.49

$

In Stock, only 2 left!

0

70

Poulan 530026849

Handguard Decal

$

$

Not available

71

Poulan 530038571

Grommet - Mix

Note: T 4

$

$

Not available

72

Poulan 530038646

Grommet - Idle

Note: T 4

$

$

Not available
