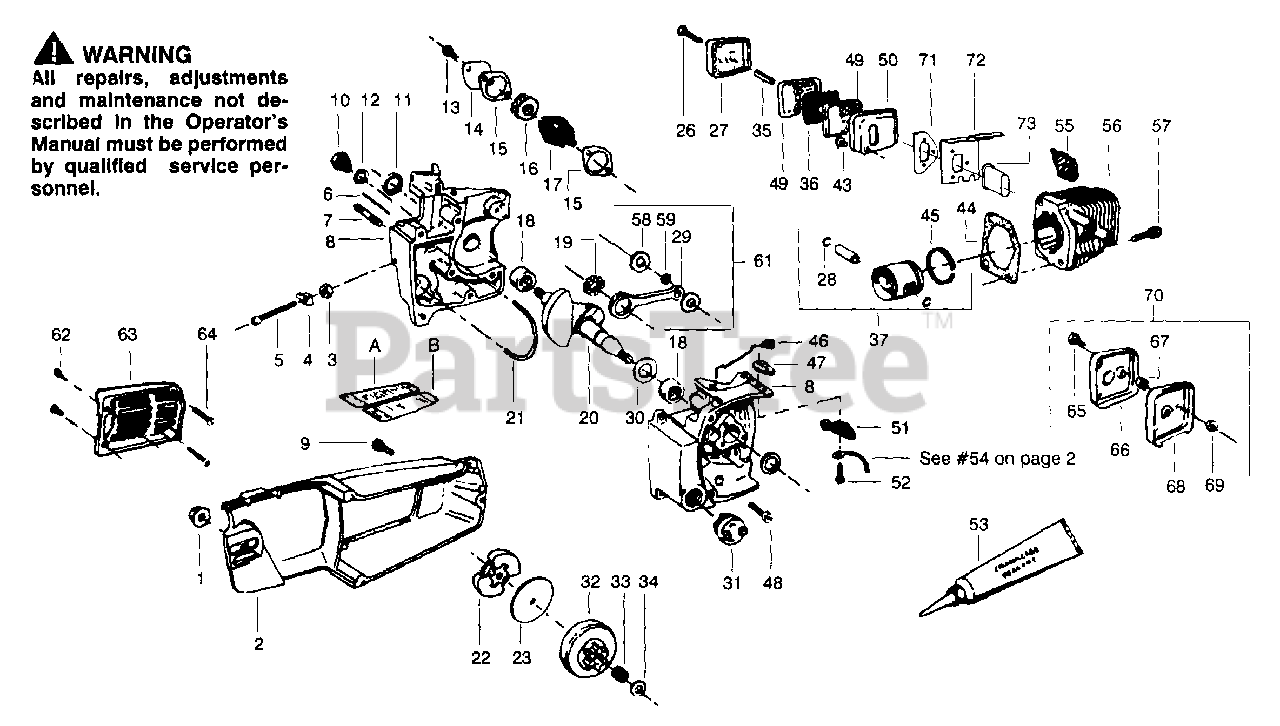

1800 - Poulan Chainsaw POWER UNIT Parts Diagram

Chainsaw

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015445

Bar Mounting Nut
(Superseded to 530015251)

$6.49

$

In Stock, only 1 left!

0

2

Poulan 530029476

Bar Clamp

$

$

Not available

3

Poulan 530015135

Lock Nut

$1.99

$

In Stock, Qty 7

0

4

Poulan 530023492

Bar Adjust Pin

$

$

Not available

5

Poulan 530016115

Screw

$2.49

$

In Stock, only 1 left!

0

6

Oil Tank Vent Pin

Note: See Service Ref. 7

$

$

Not available

7

Poulan 530015719

Bar Mounting Stud

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530014742

Crankcase Ass'y

Note: (Incl 3-6, 11, 18, 31 & 48)

$

$

Not available

9

Poulan 530015623

Screw

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530069142

Check Valve Kit

Note: (Incl. 12)

$

$

Not available

11

Poulan 530019059

Crankshaft Seal

$

$

Not available

12

Poulan 530019089

Check Valve Gasket

$

$

Not available

13

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530023802

Metering Body Cover

$

$

Not available

15

Poulan 530019091

Metering Body Gasket

$

$

Not available

16

Poulan 530023801

Oil Filter

$

$

Not available

17

Poulan 530010195

Oil Pump Ass'y

$

$

Not available

18

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

19

Poulan 530032065

Roller Bearing

Note: (Incl. 12 bearings)

$

$

Not available

20

Poulan 530022172

Crankshaft

$

$

Not available

21

Poulan 530021026

Oil Discharge Line
(Superseded to 530069216)

$11.99

$

In Stock, Qty 20+

0

22

Clutch Ass'y Kit

Note: (Incl. Washer) See Service Ref. 2

$

$

Not available

23

Poulan 530069197

Clutch Washer Kit (Outside)

$

$

Not available

26

Poulan 530015169

Screw

$5.99

$

Usually ships in 3-10 days

0

27

Poulan 530023795

Muffler Cover

$

$

Not available

28

Poulan 530023843

Piston Pin Retainer

$

$

Not available

29

Poulan 530022158

Connecting Rod-1800; 2000

Note: (Before Date Code/Serial #A18990001)

$36.99

$

Usually ships in 3-10 days

0

30

Poulan 530023887

Thrust Washer

$

$

Not available

31

Oil Cap Ass'y

Note: (Incl. O-Ring w/Retainer)

$

$

Not available

31

Poulan 530010221

T 1 & T 2

$

$

Not available

31

Poulan 530010444

T 3 & T 4

$

$

Not available

32

Poulan 530069166

Clutch Drum

$26.99

$

In Stock, only 1 left!

0

33

Poulan 530032079

Clutch Bearing

Note: (Use only with Clutch Drum & Bearing Kit #69166)

$

$

Not available

34

Poulan 530023519

Clutch Spacer (Inside)

$3.99

$

In Stock, only 1 left!

0

35

Poulan 530023535

Spacer

$5.99

$

In Stock, only 1 left!

0

36

Poulan 530023796

Spark Arrestor Screen

$

$

Not available

37

Piston

Note: (Incl. 28, 45 & Pin)

$

$

Not available

37

Poulan 530010432

1800-T 1 & T 2

$

$

Not available

37

Poulan 530069545

2000 - T 1, 2 & 3, & Model 1800-T 3 & 4

$

$

Not available

43

Poulan 530001666

Screw

$

$

Not available

44

Poulan 530019237

Cylinder Gasket
(Superseded to 530069401)

$

$

Not available

45

Piston Ring

$

$

Not available

45

Poulan 530024929

Model 1800,

$

$

Not available

45

Poulan 530023789

Model 2000

Note: (Before Date Code/Serial #A1890001)

$

$

Not available

45

Poulan 530025875

Model 2000

Note: (Date Code/Serial #1890001 and after)

$

$

Not available

46

Poulan 530023788

Switch Knob Ass'y

$

$

Not available

47

Poulan 530023786

Ramp Switch

$

$

Not available

48

Poulan 530015986

Screw

$

$

Not available

49

Poulan 530023797

Muffler Baffle

$

$

Not available

50

Muffler Body

$

$

Not available

50

Poulan 530023794

Muffler Body

Note: T 1-3

$

$

Not available

50

Poulan 530038325

Muffler Body

Note: T 4

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 530023787

Switch Clamp

$

$

Not available

52

Poulan 530015235

Screw

$

$

Not available

53

Poulan 530030054

Crankcase Sealant

$

$

Not available

55

Poulan 952030150

Spark Plug

$3.49

$

In Stock, Qty 20+

0

56

Cylinder

$

$

Not available

56

Poulan 530012139

Cylinder

Note: 1800 T 1 & 2

$

$

Not available

56

Poulan 530012140

Cylinder

Note: 2000 T 1, 2 & 3, & 1800 T 3 & 4

$

$

Not available

57

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

58

Poulan 530015486

Washer - 2000

Note: (Date Code/Serial #A1890001 and after)

$

$

Not available

59

Poulan 530032075

Bearing Rod (Top

Note: (Incl. 22 Bearings) 2000 (Date Code/Serial #A1890001 and after)

$

$

Not available

61

Poulan 530010474

Connecting Rod Ass'y Kit

Note: (Incl. 29, 58, & 59) 2000 (Date Code/Serial & #A1890001 and after)

$

$

Not available

62

Poulan 530015474

Screw-T 2

$

$

Not available

63

Poulan 530025259

Muffler Shield
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

64

Poulan 530015463

Screw

$1.99

$

Usually ships in 3-10 days

0

65

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

66

Poulan 530024201

Heat Shield

$

$

Not available

67

Poulan 530015331

Spacer

$1.99

$

Usually ships in 3-10 days

0

68

Poulan 530024202

Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 530015332

Locknut

$1.99

$

Usually ships in 3-10 days

0

70

Poulan 530069034

Heat Shield Kit

$

$

Not available

71

Poulan 530019211

Gasket - Muffler - T 4

$2.49

$

Usually ships in 3-10 days

0

72

Poulan 530038643

Muffler Back Plate - T 4

$

$

Not available

73

Poulan 530037652

Port-Insulator - T 4

$

$

Not available

A

Instructions Decal-Rt Hand

$

$

Not available

A

Poulan 530026918

Instructions Decal-Rt Hand

Note: T 1-3

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530047722

Instructions Decal-Rt Hand

Note: T 4

$

$

Not available

B

Poulan 530038552

Instruct Decal - Left Hand

$2.49

$

Usually ships in 3-10 days

0

Bar Wrench

Note: Not Shown

$

$

Not available

Poulan 530031146

Bar Wrench
(Superseded to 545006011)

Note: T 1-3; Not Shown

$

$

Not available

Poulan 530031063

Bar Wrench
(Superseded to 545006011)

Note: T 4; Not Shown

$

$

Not available

Operator's Manual

Note: Not Shown

$

$

Not available

Poulan 530067580

Operator's Manual

Note: T 1-3; Not Shown

$7.49

$

Usually ships in 3-10 days

0

Poulan 530083691

Operator's Manual

Note: T 4; Not Shown

$6.49

$

Usually ships in 3-10 days

0
