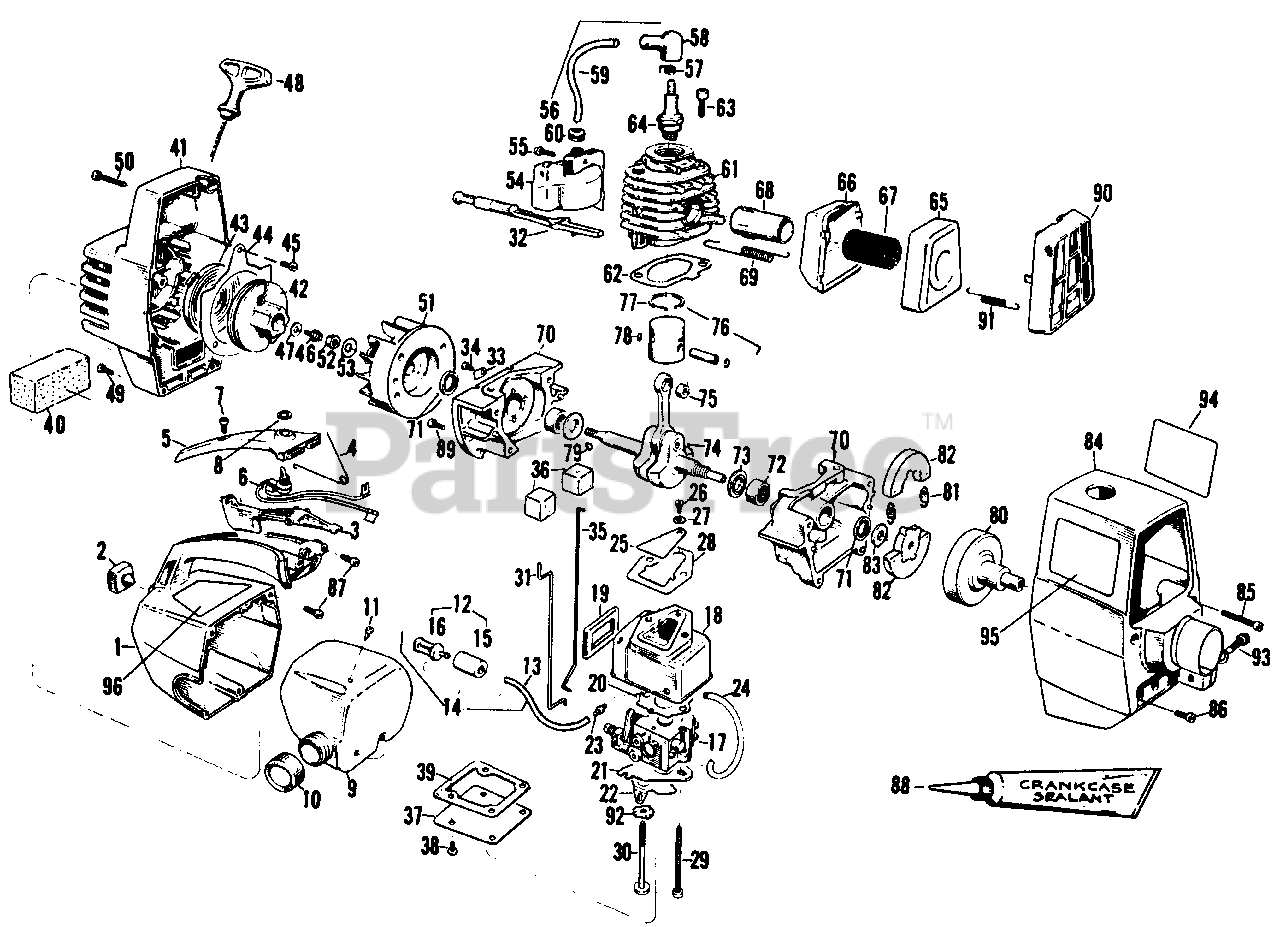

1800 - Lawn-Boy Edger/Trimmer (SN: 300000001 - 399999999) (1983) LB ENGINE GROUP 1800 Parts Diagram

Edger/Trimmer

LB ENGINE GROUP 1800 Parts Diagram

  • Title

1

Lawn-Boy 24657

Handle & Fuel Tank Housing

$

$

Currently unavailable

2

Lawn-Boy 24436

Bumper-Fuel Tank Housing

$

$

Currently unavailable

3

Lawn-Boy 24365

Trigger-Throttle

$

$

Currently unavailable

4

Lawn-Boy 24461

Trigger Spring

$

$

Currently unavailable

5

Lawn-Boy 24666

Handle Cover

$

$

Currently unavailable

6

Lawn-Boy 24891

Grounding Switch

$

$

Currently unavailable

7

Lawn-Boy 15247

Screw-Handle Cover

$

$

Currently unavailable

8

Lawn-Boy 23575

Nut-Grounding Switch

$

$

Currently unavailable

9

Lawn-Boy 10345

Fuel Tank (Includes 11 & 13)

$

$

Currently unavailable

10

Lawn-Boy 24437

Fuel Cap

$

$

Currently unavailable

11

Lawn-Boy 23166

Duck Bill Valve

$

$

Currently unavailable

12

Lawn-Boy 24483

Fuel Line Assy. (Includes 14 & 15)

$

$

Currently unavailable

13

Lawn-Boy 21042

Fuel Line

$

$

Currently unavailable

14

Lawn-Boy 24841

Fuel Line Pickup Assy. (Includes 16 & 17)

$

$

Currently unavailable

15

Lawn-Boy 34032

Fuel Filter

$

$

Currently unavailable

16

Lawn-Boy 24722

Fuel Filter Weight

$

$

Currently unavailable

17

Lawn-Boy 35148

Carburetor

$

$

Currently unavailable

18

Lawn-Boy 24409

Carburetor Housing

$3.23

$

Usually ships in 3-6 days

0

19

Lawn-Boy 19105

Seal Carburetor Case

$

$

Currently unavailable

20

Lawn-Boy 19115

Carburetor Gasket

$

$

Currently unavailable

21

Lawn-Boy 24301

Choke Wire Guide Plate

$

$

Not available

22

Lawn-Boy 24558

Choke Shutter

$

$

Currently unavailable

23

Lawn-Boy 23877

Fuel Line Fitting

$

$

Currently unavailable

24

Lawn-Boy 21043

Fuel Line Carburetor

$

$

Currently unavailable

25

Lawn-Boy 24438

Reed Valve

$

$

Currently unavailable

26

Lawn-Boy 15241

Screw-Reed Valve

$

$

Currently unavailable

27

Lawn-Boy 23367

Washer-Reed Valve Screw

$

$

Currently unavailable

28

Lawn-Boy 19108

Gasket-Carb. Housing to C'case

$

$

Currently unavailable

29

Lawn-Boy 15379

Screw Carburetor

$

$

Currently unavailable

30

Lawn-Boy 15404

Screw-Carburetor Shoulder

$

$

Currently unavailable

31

Lawn-Boy 24305

Choke Wire

$

$

Currently unavailable

32

Lawn-Boy 24303

Choke Knob

$

$

Currently unavailable

33

Lawn-Boy 24651

Clamp-Choke Wire

$

$

Currently unavailable

34

Lawn-Boy 15004

Screw-Choke Wire Clamp

$

$

Currently unavailable

35

Lawn-Boy 24902

Throttle Wire

$

$

Currently unavailable

36

Lawn-Boy 23373

Throttle-Choke Wire Boots

$3.23

$

Usually ships in 3-6 days

0

37

Lawn-Boy 24355

Cover-Carburetor Case

$

$

Currently unavailable

38

Lawn-Boy 15235

Screw-Carburetor Case Cover

$

$

Currently unavailable

39

Lawn-Boy 19112

Gasket-Carburetor Case Cover

$

$

Currently unavailable

40

Lawn-Boy 24371

Air Filter

$

$

Currently unavailable

41

Lawn-Boy 11639

Fan Housing
(Superseded to 700285-03)

$69.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 11624

Starter Pulley

$

$

Currently unavailable

43

Lawn-Boy 42061

Starter Recoil Spring

$

$

Currently unavailable

44

Lawn-Boy 24369

Air Baffle

$

$

Currently unavailable

45

Lawn-Boy 15373

Screw Air Baffle

$

$

Currently unavailable

46

Lawn-Boy 15036

Screw-Pulley

$

$

Currently unavailable

47

Lawn-Boy 15123

Washer-Starter Pulley Screw

$

$

Currently unavailable

48

Lawn-Boy 24451

Rope and Handle-Starter

$

$

Currently unavailable

49

Lawn-Boy 15168

Screw-Fan Housing Bottom

$

$

Currently unavailable

50

Lawn-Boy 15376

Screw-Fan Housing Top

$

$

Currently unavailable

51

Lawn-Boy 39114

Flywheel Assy

$

$

Currently unavailable

52

Lawn-Boy 626605

Nut-Flywheel

$

$

Currently unavailable

53

Lawn-Boy 15127

Washer-Flywheel

$

$

Currently unavailable

54

Lawn-Boy 39106

Module-Ignition

$

$

Currently unavailable

55

Lawn-Boy 15128

Screw-Ignition Module

$

$

Currently unavailable

56

Lawn-Boy 39103

High Tension Lead Assy. (Includes 58,59 & 60)

$

$

Currently unavailable

57

Lawn-Boy 3933

Connector-Spark Plug Lead

$

$

Currently unavailable

58

Lawn-Boy 3934

Boot-Spark Plug

$

$

Currently unavailable

59

Lawn-Boy 39082

High Tension Lead Wire

$

$

Currently unavailable

60

Lawn-Boy 24435

Grommet-Plug Wire

$

$

Currently unavailable

61

Lawn-Boy 11772

Cylinder

$

$

Currently unavailable

62

Lawn-Boy 19111

Gasket-Cylinder

$

$

Currently unavailable

63

Lawn-Boy 15239

Screw-Cylinder

$

$

Currently unavailable

64

Lawn-Boy 30058

Spark Plug (Champion RC-J8)

$174.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 24361

Cover Muffler

$

$

Currently unavailable

66

Lawn-Boy 24362

Body Muffler

$

$

Currently unavailable

67

Lawn-Boy 24364

Screen-Spark Arresting

$

$

Currently unavailable

68

Lawn-Boy 24363

Diffuser-Muffler

$

$

Currently unavailable

69

Lawn-Boy 24903

Spring-Muffler Attachment

$

$

Currently unavailable

70

Lawn-Boy 10316

Crankcase Assy. (Includes 72 & 73)

$

$

Currently unavailable

71

Lawn-Boy 19059

Seal-Crankshaft

$

$

Currently unavailable

72

Lawn-Boy 32058

Bearing-Crankshaft

$

$

Currently unavailable

73

Lawn-Boy 15351

Washer-Crankshaft Thrust

$

$

Currently unavailable

74

Lawn-Boy 22202

Crankshaft & Rod Assy

$

$

Currently unavailable

75

Lawn-Boy 32057

Bearing-Wrist Pin
(Superseded to 704667)

$

$

Not available

76

Lawn-Boy 22238

Piston Assy. (Includes 78 & 79)

$

$

Currently unavailable

77

Lawn-Boy 24929

Piston Ring

$

$

Currently unavailable

78

Lawn-Boy 15162

Retainer-Wrist Pin

$

$

Currently unavailable

79

Lawn-Boy 15126

Key-Flywheel

$

$

Currently unavailable

80

Lawn-Boy 10334

Drum Coupling & Bearing Assy

$

$

Currently unavailable

81

Lawn-Boy 92191

Spring-Clutch

$

$

Currently unavailable

82

Lawn-Boy 92241

Clutch Assembly (Includes 82)

$

$

Currently unavailable

83

Lawn-Boy 92214

Washer-Inner

$

$

Currently unavailable

84

Lawn-Boy 11775

Shroud

$

$

Currently unavailable

85

Lawn-Boy 15376

Screw-Shroud Top

$

$

Currently unavailable

86

Lawn-Boy 15168

Screw-Shroud Bottom

$

$

Currently unavailable

87

Lawn-Boy 15367

Screw-Fan Housing to handle & Fuel Tank

$

$

Currently unavailable

88

Lawn-Boy 30054

Crankcase-Sealant 3 oz. Tube

$193.99

$

Usually ships in 3-6 days

0

89

Lawn-Boy 15168

Screw-Crankcase

$

$

Currently unavailable

90

Lawn-Boy 24855

Guard-Muffler

$

$

Currently unavailable

91

Lawn-Boy 24932

Spring-Muffler Guard

$

$

Currently unavailable

92

Lawn-Boy 15254

Washer-Wave

$

$

Currently unavailable

93

Lawn-Boy 625509

Bolt-1/4-20 x 1" (Hex)

$

$

Currently unavailable

94

Lawn-Boy 905026

Decal-Shroud (left)

$

$

Currently unavailable

95

Lawn-Boy 905024

Decal-Shroud (right)

$

$

Currently unavailable

96

Lawn-Boy 24924

Decal-Starting Instruction

$3.23

$

Usually ships in 3-6 days

0

Lawn-Boy 35148

Carburetor Assembly

Note: Not Shown

$

$

Currently unavailable

Lawn-Boy 35144

Kit-Kwik Kit Repair

Note: Not Shown

$

$

Currently unavailable

Lawn-Boy 35145

Kit-Gasket/Diaphragm

Note: Not Shown

$

$

Currently unavailable
