1800 (5118 HR) - Troy-Bilt Tractor (SN: B060100101 - B060199999) LIFT ASSEMBLY Parts Diagram

Tractor

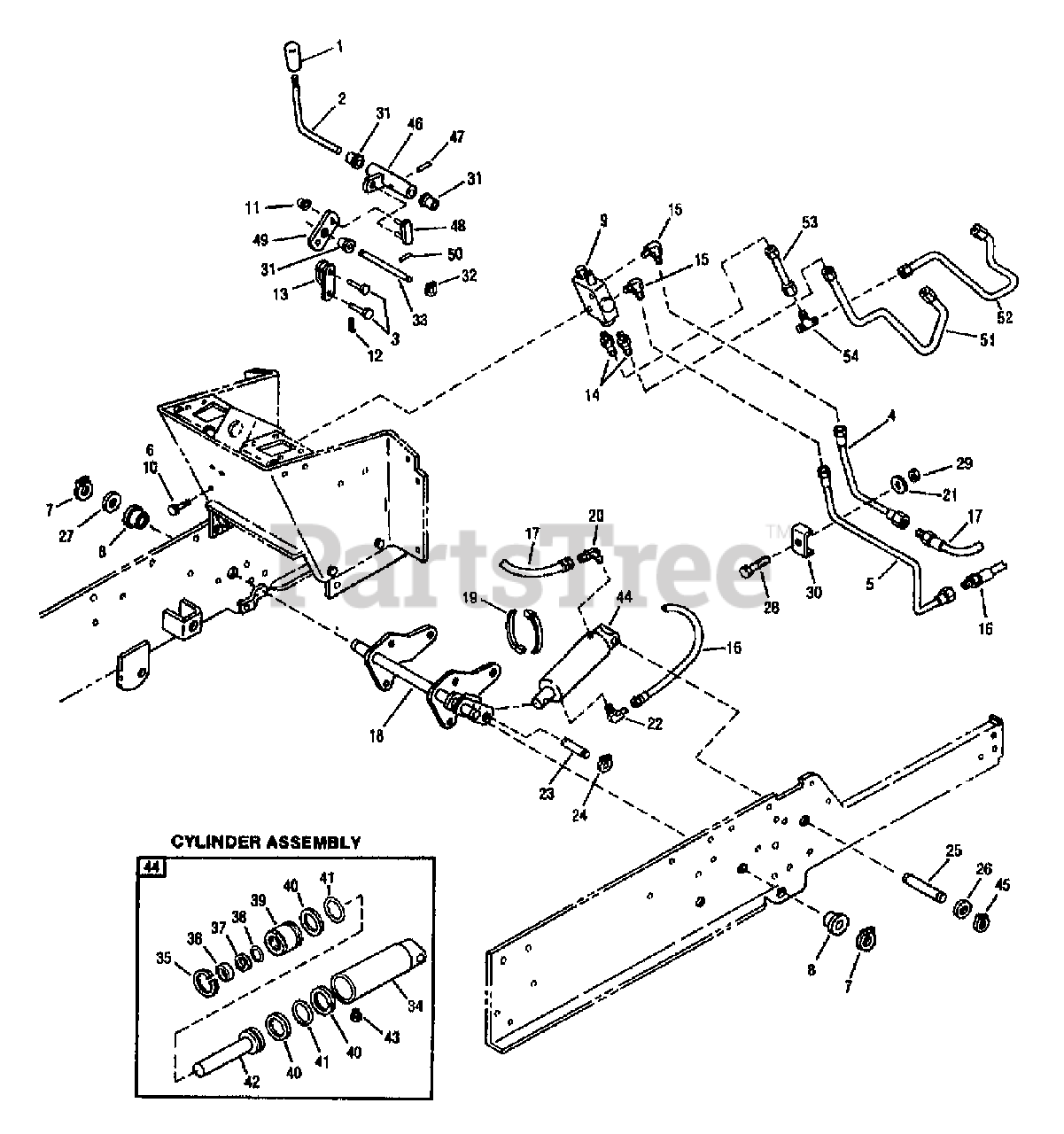

LIFT ASSEMBLY Parts Diagram

  • Title

1

MTD 1756877

KNOB

$

$

Not available

2

MTD 1755460

LEVER-CONTROL

$

$

Not available

3

MTD 1755559

PIN-CLEVIS .25X.81

$

$

Not available

4

MTD 1755232

ASSM-TUBE

$

$

Not available

5

MTD 1755233

ASSM-TUBE

$

$

Not available

6

MTD 1186316

SCR-HFLK 1/4-20X2.00 G5ZP

$

$

Not available

7

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1185728

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1752667010

VALVE

$

$

Currently unavailable

MTD 1751209

KIT-SEAL REPAIR

$

$

Not available

10

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1708072

PUSH NUT

$

$

Currently unavailable

12

MTD 1187385

PIN-COTTER

$

$

Not available

13

MTD 1755468

ASSM-VALVE LINK

$

$

Not available

14

MTD 1752690

CONNECTOR

$

$

Not available

15

Troy-Bilt 1185737

ELBOW
(Superseded to 727-3012)

$26.99

$

In Stock, only 4 left!

0

16

MTD 1752648

ASSM-HOSE

$

$

Not available

17

MTD 1755198

ASSM-HOSE

$

$

Not available

18

Troy-Bilt 1747510010

ASSM-SHAFT

$

$

Currently unavailable

19

Troy-Bilt 1755531

TIE-CABLE

$

$

Currently unavailable

20

MTD 1185903

ELBOW

$

$

Not available

21

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

22

MTD 1185739

ELBOW

$

$

Not available

23

MTD 1747512

PIN

$

$

Not available

24

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

25

MTD 1724703

PIN

$

$

Not available

26

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

30

MTD 1722667

CLAMP

$

$

Not available

31

MTD 1737018

BRG-FLANGE

$

$

Not available

32

MTD 1185427

RING-RETAINING

$

$

Not available

33

MTD 1755458

PIN-PIVOT

$

$

Not available

34

MTD 1729388

ASSM-CYL HYDRAULIC

$

$

Not available

35

Troy-Bilt 1118735

RING-RETAIN INT 2.210 DIA
(Superseded to 716-0188)

$

$

Not available

36

Troy-Bilt 1185266

SEAL-OIL
(Superseded to 921-0175)

$9.99

$

In Stock, Qty 8

0

37

MTD 1186019

RING-BACK/UP

$

$

Not available

38

MTD 1177395

RING-O .984 ID

$

$

Not available

39

MTD 1724511

HEAD-CYLINDER

$

$

Not available

40

MTD 1186018

RING-BACK/UP

$

$

Not available

41

MTD 1186017

RING-O 1.6 ID

$

$

Not available

42

Troy-Bilt 1747043

ASSM-ROD HYDR CYLINDER

$

$

Currently unavailable

43

MTD 1186278

PLUG-PIPE

$

$

Not available

44

MTD 1747509010

ASSM-CYL HYDRAULIC

$

$

Not available

45

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

46

MTD 1755472

ASSM-CONTROL ARM

$

$

Not available

47

Troy-Bilt 1713457

PIN-DRIVE
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 1755464

ASSM-CONTROL LINK

$

$

Currently unavailable

49

MTD 1755469

ARM-ROCKER

$

$

Not available

50

Troy-Bilt 1737015

PIN-ROLL .125 X .62
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

51

MTD 1755234

ASSM-TUBE

$

$

Not available

52

MTD 1755235

ASSM-TUBE

$

$

Not available

53

MTD 1752664

ASSM-TUBE

$

$

Not available

54

MTD 1185904

TEE

$

$

Not available
