1800 (5118 HR) - Troy-Bilt Tractor (SN: B060100101 - B060199999) HYDRO TRANSAXLE ASEMBLY Parts Diagram

Tractor

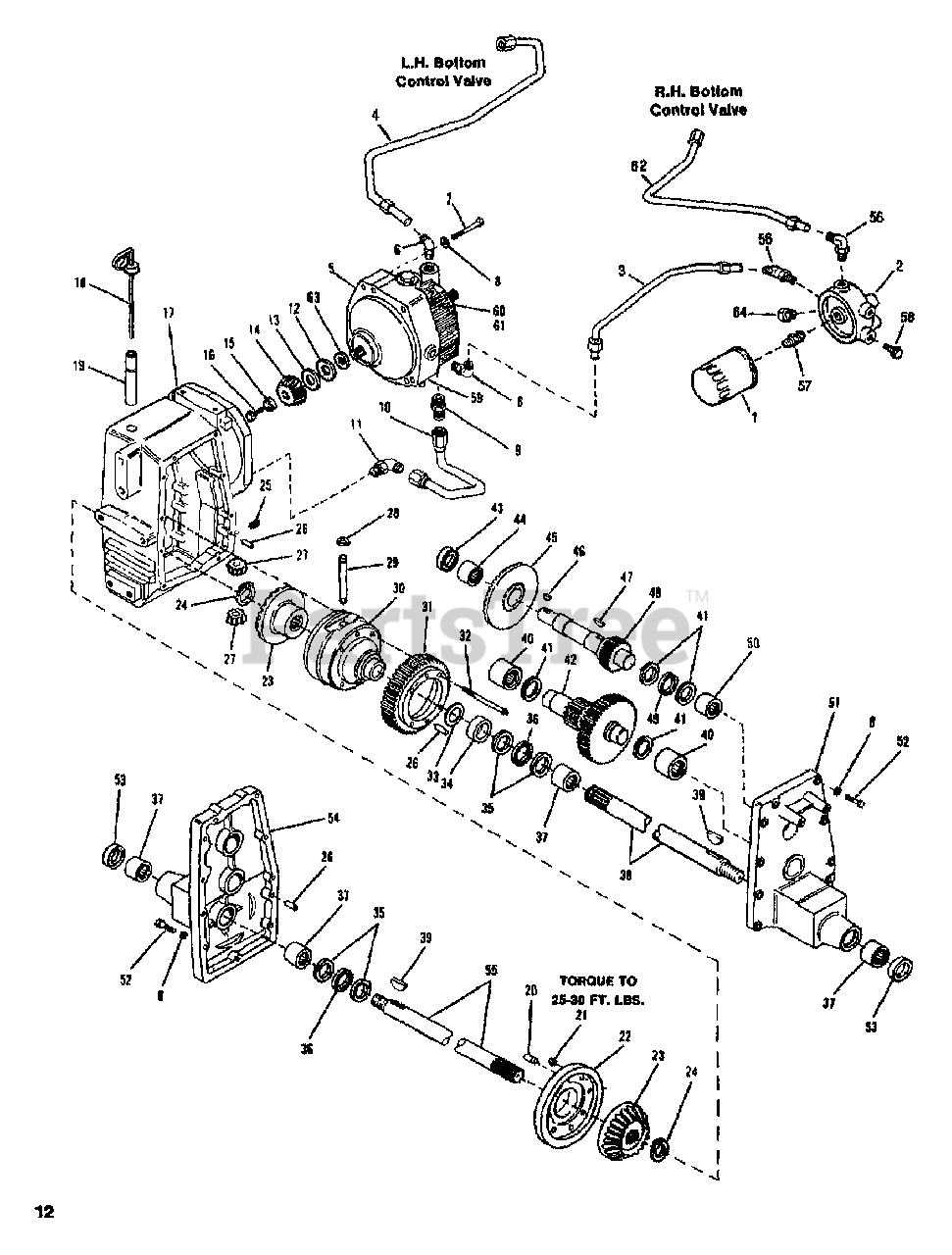

HYDRO TRANSAXLE ASEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1726450

FILTER-OIL

$

$

Not available

2

Troy-Bilt 1752734010

FILTER

$

$

Currently unavailable

3

MTD 1755237

ASSM-RETURN TUBE

$

$

Not available

4

MTD 1755236

ASSM-TUBE

$

$

Not available

5

MTD 1745147

TRANSMISSION-HYDRO

$

$

Not available

6

Troy-Bilt 1185737

ELBOW
(Superseded to 727-3012)

$26.99

$

In Stock, only 4 left!

0

7

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

8

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1186464

CONNECTOR

$

$

Not available

10

MTD 1729264

TUBE

$

$

Not available

11

MTD 1724390

ELBOW

$

$

Not available

12

MTD 1730374

WASHER-SHIM

$

$

Not available

13

MTD 1730375

WASHER-SHIM

$

$

Not available

14

Troy-Bilt 1729531

PINION-BEVEL

$

$

Currently unavailable

15

MTD 1729559

SPACER-1.0X.25X.25

$

$

Not available

16

Troy-Bilt 1741832

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0433)

$4.49

$

In Stock, only 2 left!

0

17

MTD 1747086010

HOUSING-TRANSAXLE

$

$

Not available

18

MTD 1724093

DIPSTICK

$

$

Not available

19

Troy-Bilt 1724091

TUBE

$

$

Currently unavailable

20

MTD 1733103

PIN-.312X.75

$

$

Not available

21

Troy-Bilt 1186459

NUT-HEX/LK 5/16-18 G5ZP

$

$

Not available

22

MTD 1728645

COVER-DIFFERENTIAL

$

$

Not available

23

MTD 1752094

GEAR-23T

$

$

Not available

24

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

25

MTD 1185930

PLUG-PIPE

$

$

Not available

26

MTD 1110189

PIN-DOWEL .375X1.00 ZP

$

$

Not available

27

MTD 1752095

PINION-10T

$

$

Not available

28

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

29

Troy-Bilt 1727641

KIT-PINION SHAFT

$

$

Currently unavailable

30

MTD 1729972

CARRIER-DIFFERENTIAL

$

$

Not available

31

Troy-Bilt 1729260

GEAR-AXLE 47T

$

$

Currently unavailable

32

Troy-Bilt 1733684

SCR-HFLK 5/16-18X4.00 ZP

$

$

Not available

33

Troy-Bilt 1800338

SHIM-1.875X1.013X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

34

MTD 1729497

SPACER-1.5X1.01X.45

$

$

Not available

35

Troy-Bilt 1185730

RACE-THRUST

$

$

Not available

36

Troy-Bilt 1185729

BEARING-THRUST
(Superseded to 741-3083)

$16.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 1727637

BEARING-NEEDLE

$

$

Currently unavailable

38

MTD 1747062

AXLE-RH

$

$

Not available

39

MTD 1100281

KEY-WOODRUFF .312X1.12

$

$

Not available

40

MTD 1186010

BEARING-NEEDLE

$

$

Not available

41

MTD 1186002

RACE-THRUST

$

$

Not available

42

MTD 1729258

ASSM-GEAR CLUSTER

$

$

Not available

43

MTD 1185882

SEAL-OIL

$

$

Not available

44

MTD 1187731

BEARING-NEEDLE

$

$

Not available

45

MTD 1724079

GEAR

$

$

Not available

46

MTD 1751775

KEY-WOODRUFF .25X.75

$

$

Not available

47

MTD 1100279

KEY-WOODRUFF .25X1

$

$

Not available

48

MTD 1751777

ASSM-PINION SHAFT

$

$

Not available

49

MTD 1185764

BEARING-THRUST

$

$

Not available

50

MTD 1185774

BEARING-NEEDLE

$

$

Not available

51

MTD 1747072010

COVER-TRANSAXLE RH

$

$

Not available

52

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

53

Troy-Bilt 1185295

SEAL-OIL
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 1747070010

COVER-TRANSAXLE LH

$

$

Currently unavailable

55

MTD 1747061

AXLE-LH

$

$

Not available

56

MTD 1185739

ELBOW

$

$

Not available

57

MTD 1721921

COUPLING

$

$

Not available

58

MTD 1186345

SCR

$

$

Not available

59

Troy-Bilt 1724370

SEAL-CONTROL SHAFT

$

$

Currently unavailable

60

Troy-Bilt 1724376

SEAL-OIL
(Superseded to ET-092999-000P)

$

$

Not available

61

Troy-Bilt 1724377

SHIELD-GRASS
(Superseded to ET-093902-000)

$

$

Not available

62

MTD 1752662

ASSM-TUBE

$

$

Not available

63

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

64

MTD 1105678

PLUG-PIPE

$

$

Not available

Troy-Bilt 1730118

SEALANT-GE RTV (3 OZ)

$

$

Currently unavailable
