1800 (13AK608H101) - Cub Cadet Garden Tractor Drive System Parts Diagram

Garden Tractor

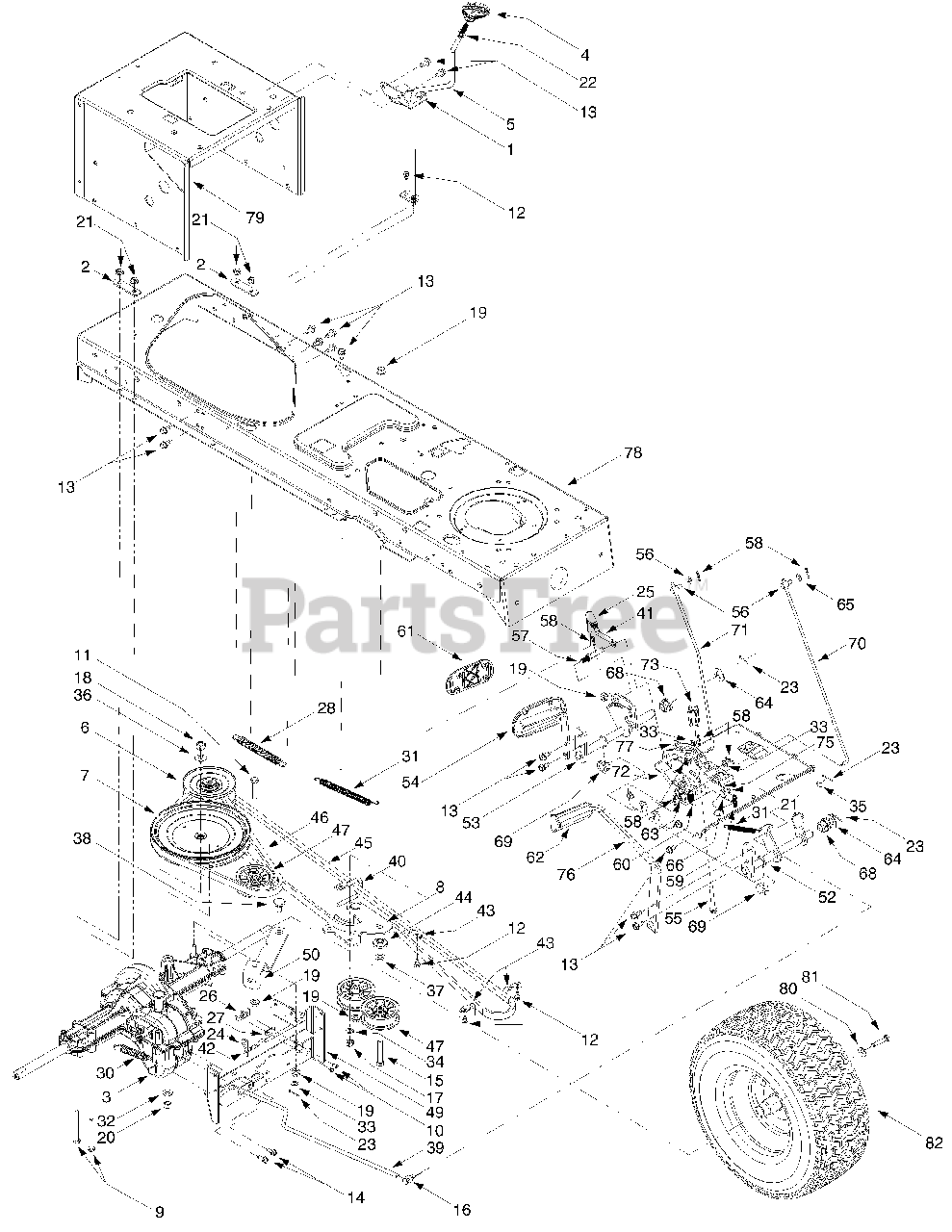

Drive System Parts Diagram

  • Title

1

Cub Cadet 17839

Shift Lever Bracket
(Superseded to 783-1016B)

$

$

Not available

2

Cub Cadet 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0307

Single-speed Transmission Assembly
(Superseded to 918-0551A)

$

$

Not available

4

Cub Cadet 631-0009

Shifter Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

5

Cub Cadet 647-0041

Shift Lever

$

$

Not available

6

Cub Cadet 656-0048

Variable-speed Pulley Assembly
(Superseded to 956-0048)

$

$

Not available

7

Cub Cadet 656-0051

Transmission Pulley, 8.5 x .5-36
(Superseded to 656-0051A)

$

$

Not available

8

Cub Cadet 683-0251

Double-idler Bracket

$

$

Not available

9

Cub Cadet 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

10

Cub Cadet 710-0227

Self Tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

Cub Cadet 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0798

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

24

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

25

Cub Cadet 723-0156

Ball Joint, 3/8-24
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

26

Cub Cadet 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

27

Cub Cadet 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

28

Cub Cadet 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

?29

Cub Cadet 732-0525

Compression Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 732-0716

Extension Spring, .59 OD x 4
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

31

Cub Cadet 732-0963

Extension Spring, .50 Dia. x 6.37

Note: (Hooks to flange, 783-0650, in frame)

$9.99

$

In Stock, only 4 left!

0

32

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

34

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 12

0

37

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 738-0322

Shoulder Screw, .625 x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

39

Cub Cadet 747-1122

Brake Rod

$

$

Not available

40

Cub Cadet 747-1123

Belt Guard

$

$

Not available

41

Cub Cadet 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-1156

Shift Rod

$

$

Not available

43

Cub Cadet 747-1160

Belt Guard Rod

$

$

Not available

44

Cub Cadet 748-0416

Shoulder Spacer, .38 ID

$

$

Not available

45

Cub Cadet 754-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

46

Cub Cadet 754-0468

Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 13

0

47

Cub Cadet 756-0981

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

?48

Cub Cadet 783-0637

Shift Lever Support

Variations

Cub Cadet 783-0637-0637

SHIFT LINK - POWDER BLACK (0637)

$

$

Not available

$

$

49

Cub Cadet 783-0667

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

Cub Cadet 783-0667-0637

USE 783-0667A-0637 BRACKET-TR - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

Cub Cadet 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

?51

Cub Cadet 783-0714

Adjustable Shift Bracket

$

$

Not available

52

Cub Cadet 647-0031

Brake Control Assembly
(Superseded to 753-05606)

$

$

Not available

53

Cub Cadet 647-0032

Speed Control Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

54

Cub Cadet 683-0266

Auto Drive - Pedal Assembly

$

$

Not available

55

Cub Cadet 710-1135

Self Tapping Screw, 5/16-18 x 2.5

$

$

Not available

56

Cub Cadet 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

Cub Cadet 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 1 left!

0

60

Cub Cadet 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

61

Cub Cadet 735-0662

Auto Drive - Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

63

Cub Cadet 736-0140

Flat Washer, .281 x .5 x .0625

$7.49

$

In Stock, Qty 7

0

64

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

?67

Cub Cadet 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, only 4 left!

0

68

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

69

Cub Cadet 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$8.49

$

In Stock, Qty 11

0

70

Cub Cadet 747-1137

Cruise Control Rod

$

$

Not available

71

Cub Cadet 747-1138

Brake Lock Control Rod

$

$

Not available

72

Cub Cadet 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 748-0415

Spacer, 5/16 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

?74

Cub Cadet 783-0653

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$89.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653-0691

Steering Support Bracket - BLACK JACK (0691)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

75

Cub Cadet 783-0732

Auto Drive - Lockout Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 783-0773

Brake Pedal

Variations

Cub Cadet 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

77

Cub Cadet 783-0780

Neutral Return Bracket
(Superseded to 753-04872)

Variations

Cub Cadet 783-0780-0637

USE 753-04872 KIT-NEUT RTN BR - POWDER BLACK (0637)

$

$

Not available

$

$

78

Cub Cadet 683-0263A

Lower Frame Assembly

Variations

Cub Cadet 683-0263A-0498

LOWER FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0263A-0637

LOWER FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0263A-0665

LOWER FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0263A-0691

LOWER FRAME ASSEMBLY - BLACK JACK (0691)

$

$

Not available

$

$

79

Cub Cadet 783-0668

Hitch Plate

Variations

Cub Cadet 783-0668-0498

HITCH PLATE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0668-0637

PLATE-HITCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0668-0665

PLATE-HITCH (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0668-0691

PLATE-HITCH (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

80

Cub Cadet 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 634-0177

Wheel Assembly Complete, 20 x 10 x 8

Variations

Cub Cadet 634-0177-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0177-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0994

USE 634-0177-0991 WHEEL ASM-C - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-4009

USE 634-0177-0991 WHEEL ASM-C - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104

Wheel Assembly Complete, 20 x 8 x 8

Variations

Cub Cadet 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0104-0912

USE 634-0104-0911 WHEEL ASSY - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0104-0914

USE 634-0104-0911 WHEEL ASSY - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0104-0915

USE 634-0104-0911 WHEEL ASSY - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0942

USE 634-0104-0941 WHEEL ASSY - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0945

USE 634-0104-0941 WHEEL ASSY - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-4009

USE 634-0104-0991 WHEEL ASSY - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0104-0981

WHEEL ASSEMBLY (20 x 8 x 8) - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0077

Rim Only

$

$

Currently unavailable

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 734-1873

Tire Only, 20 x 10 x 8, Square Shoulder

Variations

Cub Cadet 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$106.99

$

Usually ships in 3-6 days

0

$246.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Variations

Cub Cadet 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

Cub Cadet OEM-190-916

Tire Chain
(Superseded to 490-241-0024)

Note: For 20 x 10 x 8 tire (must be used on this model); Not Shown

$96.99

$

Usually ships in 3-6 days

0
