180 (UT-10727-C) - Homelite Chainsaw Starter & Fuel Tank Parts Diagram

Chainsaw

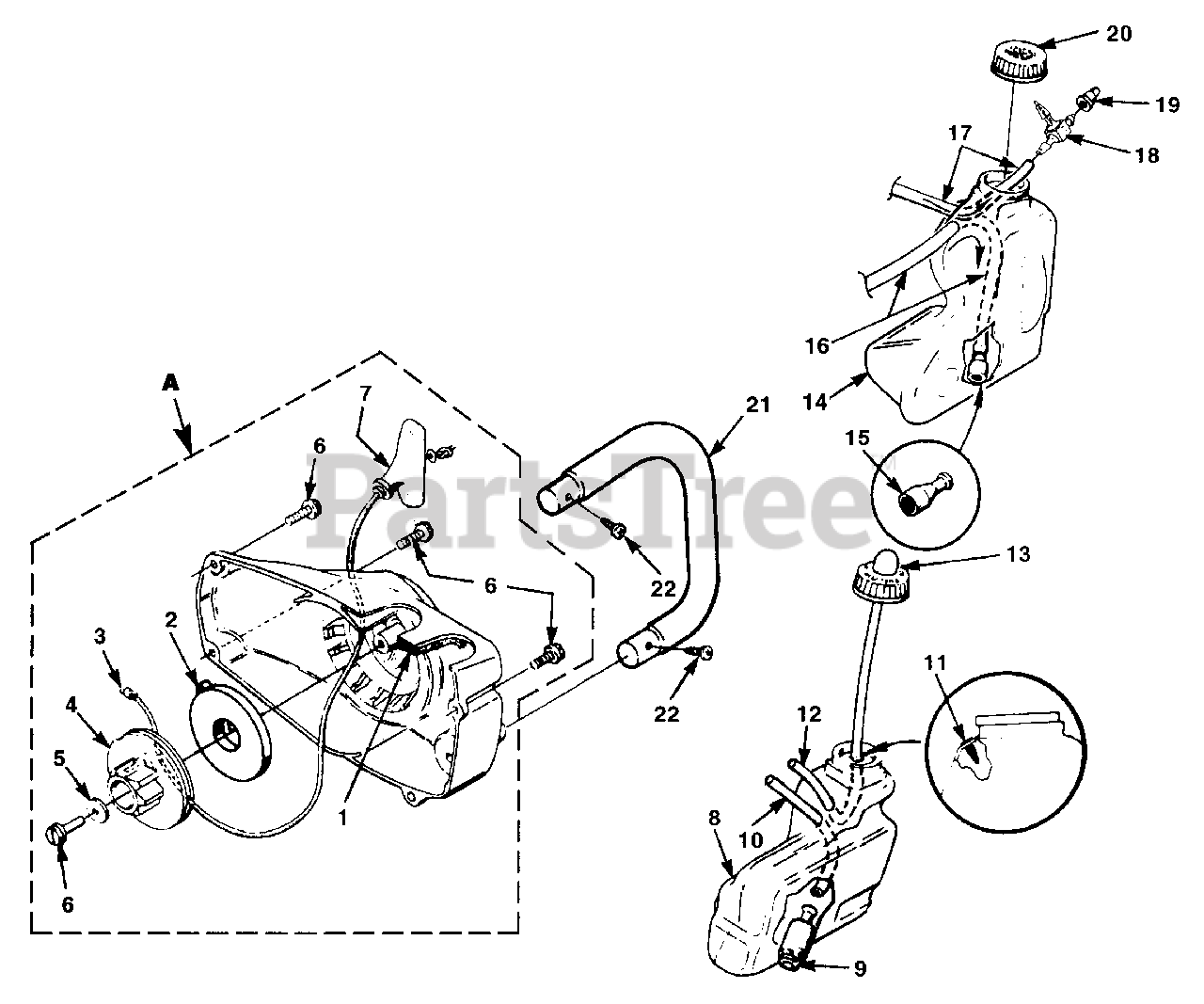

Starter & Fuel Tank Parts Diagram

  • Title

A

Homelite A06268A

STARTER ASSY., Complete

$

$

Currently unavailable

1

Homelite 69443

FILTER

$

$

Not available

2

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

3

Homelite 9789901

ROPE - Starter (46")
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

Homelite 98052A

ROPE - Starter (250 Ft. Reel)

$

$

Not available

4

Homelite 97768B

PULLEY - Starter
(Superseded to UP05460)

$

$

Not available

5

Homelite 94062

WASHER - Retaining

$

$

Not available

6

Homelite 82563

SCREW - Torx (#10 X 3/4")

Note: (Torque Specs: 30-50 in/lbs, 3.4-5.8 Nm)

$1.99

$

In Stock, Qty 6

0

7

Homelite 02264

GRIP - Starter
(Superseded to UP03832)

$

$

Not available

8

Homelite A06272

FUEL TANK

$

$

Not available

9

Homelite 49422

FILTER - Fuel
(Superseded to PS03380)

$

$

Not available

10

Homelite 0745422

LINE - Fuel (5 1/2")

$9.49

$

In Stock, only 1 left!

0

11

Homelite 98819

VALVE - Duck Bill

$

$

Not available

12

Homelite 0745425

TUBING - Return (6 1/4")

$

$

Not available

Homelite 0745499

TUBING - Rubber (10 Ft. Length)

$

$

Not available

13

Homelite A01372A

PRIMER & CAP

$

$

Not available

14

Homelite A07554

OIL TANK

$

$

Currently unavailable

15

Homelite A68593

FINDER - Oil

$

$

Not available

16

Homelite 0745432

TUBING - Rubber (8")

$

$

Not available

17

Homelite 0745420

TUBING - Rubber (5")

$

$

Currently unavailable

18

Homelite A07508

FITTING - Vent

$6.99

$

Usually ships in 3-7 days

0

19

Homelite 96841

VALVE - Check
(Superseded to UP07204)

$

$

Not available

20

Homelite A97359A

OIL CAP
(Superseded to DA92701C)

$

$

Currently unavailable

21

Homelite A07558

HANDLE BAR

$

$

Currently unavailable

22

Homelite 94065

SCREW - Pan Plastite (#10-16 X 3/4")

Note: (Torque Specs: 15-20 in/lbs, 1.7-2.3 Nm)

$

$

Not available
