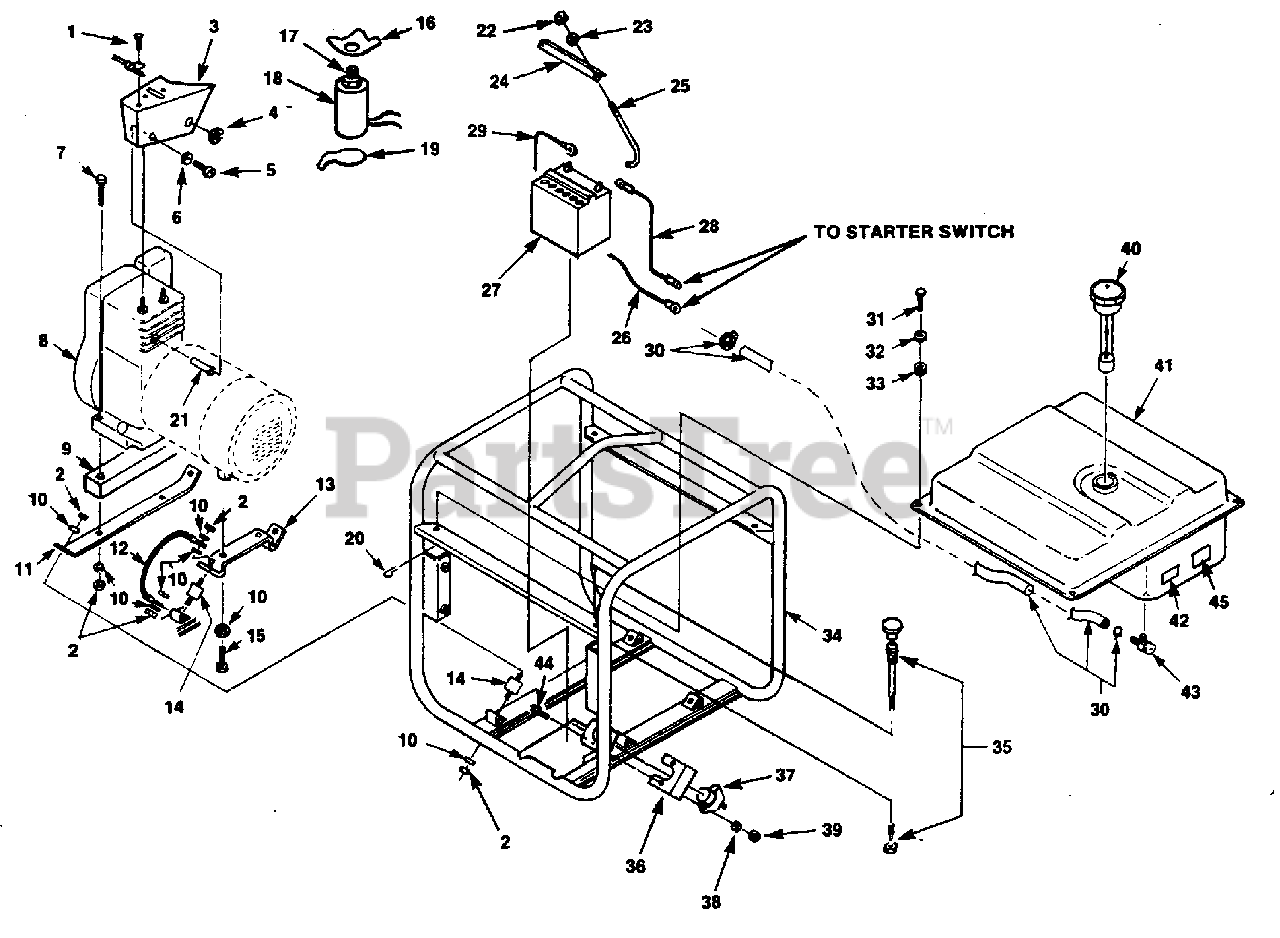

180 RIE62 (UT-03643) - Homelite Heavy-Duty Generator Tank & Frame Parts Diagram

Heavy-Duty Generator

Tank & Frame Parts Diagram

  • Title

1

Homelite 82279

SCREW- Tap Pan Hd. (#8-18 x 3/8)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 81162

NUT- Hex 5/16-18

$

$

Not available

3

Homelite 493161

DEFLECTOR- Air

$

$

Currently unavailable

4

Homelite 49122

GROMMET

$

$

Not available

5

Homelite 88127

SCREW- Hex 6mm x 40mm

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 83061

WASHER- 1/4

$

$

Not available

7

Homelite 80288

SCREW- Cap Hex Hd. (5/16-18 x 1 1/4)
(Superseded to UP03388)

$

$

Not available

8

Homelite A49713S

ENGINE- 11 H.P.

$

$

Currently unavailable

9

Homelite 49349

SPACER

$64.99

$

Usually ships in 3-7 days

0

10

Homelite 83081

WASHER- Int. Lock 5/16

$

$

Not available

11

Homelite 49265

SUPPORT- Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

12

Homelite A49399

GROUND- Strap

$

$

Currently unavailable

13

Homelite 48944

SUPPORT- Generator

$

$

Not available

14

Homelite 49367

VIBRATOR ISOLATOR
(Superseded to UP03483)

$

$

Not available

15

Homelite 82206

SCREW- Thread Forming (5/16-18 x 1)

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 49341

BRACKET- Magnet

$7.49

$

Usually ships in 3-7 days

0

17

Homelite 810652

NUT- Hex 1/4-28
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

18

Homelite A43008

ELECTROMAGNET

$

$

Currently unavailable

19

Homelite 49342

ARM- Throttle

$

$

Not available

20

Homelite 49412

PIN- Cotter

$

$

Not available

21

Homelite 49392

SPACER

$

$

Not available

22

Homelite 81092

NUT- Hex #10

$

$

Not available

23

Homelite 83046

WASHER- Lock #10

$

$

Not available

24

Homelite 496991

STRAP- Battery

$

$

Not available

25

Homelite 49700

BOLT- Battery

$

$

Not available

26

Homelite A49332

LEAD- Electrical

$

$

Currently unavailable

27

Homelite JA376080

BATTERY

$

$

Currently unavailable

28

Homelite JA376123

CABLE- Battery (Red)

$

$

Currently unavailable

29

Homelite JA376124

CABLE- Battery (Black)
(Superseded to UP03456)

$

$

Not available

30

Homelite A49306

FUEL LINE ASSEMBLY
(Superseded to UP03517)

$

$

Not available

31

Homelite 49329

PIN- Clevis

$

$

Not available

32

Homelite 84006

WASHER- Flat

$

$

Not available

33

Homelite 49351

GROMMET- Isolator

$

$

Not available

34

Homelite A497201

ROLL CAGE

$

$

Currently unavailable

35

Homelite 49333

CABLE- Choke

$

$

Not available

36

Homelite 49662

COVER-Switch

$14.99

$

Usually ships in 3-7 days

0

37

Homelite 49705

SWITCH- Starter
(Superseded to UP03487)

$

$

Not available

38

Homelite 83009

WASHER-Lock 1/4

$8.49

$

Usually ships in 3-7 days

0

39

Homelite 81053

NUT- Hex 1/4-20

$

$

Not available

40

Homelite 49179

CAP-Fuel

$

$

Not available

41

Homelite 489311

TANK- Fuel

$

$

Currently unavailable

42

Homelite 49340

DECAL- Fuel Valve
(Superseded to UP07235)

$

$

Not available

43

Homelite 49005

FUEL VALVE

$

$

Not available

44

Homelite 80044

SCREW- 1/4-20 x 1/2

$

$

Not available

45

Homelite 49598

DECAL- Caution

$

$

Not available
