180 RIE62 (UT-03643) - Homelite Heavy-Duty Generator Generator & Control Box Parts Diagram

Heavy-Duty Generator

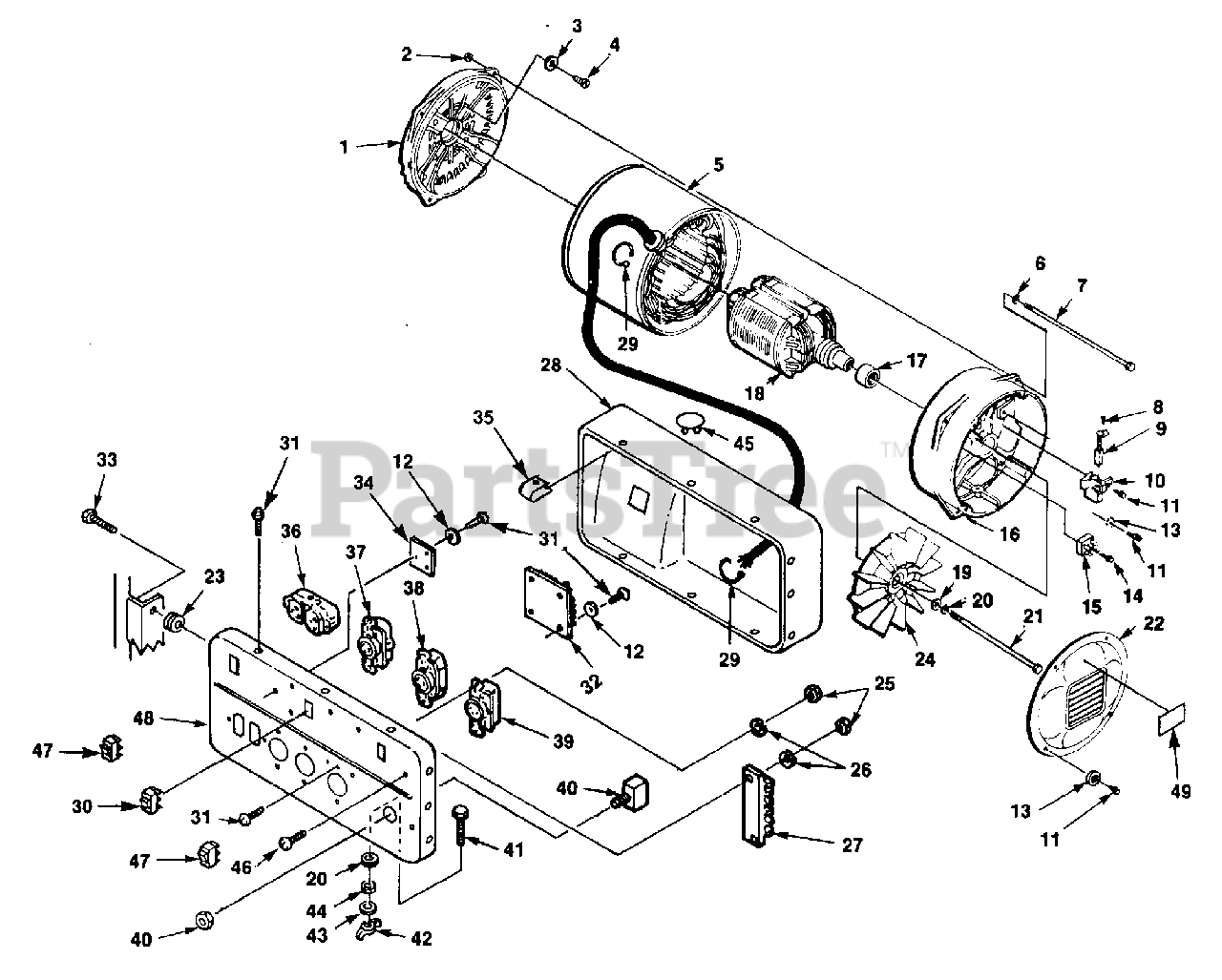

Generator & Control Box Parts Diagram

  • Title

1

Homelite 5375221

END BELL
(Superseded to 5375226)

$

$

Not available

2

Homelite 81053

NUT-HEX 1/4-20

$

$

Not available

3

Homelite 83117

WASHER-Lock

$3.99

$

Usually ships in 3-7 days

0

4

Homelite 80187

SCREW-Hex-Hd 3/8-16 x 7/8
(Superseded to PS80187)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite A49331S

STATOR SHELL
(Superseded to A49331AS)

$

$

Not available

6

Homelite 83070

WASHER-Lock Int. 1/4

$

$

Not available

7

Homelite 49171

BOLT- Stator
(Superseded to 4885304)

$

$

Not available

8

Homelite 80260

SCREW Mach. pan. hd. 8-32 x 3/8

$

$

Not available

9

Homelite 53762

BRUSH

$

$

Not available

10

Homelite 53760

BRUSH HOLDER

$29.99

$

Usually ships in 3-7 days

0

11

Homelite 82474

SCREW- Thd rolling

$

$

Not available

12

Homelite 84025

WASHER #8 flat

$

$

Not available

13

Homelite 83022

WASHER #8
(Superseded to UP03410)

$

$

Not available

14

Homelite 82205

SCREW- Hex tap. 8-32 x 3/4

$

$

Not available

15

Homelite 53818

RECTIFIER
(Superseded to 53818A)

$

$

Not available

16

Homelite 537592

BRUSH HEAD
(Superseded to UP07292)

$

$

Not available

17

Homelite 53819

BEARING

$

$

Not available

18

Homelite A49094S

ROTOR

$

$

Not available

19

Homelite 84058

WASHER-Flat 5/16

$

$

Not available

20

Homelite 83002

WASHER-Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 49172

BOLT-Rotor

$

$

Currently unavailable

22

Homelite 513941

BRUSH HEAD COVER

$

$

Currently unavailable

23

Homelite 49351

GROMMET

$

$

Not available

24

Homelite A53769

FAN-Generator

$

$

Currently unavailable

25

Homelite 81009

NUT-Hex 8-32

$

$

Not available

26

Homelite 83060

WASHER-Point Set Lock #8
(Superseded to UP07171)

$

$

Not available

27

Homelite 42366

BLOCK-Terminal

$

$

Not available

28

Homelite A49271

PANEL COVER
(Superseded to UP07058)

$

$

Not available

29

Homelite 46840

CABLE-Tie

$

$

Not available

30

Homelite 49569

SWITCH (DPDT)

$

$

Not available

31

Homelite 80577

SCREW-Pan hd. #8-32 x .375
(Superseded to UP03389)

$

$

Not available

32

Homelite A48999C

VOLTAGE REGULATOR

$

$

Currently unavailable

33

Homelite 49748

SCREW

$

$

Not available

34

Homelite A49654

IDLE-Control
(Superseded to UP06353)

$

$

Not available

35

Homelite 81227

NUT-Speed

$

$

Not available

36

Homelite 50991

RECEPTACLE
(Superseded to UP03497)

$

$

Not available

37

Homelite 48978

RECEPTACLE

$

$

Not available

38

Homelite 42601

RECEPTACLE-Locking

$

$

Not available

39

Homelite 46508

RECEPTACLE-Locking

$

$

Not available

40

Homelite 48952

CIRCUIT BREAKER

$

$

Not available

41

Homelite 80086

SCREW-Hex hd. 5/16-18 x 1/8
(Superseded to 80088)

$

$

Not available

42

Homelite 81015

WING NUT-5/16-18

$

$

Not available

43

Homelite 83081

WASHER-Lock 5/16

$

$

Not available

44

Homelite 81018

NUT-Hex 5/16-18

$

$

Not available

45

Homelite 49368

CLAMP-Cable

$

$

Not available

46

Homelite 80582

SCREW-Pan Hd 8-32 x 5/8

$

$

Not available

47

Homelite 49299

SWITCH-Rocker

$

$

Not available

48

Homelite A49617

CONTROL PANEL

$

$

Currently unavailable

49

Homelite 49613

DECAL-Warning

$

$

Not available
