180 BT - Husqvarna Backpack Blower (2008-10) BT Throttle / Switch Wires Parts Diagram

Backpack Blower

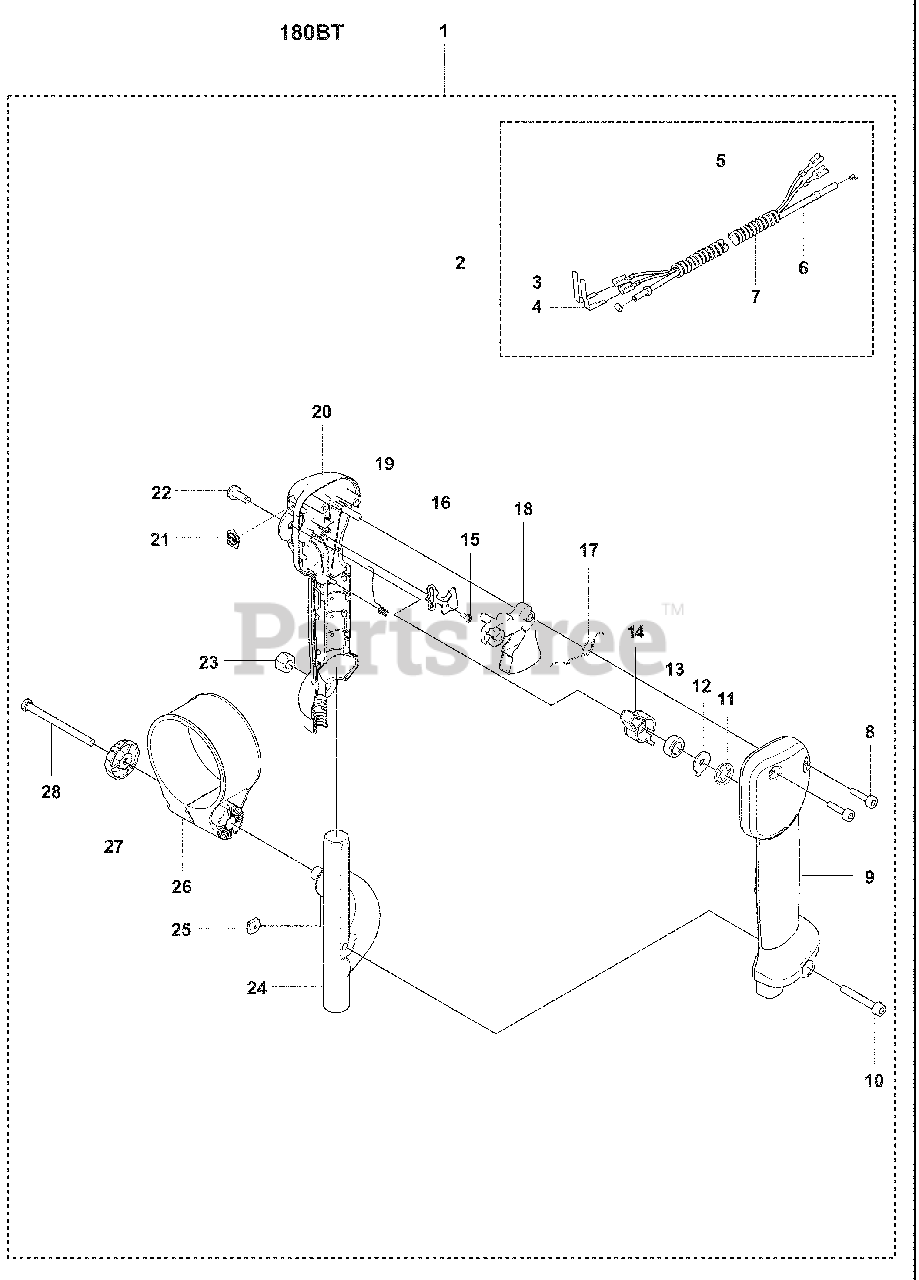

BT Throttle / Switch Wires Parts Diagram

  • Title

1

Husqvarna 505121601

HANDLE ASSY
(Superseded to 528915202)

$

$

Not available

2

Husqvarna 505004001

Wiring Assembly, 380BTS
(Superseded to 575993701)

$

$

Not available

3

Husqvarna 537226201

Contact Spring

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537226301

Contact Spring

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 505181701

Cord

$9.49

$

In Stock, only 3 left!

0

6

Husqvarna 505181801

Cable

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505181901

Tube

$

$

Not available

8

Husqvarna 503216618

Screw

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 502244901

Right Half Handle

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503200735

Screw, Ihscfm M5 X 35 10.9 ZP
(Superseded to 503200782)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 735583501

Washer

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505181501

Washer

$3.49

$

In Stock, Qty 7

0

13

Husqvarna 537373901

Spring, Rubber
(Superseded to 591176401)

$6.49

$

In Stock, Qty 5

0

14

Husqvarna 502245501

Stop Lever

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 503212906

Screw

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 502246001

Retainer

$17.99

$

In Stock, only 4 left!

0

17

Husqvarna 537174201

Spring

$6.49

$

In Stock, only 4 left!

0

18

Husqvarna 502245401

Trigger

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505567901

Spring

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 502244801

Left Half Handle

$22.99

$

In Stock, only 3 left!

0

21

Husqvarna 502641701

Plate

$3.49

$

In Stock, Qty 6

0

22

Husqvarna 505181601

Shaft

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503221013

Nut

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 502245301

Holder

$11.99

$

In Stock, Qty 6

0

25

Husqvarna 503226504

Square Nut

$6.49

$

In Stock, Qty 13

0

26

Husqvarna 544275901

HOLDER TH
(Superseded to 511797501)

$

$

Not available

27

Husqvarna 502204001

Air Filter Cover Knob

$6.49

$

In Stock, Qty 13

0

28

Husqvarna 725234451

Screw

$7.49

$

In Stock, Qty 16

0
