18 H - Husqvarna Hedge Trimmer (SN: 19953200001 - 19960900000) CARBURETOR DETAILS Parts Diagram

Hedge Trimmer

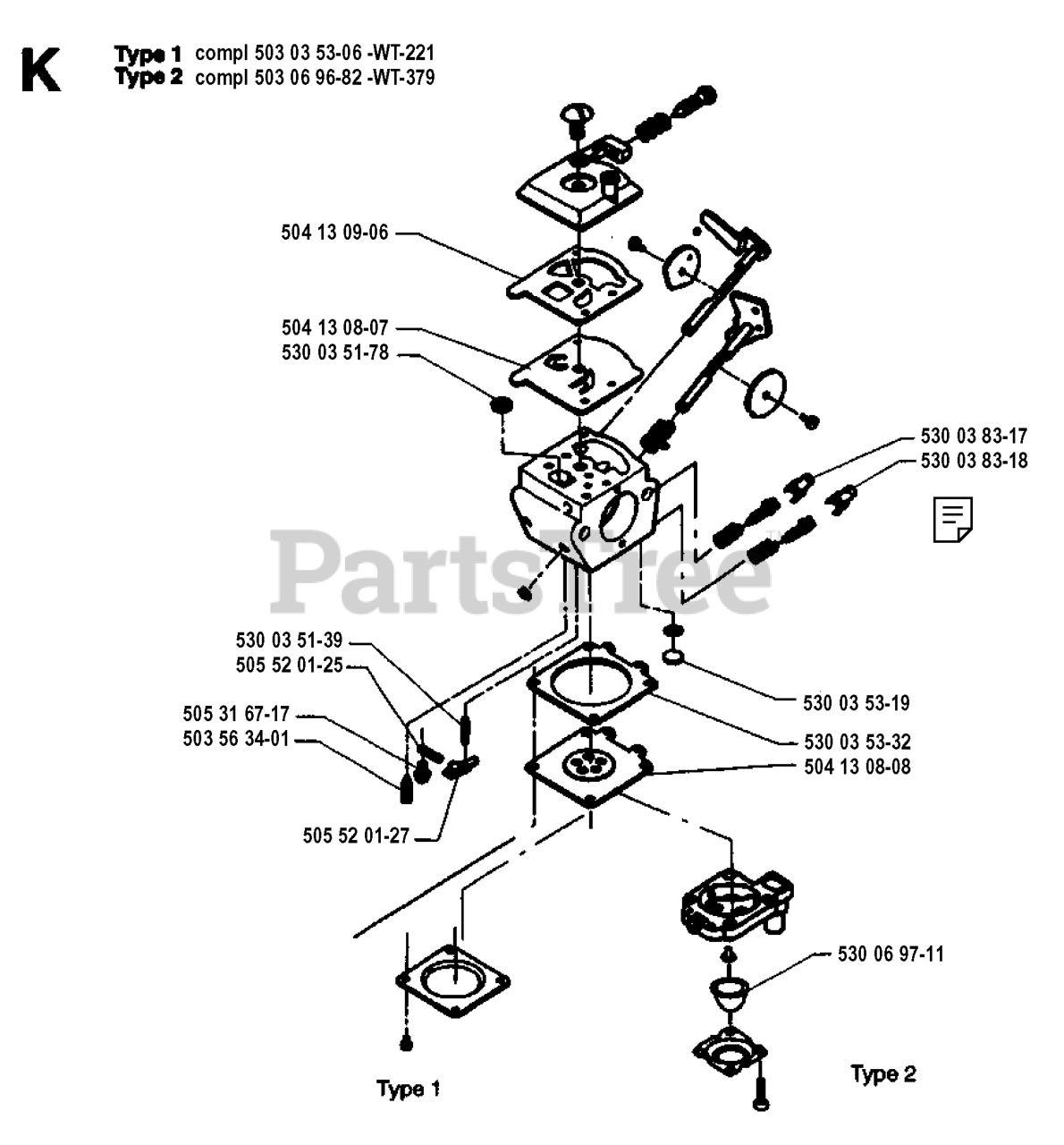

CARBURETOR DETAILS Parts Diagram

  • Title

530 03 51-39

Husqvarna 530035139

SPRING, MOTOR LEVER
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

530 03 51-78

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

504 13 08-08

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

530 06 97-11

Husqvarna 530069711

PRIMER BULB NLA

Note: TYPE 2

$

$

Not available

530 03 53-32

Husqvarna 530035332

GASKET-METERING DIAPHRAGM
(Superseded to 530035320)

$4.99

$

Usually ships in 3-10 days

0

503 03 53-06

Husqvarna 503035306

Note: TYPE 1 WT-221

$

$

Currently unavailable

530 03 53-19

Husqvarna 530035319

WELCH PLUG

$

$

Not available

503 06 96-82

Husqvarna 503069682

Note: TYPE 2 WT-379

$

$

Currently unavailable

530 03 83-18

Husqvarna 530038318

LIMITER CAP (HIGH-RED)

$3.99

$

In Stock, Qty 20+

0

505 52 01-27

Husqvarna 505520127

LEVER

Note: TYPE 1

$5.99

$

Usually ships in 3-10 days

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

504 13 08-07

Husqvarna 504130807

PUMP DIAPHRAGM

$31.99

$

In Stock, Qty 6

0

530 03 83-17

Husqvarna 530038317

LIMITER CAP (LOW-BLUE)

$3.99

$

Usually ships in 3-10 days

0

504 13 09-06

Husqvarna 504130906

GASKET

$11.99

$

In Stock, only 3 left!

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0
