18-2818-78 (6210700x111N) - Mountfield MN421 21" Snow Thrower (2007) Handle Assembly Parts Diagram

MN421 21" Snow Thrower

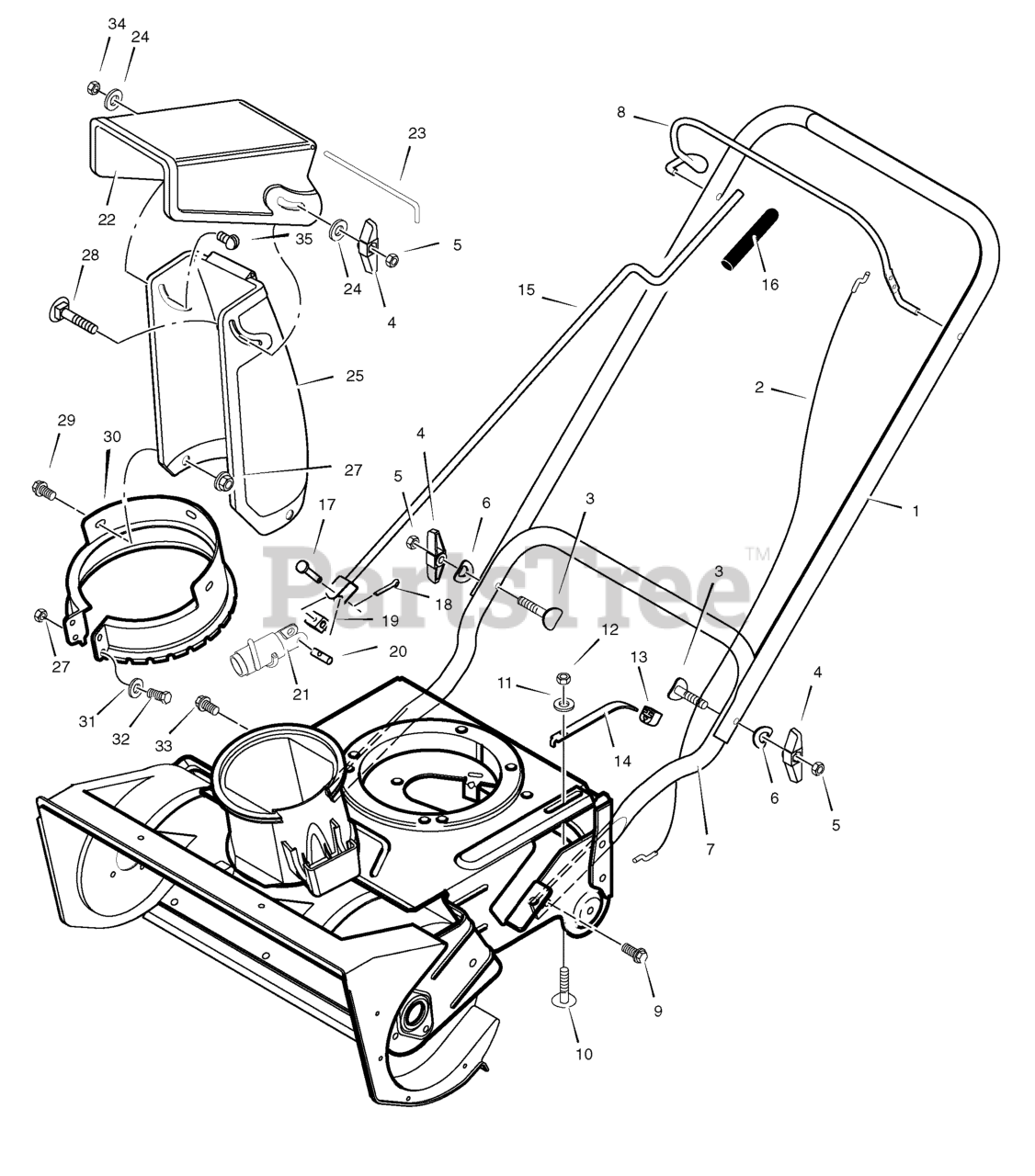

Handle Assembly Parts Diagram

  • Title
1

Murray 762252E701MA

Handle, Upper
(Superseded to 1502129E701MA)

$

$

Not available

2

Murray 762259MA

Cable, Auger Drive

$12.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 2-12 days

0

4

Murray 57171MA

Knob
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 5

0

5

Murray 71037MA

Nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

$7.49

$

In Stock, only 2 left!

0

7

Murray 762250E701MA

Handle, Lower

$176.99

$

In Stock, only 1 left!

0

8

Murray 762251E701MA

Lever, Auger Drive

$

$

Not available

9

Murray 25X021MA

Screw
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

$5.49

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

13

Murray 762281MA

Bushing, Tensioner

$8.99

$

In Stock, Qty 6

0

14

Murray 762282MA

Bracket, Cable Tensioner

$8.49

$

In Stock, only 3 left!

0

15

Murray 762362MA

Rod, Crank

$68.99

$

Usually ships in 2-12 days

0

16

Murray 762289MA

Grip, Crank Rod

$4.49

$

Usually ships in 2-12 days

0

17

Murray 578309MA

Pin, Clevis

$5.49

$

In Stock, Qty 6

0

18

Murray 579493MA

Pin, Cotter

$4.49

$

In Stock, only 1 left!

0

19

Murray 578063MA

Block, Universal Pivot

$5.49

$

In Stock, only 2 left!

0

$7.49

$

Usually ships in 2-12 days

0

21

Murray 585196MA

Gear, Worm

$11.99

$

In Stock, Qty 6

0

22

Murray 325847MA

Deflector

$51.99

$

In Stock, Qty 12

0

23

Murray 308931MA

Pin, Pivot

$12.99

$

Usually ships in 2-12 days

0

24

Murray 71071MA

Washer
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

25

Murray 334234MA

Chute, Discharge

$43.99

$

Usually ships in 2-12 days

0

$4.99

$

In Stock, Qty 13

0

28

$

$

Not available

29

$3.99

$

In Stock, only 2 left!

0

30

Murray 1501846MA

Ring, Chute

$38.99

$

In Stock, only 1 left!

0

31

$4.49

$

In Stock, only 1 left!

0

32

$4.49

$

In Stock, Qty 7

0

33

Murray 25X021MA

Bolt
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

34

Murray 71391MA

Locknut

$4.49

$

Usually ships in 2-12 days

0

35

$4.99

$

In Stock, only 1 left!

0
