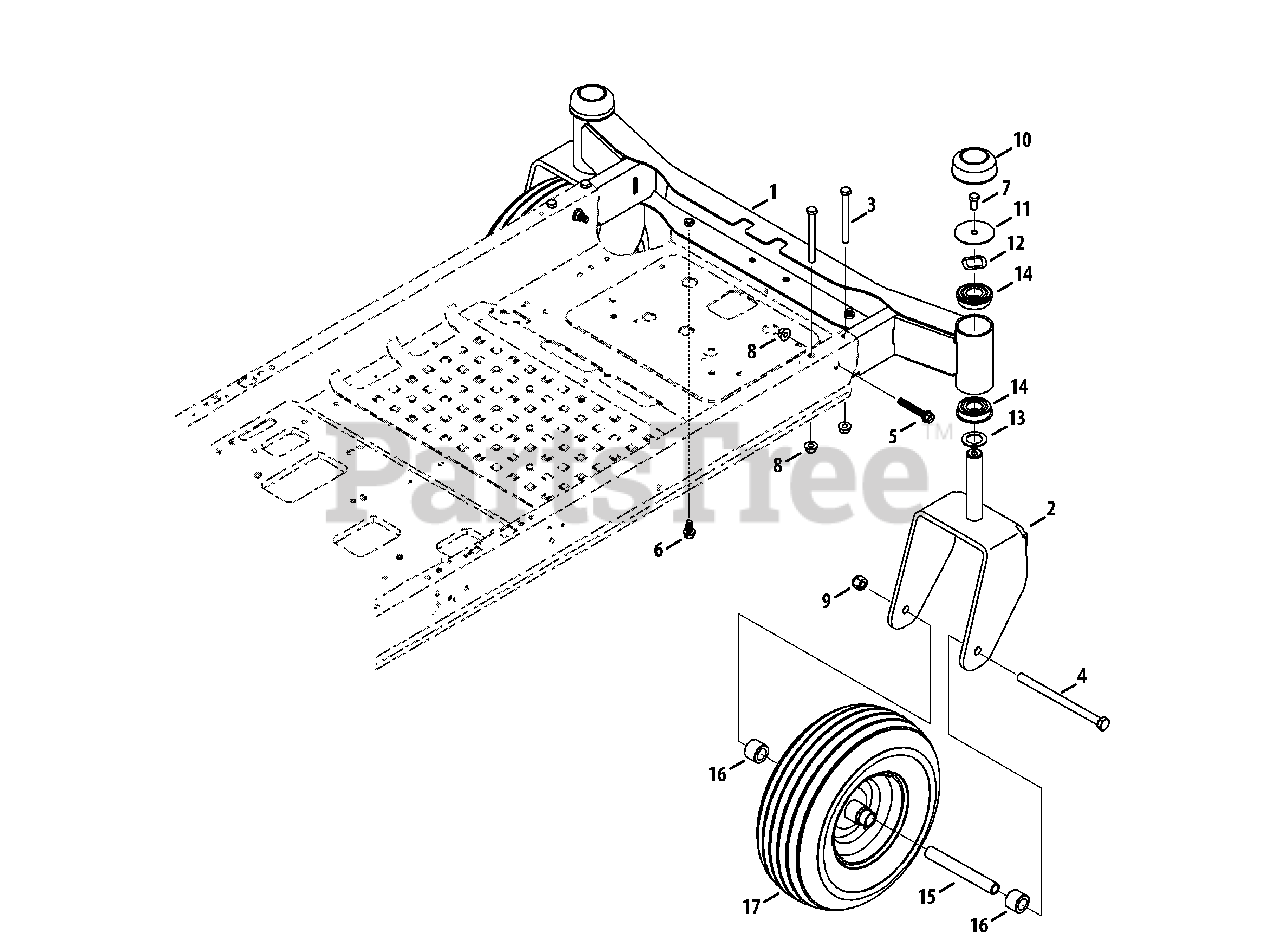

17WFCACP011 - Troy-Bilt Mustang XP 50" Zero-Turn Mower (2013) Front Axle Parts Diagram

Mustang XP 50" Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-05001-0638

Front Axle
(Superseded to 903-05001-0638)

$

$

Not available

2

Troy-Bilt 603-05058A-0638

Caster Wheel Bracket

$119.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04652

Hex cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-06045

Hex Flange Screw, 3/8-16 x 2.25

$5.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 710-0623

Screw TT, 3/8-16 x .750

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

10

Troy-Bilt 731-09347

Cap

$5.99

$

In Stock, Qty 5

0

11

Troy-Bilt 736-05022

Flat Washer, .406 x 2.50 x .060

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-05033

Wave Washer, 1.25 x 1.00 x .300
(Superseded to 736-05033A)

$4.99

$

In Stock, Qty 18

0

13

Troy-Bilt 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 941-05022

Ball Bearing
(Superseded to 941-05022A)

$20.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 634-04711-0911

Wheel Assembly, 13 x 5-6, CARLISLE TIRE
(Superseded to 634-04711A-0916)

$174.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 734-04255A-0901

Tire, Grooved, 13 x 5-6, CARLISLE
(Superseded to 734-04255A-0906)

Note: (not shown)

$82.99

$

In Stock, Qty 6

0

17

Troy-Bilt 634-04711-0916

Wheel Assembly, 13 x 5-6, DELI TIRE
(Superseded to 634-04711A-0916)

$174.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 734-04255A-0906

Tire, Grooved, 13 x 5-6, DELI

Note: (not shown)

$82.99

$

In Stock, Qty 6

0

17

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0
