17WF2ACS211 - Troy-Bilt Colt XP Zero-Turn Mower (2011) Operators Platform Parts Diagram

Colt XP Zero-Turn Mower

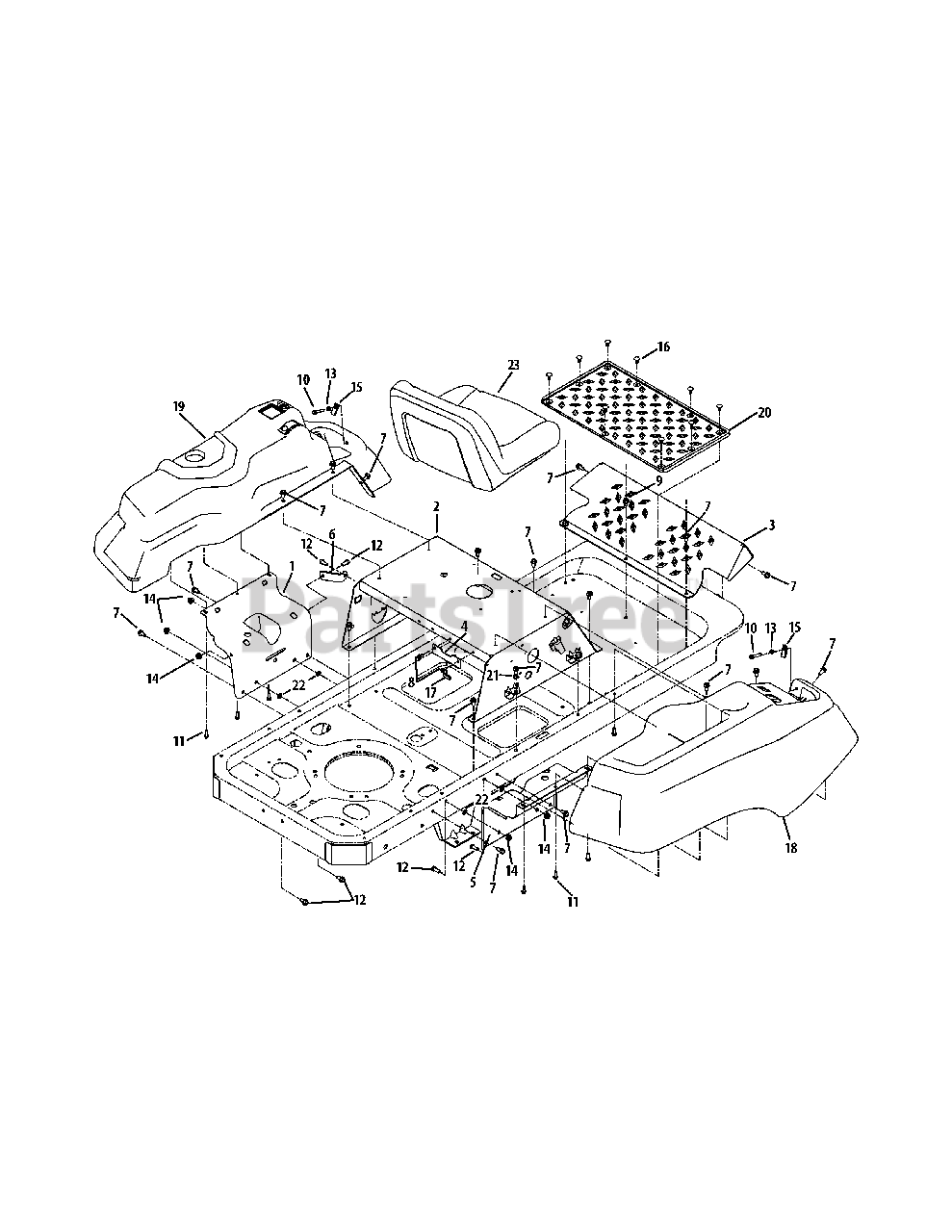

Operators Platform Parts Diagram

  • Title
1

Troy-Bilt 603-04564-4033

Console Bracket Assembly

Note: (If equipped)

$

$

Not available

2

Troy-Bilt 603-04663-4033

Seat Frame Assembly (NLA)

Note: replace with (1) 603-04946-4033 Seat Frame Assembly; (1) 703-08734-4033 Seat Pivot Bracket; (2) 732-04849 Compression Seat Springs.

$

$

Not available

2

Troy-Bilt 603-04946-4033

Seat Frame Assembly

$

$

Not available

2

Troy-Bilt 703-08734-4033

Seat Pivot Bracket

Note: (Not shown)

$

$

Not available

2

Troy-Bilt 732-04849

Compression Seat Spring

Note: (Not shown)

$13.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 703-05373B-4033

Foot Rest Bracket

$

$

Not available

4

Troy-Bilt 703-05894-0637

Battery Hold-Down Bracket

$29.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 703-06451-4033

Console Mount Bracket

Note: (If equipped)

$

$

Not available

6

Troy-Bilt 703-06623-0637

Fuel Tank Support Bracket

Note: (If equipped)

$

$

Not available

7

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

12

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04092

Speed Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 15

0

17

Troy-Bilt 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 731-06233

RH Console

$

$

Not available

19

$117.99

$

Usually ships in 3-6 days

0

20

$50.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 757-04103

High Back Seat
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days

0
