17WF2ACS011 - Troy-Bilt Colt XP Zero-Turn Mower (2012) Mower Deck 42-Inch Parts Diagram

Colt XP Zero-Turn Mower

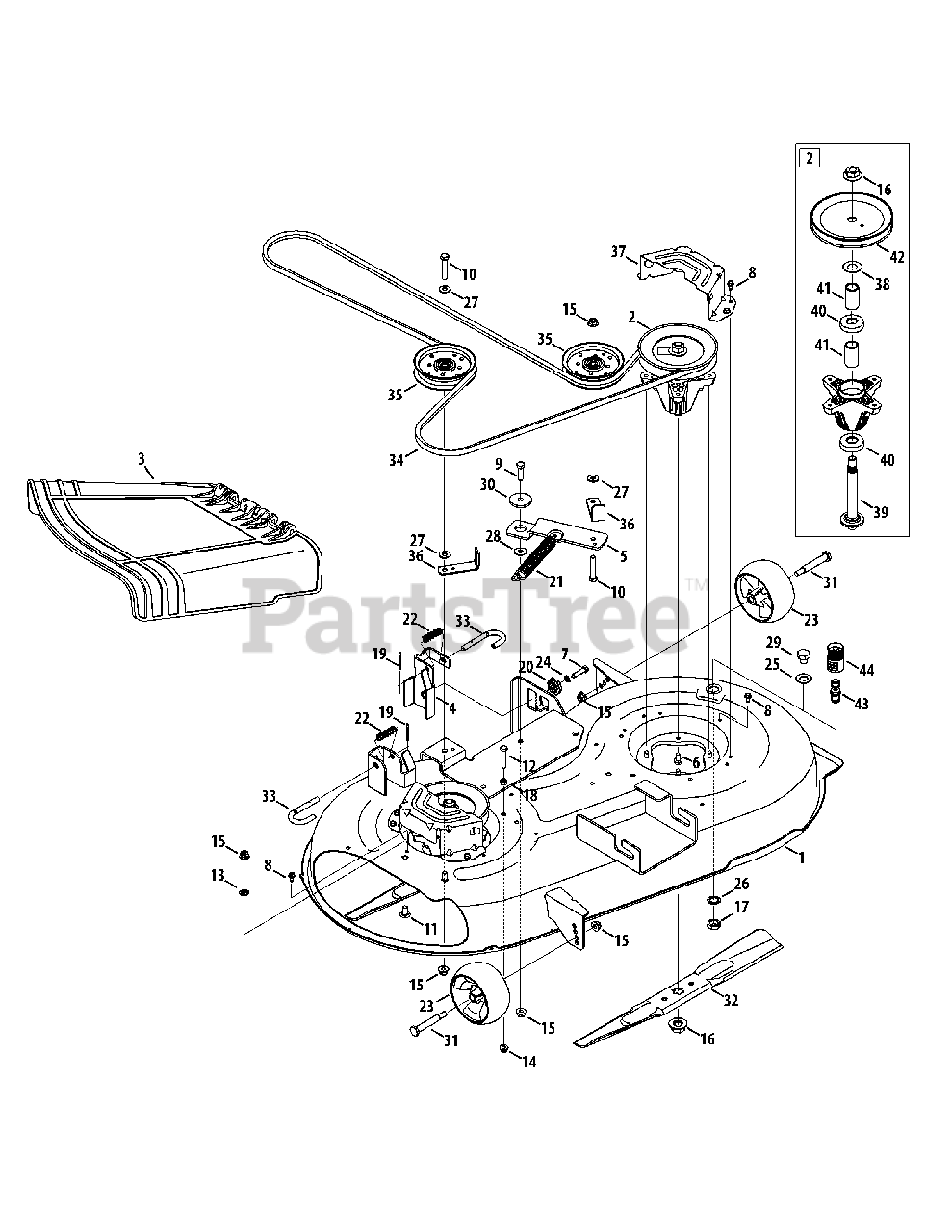

Mower Deck 42-Inch Parts Diagram

  • Title

1

Troy-Bilt 903-04860-4033

Deck Housing
(Superseded to 903-04860A-0637)

$816.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-04822A

Spindle Assembly w/pulley
(Superseded to 918-04822B)

$121.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 631-04288

Discharge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 683-0254B-4033

Deck Lift Bracket
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 703-08336A

Pivot Idler Bracket
(Superseded to 703-08336E)

Variations

Troy-Bilt 703-08336A-0637

Idler Pivot Bracket - POWDER BLACK (0637)

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-08336A-0691

Idler Pivot Bracket - BLACK JACK (0691)

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-08336A-4021

Idler Pivot Bracket - CUB YELLOW 2 (4021)

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-08336A-4033

Idler Pivot Bracket - FLINT MICA (4033)

$31.99

$

In Stock, only 1 left!

0

$31.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-04484

Hex Washer Head Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

10

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

13

Troy-Bilt 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 10

0

15

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

18

Troy-Bilt 912-3010

Hex Nut, 5/8-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 17

0

21

Troy-Bilt 732-0459C

Extension Spring, .94 Dia. x 6.74

$18.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0225

Internal Tooth Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 11

0

28

Troy-Bilt 936-0344

Flat Washer, .385 x 1.00 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-04146

Bolt, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 738-04162A

Shoulder Spacer, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 942-04308

Blade, 2 in 1, 21.23
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 7

0

34

Troy-Bilt 954-04137A

V-Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 783-06368A-0637

Bracket, Belt Guard

$21.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-06424A-4033

Belt Cover
(Superseded to 783-06424A-0637)

$10.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

40

Troy-Bilt 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 956-1227

Deck Pulley

$26.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

44

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0
