17WF2ACS011 - Troy-Bilt Colt XP Zero-Turn Mower (2012) Engine Connection Colt XP Parts Diagram

Colt XP Zero-Turn Mower

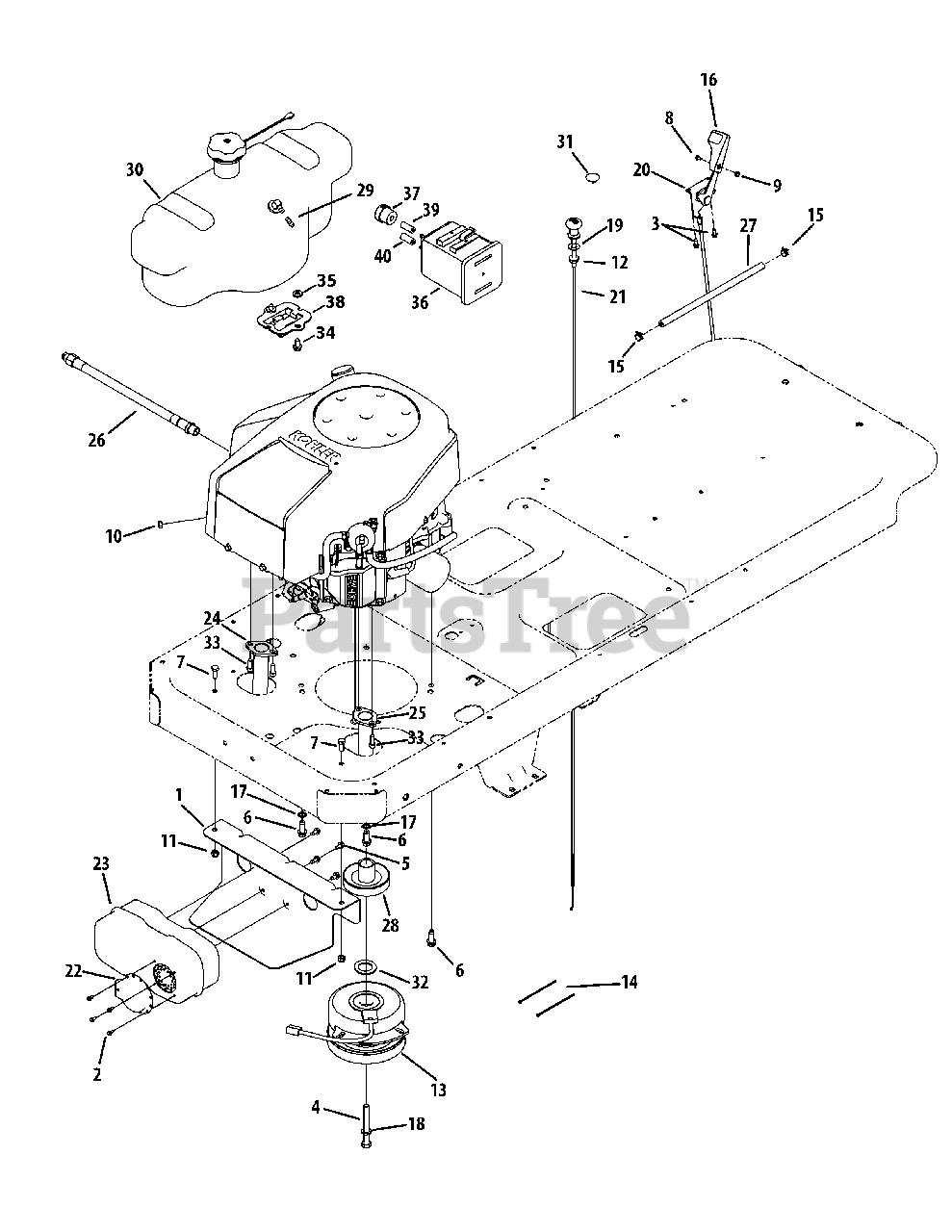

Engine Connection Colt XP Parts Diagram

  • Title

1

Troy-Bilt 703-05441A

Muffler Mount Bracket

$52.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 8

0

4

Troy-Bilt 710-3157A

Hex Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04683

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-3008

Hex Washer Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

9

Troy-Bilt 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

10

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

Note: If Equipped

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 917-04376A

Electric PTO Clutch

$525.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

19

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 746-04539

Throttle/Choke Control Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 946-04214

Choke Cable

Note: If Equipped

$47.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 751-11053

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

24

Troy-Bilt 751-10253

Exhaust Pipe, LH

$72.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 751-10254

Exhaust Pipe, RH

$94.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 751-10291A

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 756-04376

Engine Pulley

$44.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 951-04209B

Fuel Tank Assembly
(Superseded to 951-05138)

$

$

Not available

30

Troy-Bilt 935-0149

Fuel Tank Bushing

Note: Not shown

$2.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 735-04081

Rubber Grommet

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 751-10442

Fuel Pick-Up Fitting

Note: Not shown

$32.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 951-12428

Fuel Cap

Note: Not shown

$43.99

$

In Stock, Qty 15

0

30

Troy-Bilt 751-12118

Rollover Valve

Note: Not shown

$35.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 731-1999

Choke Plug

Note: If Equipped

$10.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-0277

Flat Washer, 1.03 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-1238

Screw 5/16-18 x .875
(Superseded to 710-1238A)

Note: Equipped with CARB Fuel Tank

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 936-3008

Washer, Flat, .344 x .750 x .120

Note: Equipped with CARB Fuel Tank

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 951-10589

Canister, Carbon, 5 Gallon

Note: Equipped with CARB Fuel Tank

$72.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 951-10590

Filter, Vent, Canister

Note: Equipped with CARB Fuel Tank

$15.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 951-10610

Bracket., Adapter, Canister

Note: Equipped with CARB Fuel Tank

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 751-10749

Hose, Fuel, Low Perm., White

Note: Equipped with CARB Fuel Tank

$0.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 751-10750

Hose, Fuel, Low Perm., Yellow

Note: Equipped with CARB Fuel Tank

$1.49

$

Usually ships in 3-6 days

0
