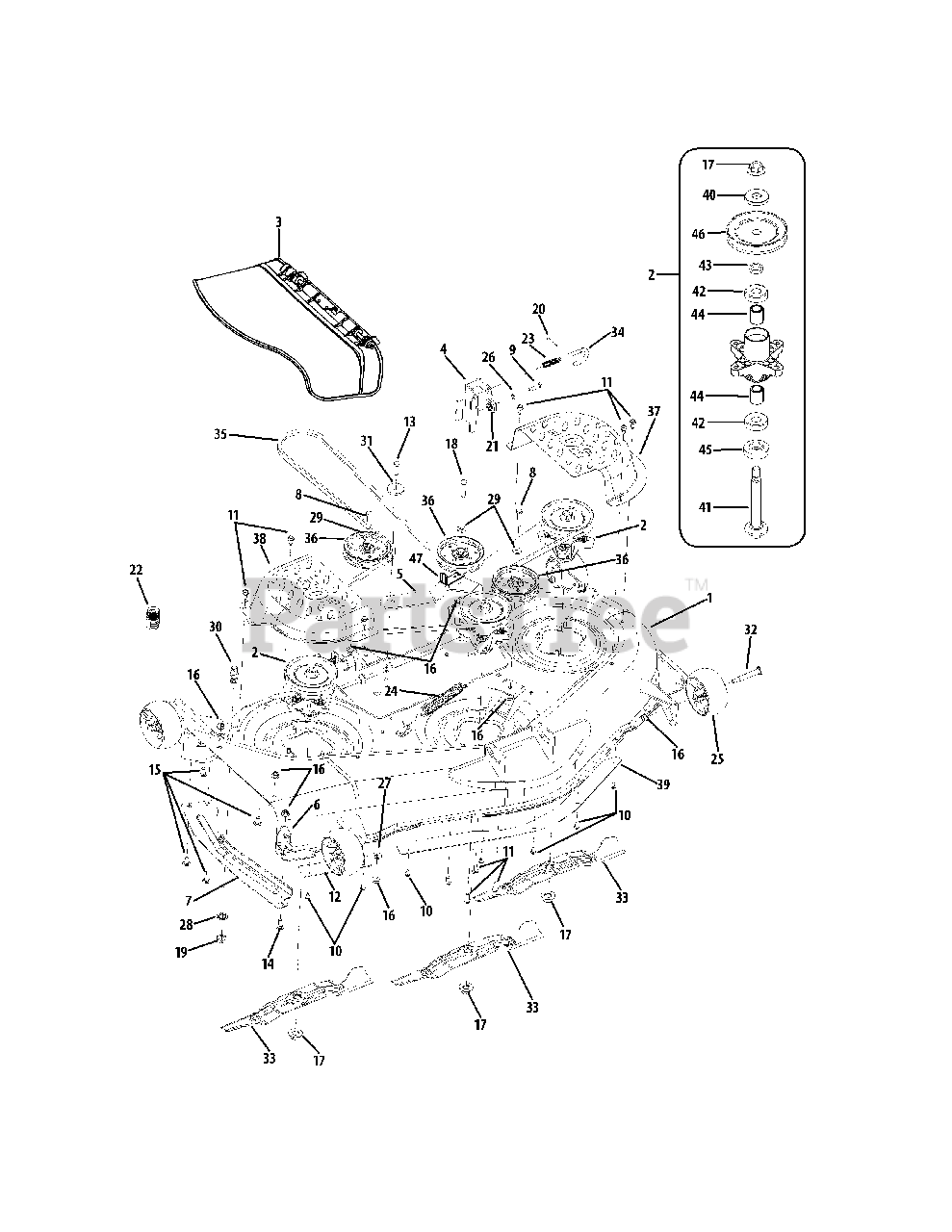

17WF2ACP211 - Troy-Bilt Mustang XP Zero-Turn Mower (2011) Mower Deck 50-Inch Parts Diagram

Mustang XP Zero-Turn Mower

Mower Deck 50-Inch Parts Diagram

  • Title

1

Troy-Bilt 903-04328A-4033

Deck Housing
(Superseded to 903-04328C-4033)

$1128.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-04125B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 631-04070A

Discharge Chute Assembly (U.S.)
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 683-0254B-4033

Deck Hanger Bracket
(Superseded to 683-06474-0637)

$36.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-05825C-4033

Idler Arm
(Superseded to 703-05825C-0637)

$54.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 703-3279-4033

Stop Bracket
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-04484

Hex Washer Head Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 783-04415-4033

RH Skirt
(Superseded to 783-04415-0637)

$30.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-04095

Hex Screw, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04065

Hex Insert Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

22

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 732-04609

Extension Spring, .94 x 6.74

$16.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

28

Troy-Bilt 736-0225

Internal Tooth Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 736-3072

Flat Washer, .38 x .93 x .110

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 737-04003D

Deck Wash Nozzle

$23.99

$

In Stock, Qty 6

0

31

Troy-Bilt 738-04162A

Shoulder Spacer, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 942-04053C

Blade, 2 in 1, 17.9

$28.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 6

0

35

Troy-Bilt 954-04044A

V-Belt Type A Sec x 134

$63.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-04129B

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-04399-4033

Belt Cover, LH
(Superseded to 783-04399-0637)

$95.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 783-04400-4033

Belt Cover, RH
(Superseded to 783-04400)

$95.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-04414A

Center Skirt (U.S.)

Variations

Troy-Bilt 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$35.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 736-0315

Flat Washer, .76 x 1.50 x .12

$6.99

$

In Stock, Qty 6

0

41

Troy-Bilt 738-1010A

Spindle Shaft, 5.75

$46.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 941-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 748-0160A

Spacer, .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

44

Troy-Bilt 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 7

0

45

Troy-Bilt 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 756-04216

V-Type Pulley, 5.39

$33.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 783-06368A-0637

Bracket, Belt Guard

$21.99

$

In Stock, Qty 20+

0
