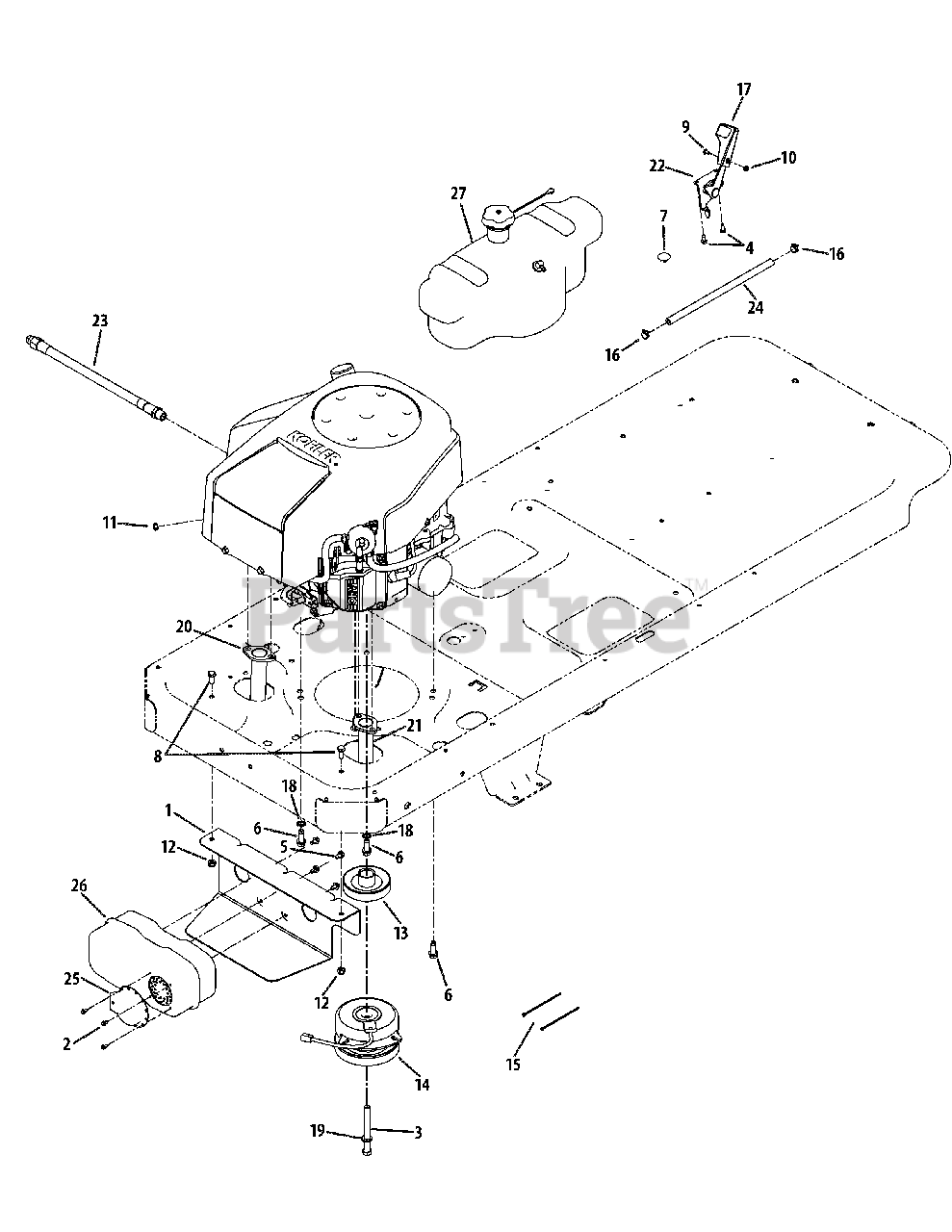

17WF2ACP211 - Troy-Bilt Mustang XP Zero-Turn Mower (2010) Engine Connections Parts Diagram

Mustang XP Zero-Turn Mower

Engine Connections Parts Diagram

  • Title
1

Troy-Bilt 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0227

Hex Washer Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-04379A

Hex Screw, 7/16-20 x 3.50

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04261

Hex Washer Screw, #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04683

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Troy-Bilt 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

12

Troy-Bilt 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

$44.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 917-04552

Electric PTO Clutch

$531.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 726-0197

Clutch Wire Tie

$3.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

17

Troy-Bilt 731-04914

Throttle Control

$13.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

20

Troy-Bilt 751-10253

Exhaust Pipe, LH

$72.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 751-10254

Exhaust Pipe, RH

$94.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 746-04539

Throttle/Choke Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 751-10291

Oil Drain Extension Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

26

Troy-Bilt 751-0616B

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

27

N/A

Fuel Tank Assembly

$

$

Not available

27

Troy-Bilt 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 751-10442

Fuel Pick-Up Fitting

$32.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 751-10692

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

27

Troy-Bilt 751-10703A

Fuel Cap
(Superseded to 951-12428)

$43.99

$

In Stock, Qty 15

0
