Mustang XP Zero-Turn Mower

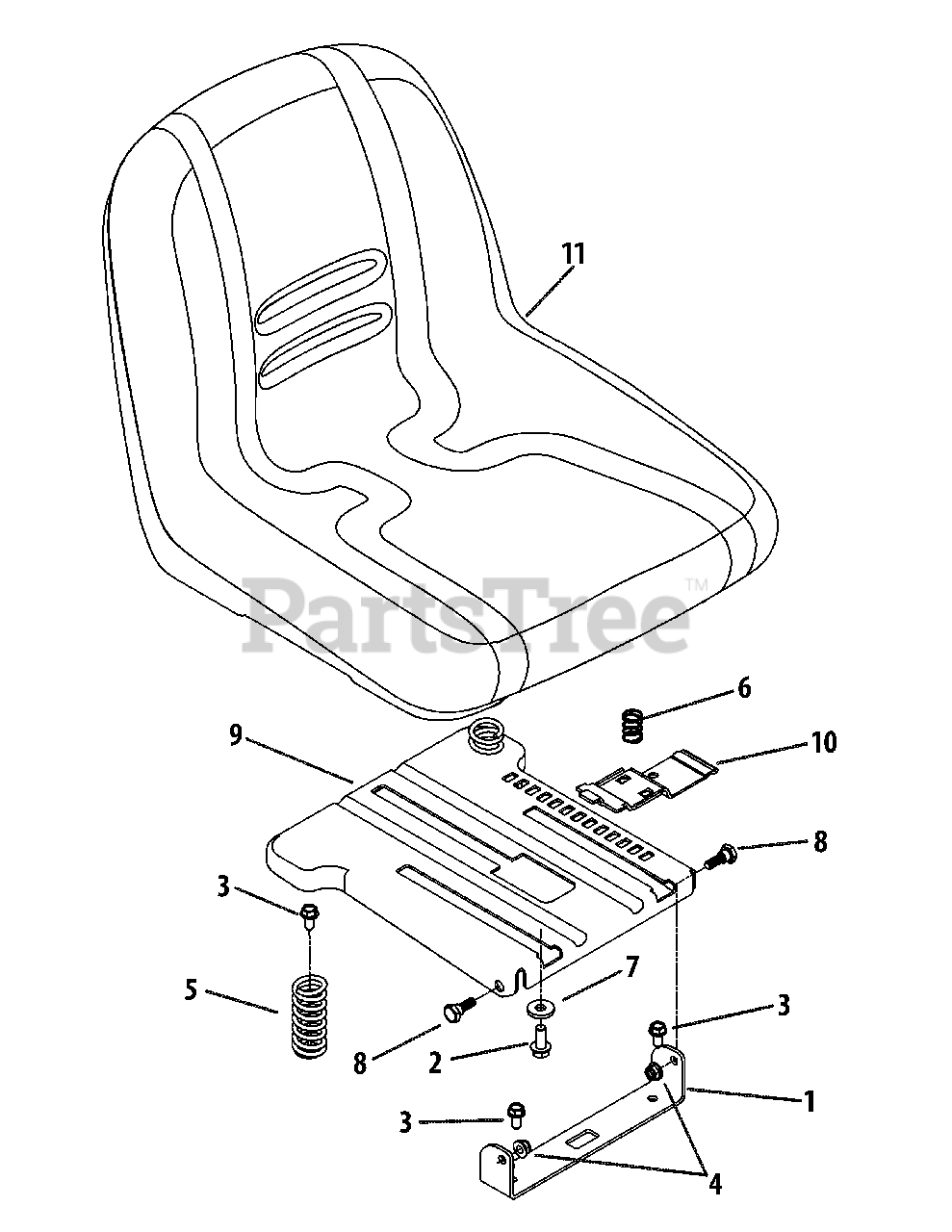

Seat Adjustment Parts Diagram

  • Title

1

Troy-Bilt 703-06941-4033

Seat Bracket

$

$

Not available

2

Troy-Bilt 710-04482

Hex Flange Bolt, 3/8-16 x .875

Note: Seat stop bolt, one used as shown.

$4.49

$

In Stock, Qty 14

0

3

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 10

0

5

Troy-Bilt 732-04035

Compression Spring

$10.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 732-04563

Compression Spring

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 783-06049-4033

Seat Mount Bracket

$63.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 757-04103

High Back Seat
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days
