17BE2ACG211 - Troy-Bilt Colt XP Zero-Turn Mower (2009) Seat Adjustment Parts Diagram
Colt XP Zero-Turn Mower

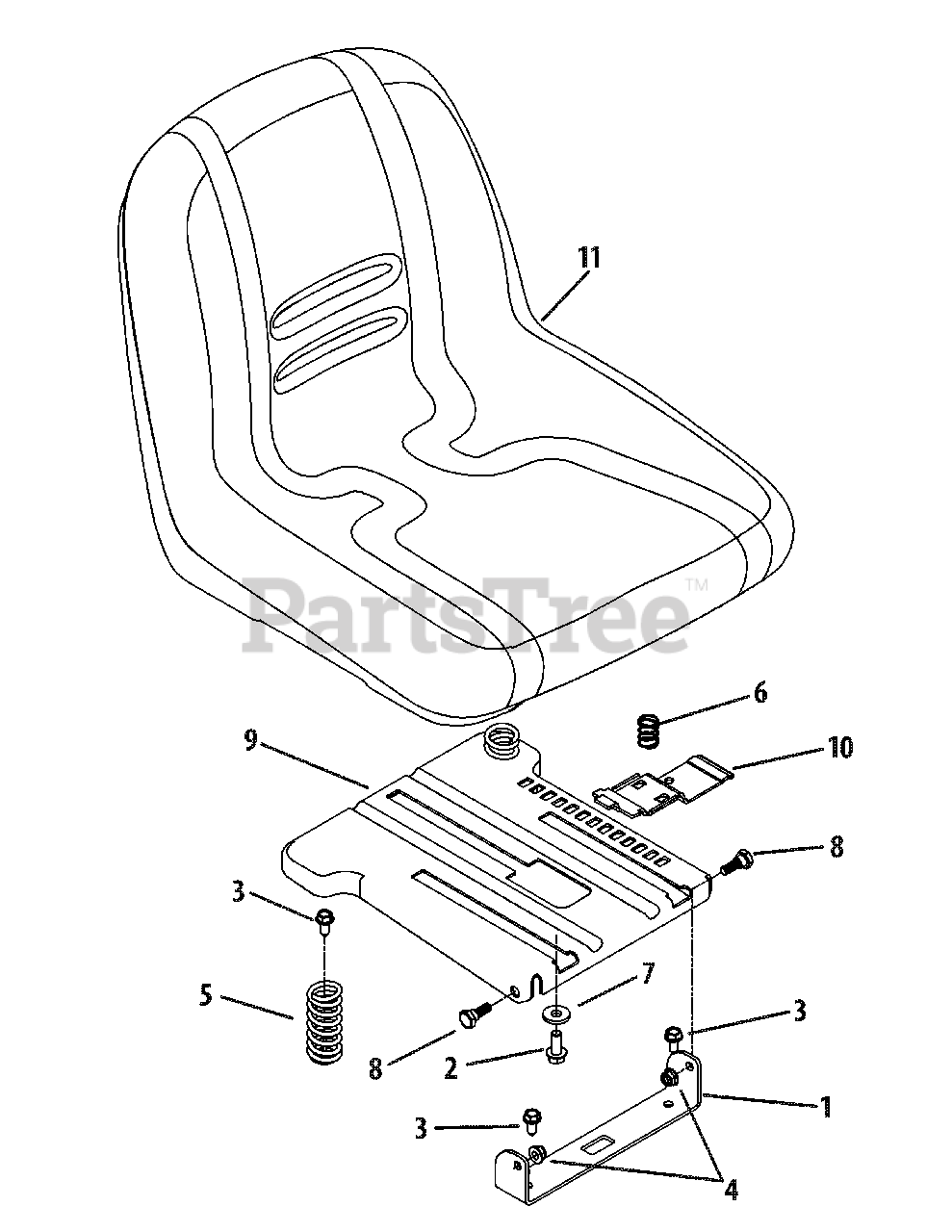

Seat Adjustment Parts Diagram
Troy-Bilt 703-06941-0638
Seat Bracket
$
$
Not available
Troy-Bilt 710-04482
Hex Flange Bolt, 3/8-16 x .875
$4.49
$
In Stock, Qty 14
Troy-Bilt 710-04484
Hex Washer Screw, 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
Troy-Bilt 712-04063
Flange Lock Nut, 5/16-18
$3.99
$
In Stock, Qty 10
Troy-Bilt 732-04035
Compression Spring
$10.99
$
In Stock, only 4 left!
Troy-Bilt 732-04563
Compression Spring
$5.49
$
In Stock, Qty 20+
Troy-Bilt 736-0258
Flat Washer, .385 x 1.0 x .135
$4.49
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
Troy-Bilt 783-06049-0638
Seat Mount Bracket
$63.99
$
Usually ships in 3-6 days
Troy-Bilt 783-06050
Seat Adjustment Lever
$10.99
$
In Stock, only 1 left!
$285.99
$
Usually ships in 3-6 days
