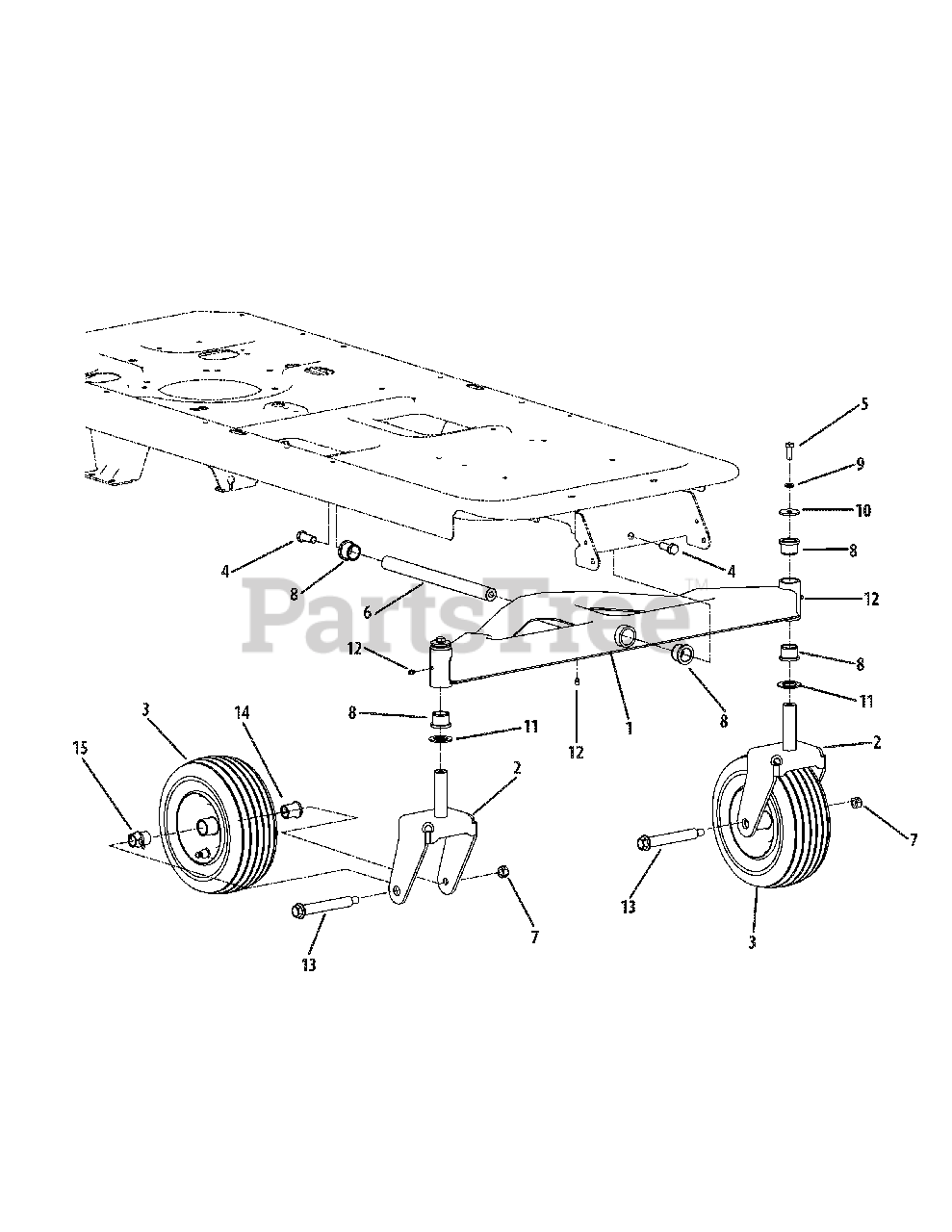

17BE2ACG211 - Troy-Bilt Colt XP Zero-Turn Mower (2009) Front Axle Parts Diagram

Colt XP Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-04148C-0638

Front Pivot Axle

$425.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04308-0638

Castor Wheel Bracket
(Superseded to 603-04308A-0638)

$98.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 634-04237A

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04237C)

$162.99

$

In Stock, Qty 6

0

3

Troy-Bilt 934-0255

Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04186

Hex Lock Screw, 1/2-13 x 1.25

$7.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0

8

Troy-Bilt 731-05500

Flange Bearing, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

11

Troy-Bilt 736-0250

Flat Washer, 1.0 x 1.75 x .107

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 937-3000

Lube Fitting, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 738-04182A

Shoulder Screw, 7/16-14 x .75 x 4.75
(Superseded to 738-04182B)

$26.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 741-0516B

Flange Bearing, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 741-0990B

Flange Bearing, .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0
