17ARCBDW309 - Troy-Bilt Mustang XP Pivot S 54" Zero-Turn Mower (2020) Seat Adjustment Parts Diagram

Mustang XP Pivot S 54" Zero-Turn Mower

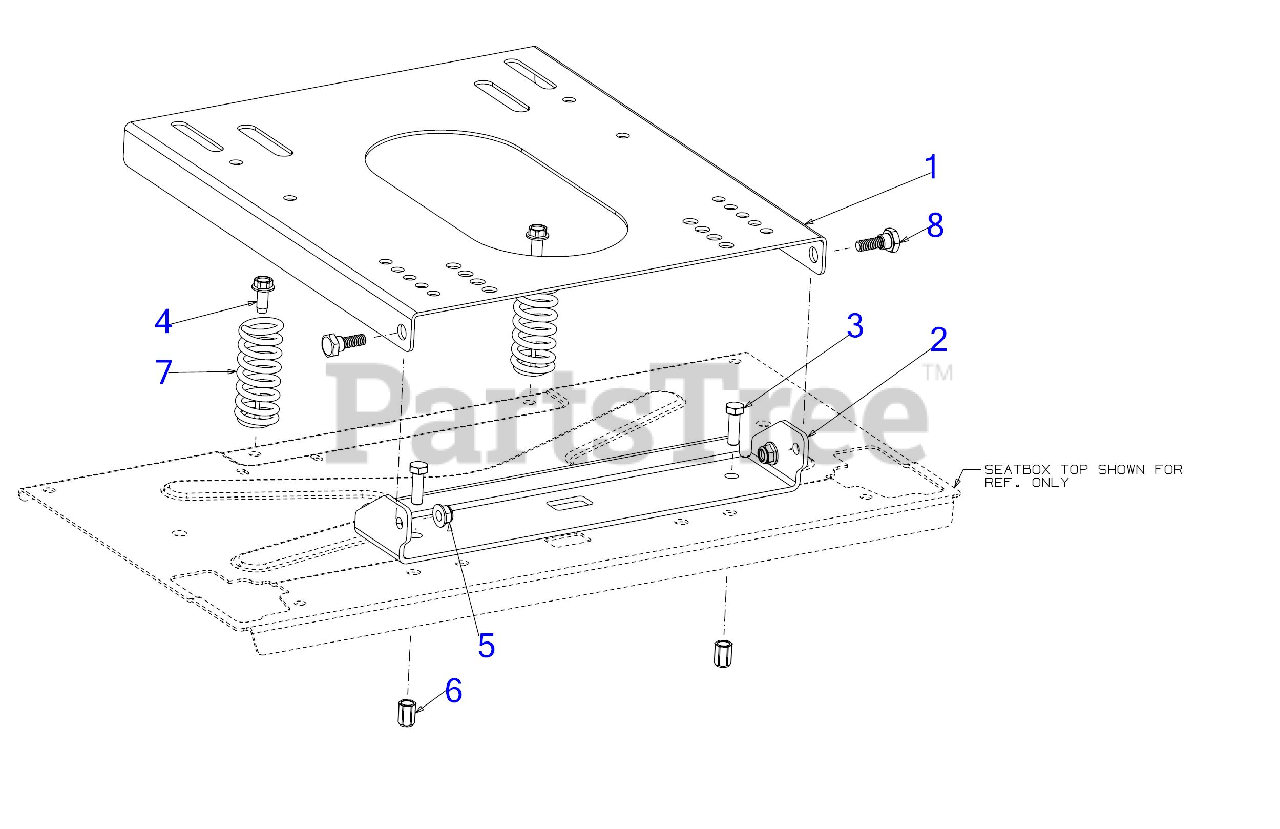

Seat Adjustment Parts Diagram

  • Title
1

MTD 703-09603A

SEAT BASE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09603A-0637

Seat Plate Base - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 703-09603A-0606

BASE-SEAT PLATE - MAJESTIC ORANGE (0606)

$78.99

$

Usually ships in 3-6 days

0

MTD 703-09603A-0638

BASE-SEAT PLATE - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

MTD 703-09603A-0691

BASE-SEAT PLATE DU - BLACK JACK (0691)

$84.99

$

Usually ships in 3-6 days

0

MTD 703-09603A-4033

BASE-SEAT PLATE DU - FLINT MICA (4033)

$78.99

$

Usually ships in 3-6 days

0

MTD 703-09603A-4044

BASE-SEAT PLATE - CRAFTSMAN RED (4044)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

2

MTD 703-09633

SEAT PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09633-0606

BRKT-SEAT PIVOT - MAJESTIC ORANGE (0606)

$29.99

$

Usually ships in 3-6 days

0

MTD 703-09633-0637

BRACKET-SEAT PIVOT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

MTD 703-09633-0638

BRKT-SEAT PIVOT - MTD/TROY-BILT RED (0638)

$29.99

$

Usually ships in 3-6 days

0

MTD 703-09633-0691

BRACKET-SEAT PIVOT - BLACK JACK (0691)

$29.99

$

Usually ships in 3-6 days

0

MTD 703-09633-4033

BRKT-SEAT PIVOT - FLINT MICA (4033)

$29.99

$

Usually ships in 3-6 days

0

MTD 703-09633-4044

BRKT-SEAT PIVOT - CRAFTSMAN RED (4044)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

3

MTD 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

6

MTD 728-04068

NUT RIVET 5/16-18

$4.49

$

Usually ships in 3-6 days

0

7

MTD 732-04035

COMPRESSION SPRING

$10.99

$

In Stock, only 4 left!

0

8

MTD 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0
